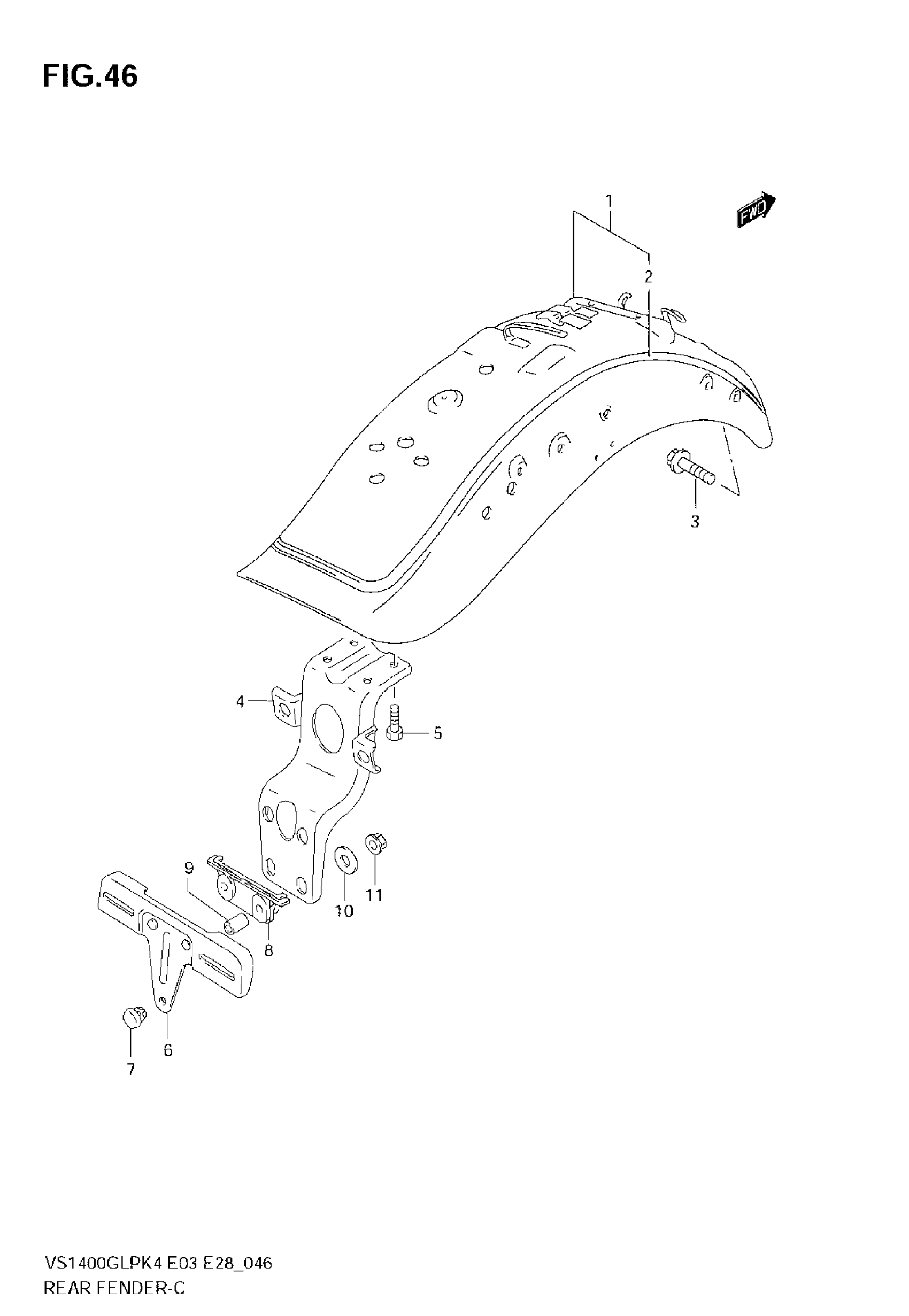

Suzuki VS1400 (2008) REAR FENDER (MODEL K4) Diagram

#

Description

Price

1

FENDER, REAR

63100-38B60-NZ1

Unavailable

1

FENDER, REAR | Includes Item(s) 2 - 2

63100-38B60-NZ2

Unavailable

2

TAPE SET | FOR NZ1

68170-38B20-AHN

Unavailable

2

TAPE SET | FOR NZ2

68170-38B20-AHM

Unavailable

3

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

4

BRACKET, LAMP

63460-38B00

$104.18

5

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

6

PLATE, LICENSE This part replaces 63463-38B00.

63463-38B10

$45.38

7

CUSHION This part replaces 09321-08005.

09321-08025

$2.38

8

CUSHION, PLATE

63464-38B00

$17.23

9

SPACER

09180-05050

$4.68

10

WASHER

09160-05501

$1.84

11

NUT This part replaces 08316-20053.

08316-2005A

$2.19
