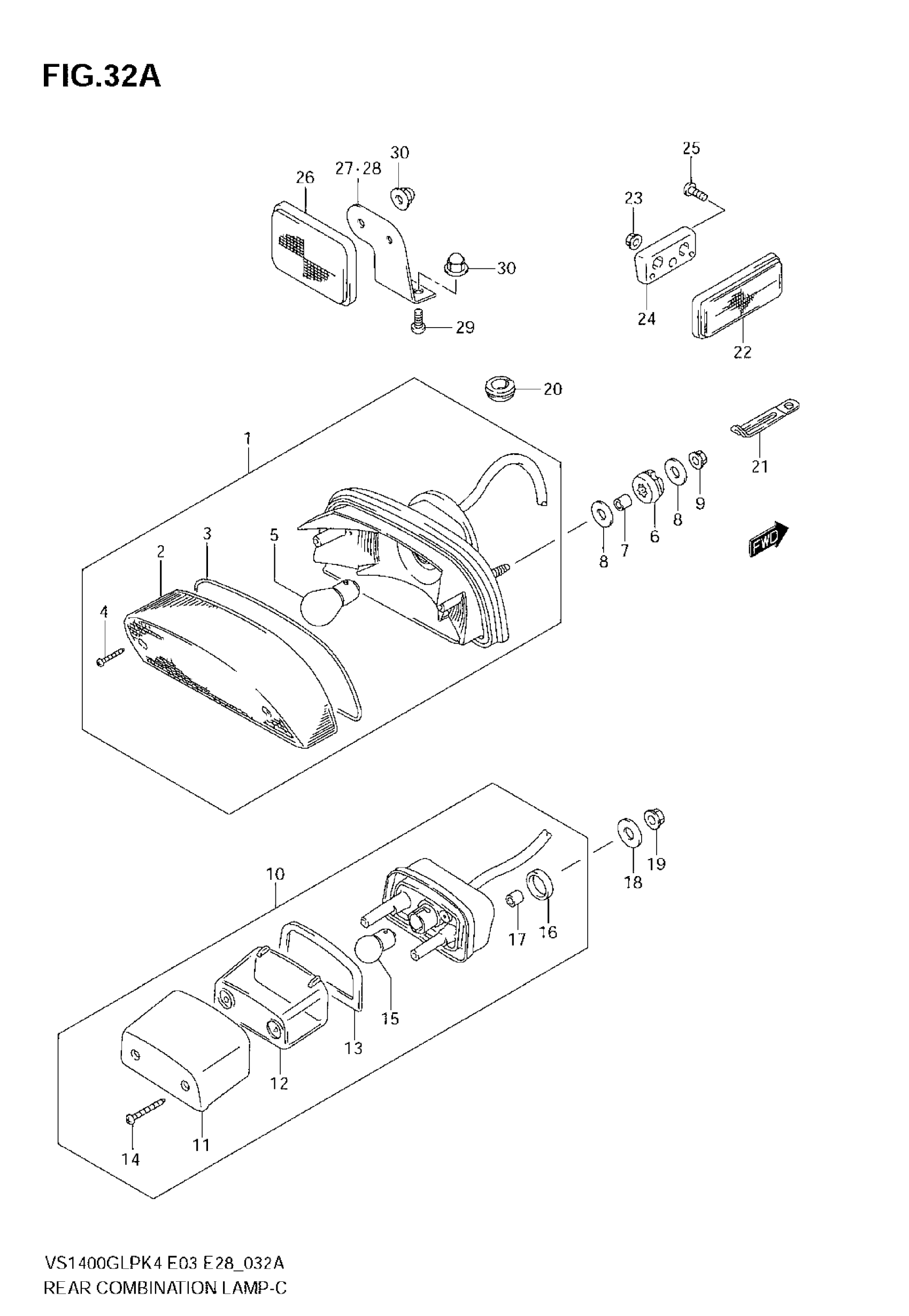

Suzuki VS1400 (2008) REAR COMBINATION LAMP (VS1400K5/K6/K7/K8) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-38B30

$94.37

2

LENS

35712-38B30

$35.40

3

GASKET

35713-38B30

$7.37

4

SCREW

03511-0416A

$1.78

5

BULB (12V,27/8W)

09471-12129

$13.02

6

CUSHION

09320-09018

$2.44

7

SPACER (6.5X9X10.5)

09180-06264

$2.23

8

WASHER (6.5X20X1.2)

09160-06077

$1.91

9

NUT

08316-2006B

Unavailable

10

LAMP ASSY, LICENSE | MODEL K5/K6

35910-38B30

Unavailable

10

LAMP ASSY, LICENSE | MODEL K7/K8; Includes Item(s) 11 - 17

35910-38B40

Unavailable

11

COVER

35917-38B30

Unavailable

12

LENS

35912-38B30

Unavailable

13

GASKET

35913-38B30

Unavailable

14

SCREW

03211-04207

$1.49

15

BULB (12V,7.5W)

09471-12130

Unavailable

16

CUSHION

35762-38B30

Unavailable

17

SPACER

35766-38B30

Unavailable

18

WASHER (6.5X20X1.2)

09160-06077

$1.91

19

NUT

08316-2006B

Unavailable

20

GROMMET, LEAD WIRE

09308-12009

Unavailable

21

CLAMP, LEAD WIRE (L:45)

09404-06429

$1.83

22

REFLEX REFLECTOR, REAR SIDE

35970-24D60

$25.98

23

NUT

08316-1005B

$2.50

24

SPACER

35977-38B12

$5.82

25

SCREW

03511-0512B

$2.26

26

REFLEX REFLECTOR, REAR

35970-38E00

$47.57

27

BRACKET, REAR RR, RH

35974-38B10

Unavailable

28

BRACKET, REAR RR, LH

35974-38B20

Unavailable

29

SCREW

02142-05107

$1.49

30

NUT

08313-20057

$2.80
