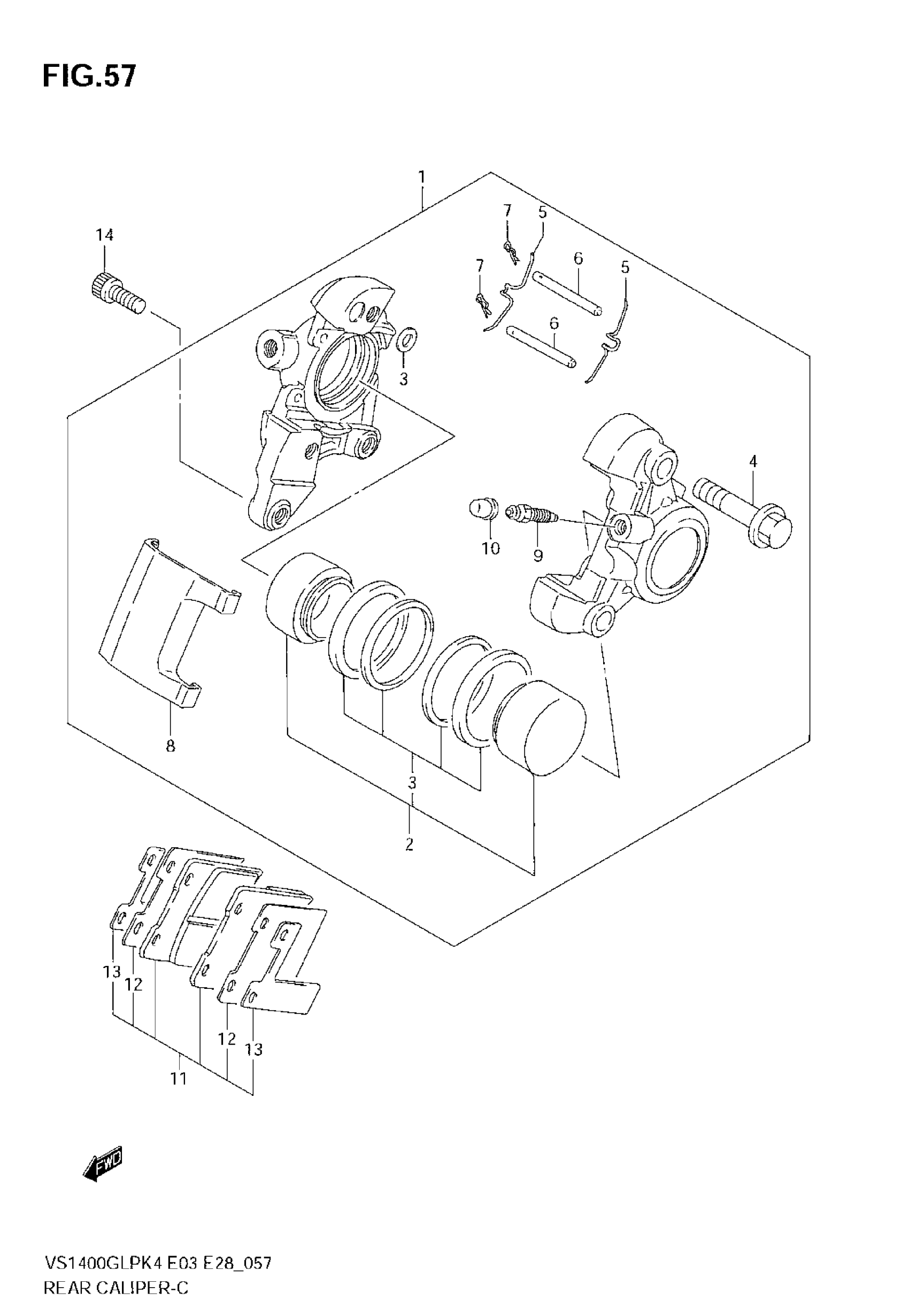

Suzuki VS1400 (2008) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 10

69100-38B50-999

$362.18

2

PISTON SET

69100-38851

$104.85

3

SEAL SET, PISTON

69100-38831

$27.85

4

BOLT

59145-16700

$8.83

5

SPRING

59143-16700

$5.80

6

PIN

69141-45000

$5.17

7

.CLIP, PAD PIN

69142-45000

$4.34

8

COVER

59151-24A01

$28.62

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

PAD & SHIM SET | Includes Item(s) 12 - 13

69100-38880

$61.67

12

SHIM

59371-33410

$12.57

13

SHIM

59371-33420

$15.13

14

BOLT This part replaces 07130-10203.

07130-1020B

$4.60
