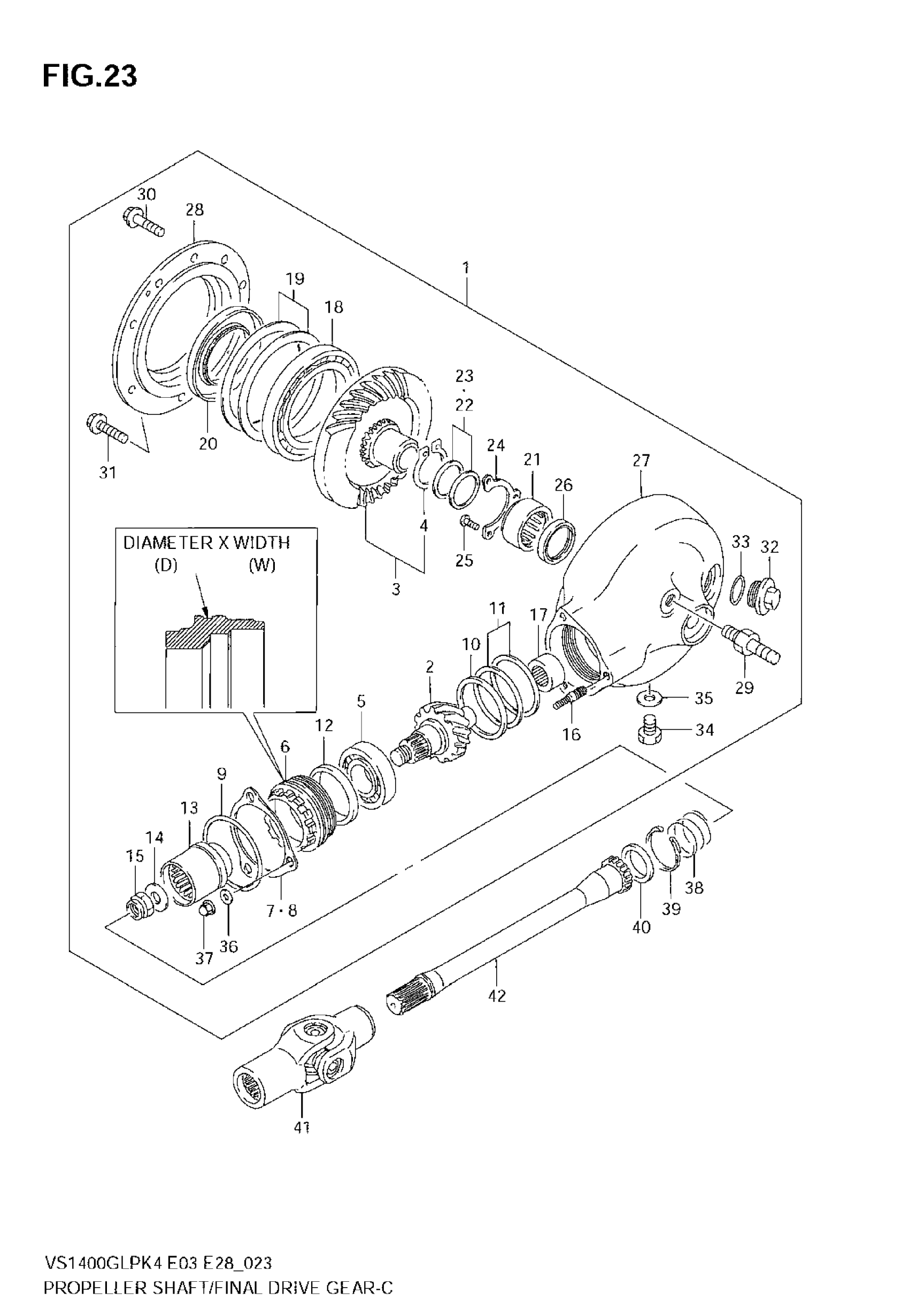

Suzuki VS1400 (2008) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

1

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 2 - 37

27300-38845

Unavailable

2

GEAR, FINAL DRIVE BEVEL | NT:12

27311-24A03

Unavailable

3

GEAR, FINAL DRIVEN BEVEL | NT:32

27320-38B00

Unavailable

4

CIRCLIP

08331-31526

Unavailable

5

BEARING (28X68X18)

09262-28023

$127.87

6

STOPPER, BEARING

27312-24A02

$74.08

7

PLATE, STOPPER

27313-38B00

$7.37

8

PLATE, STOPPER

27313-38B10

$7.37

9

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

10

WASHER

09160-54001

Unavailable

11

.SHIM SET,FINAL DRIVE GEAR (T | T:0.3/0.35/0.4/0.5/0.6

27445-24810

$28.18

12

OIL SEAL (47X58X7)

09283-47002

$17.18

13

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

14

WASHER (16X29X4)

09160-16029

$6.35

15

NUT

09159-16003

$4.00

16

STUD BOLT

09108-10095

$5.72

17

BEARING (20X34X18)

09263-20062

$46.98

18

BEARING, RH

09262-85001

$202.27

19

SHIM SET, FINAL DRIVEN GEAR | T:0.35/0.4/0.5/0.6

27327-38810

$108.97

20

OIL SEAL

09289-70002

$62.05

21

BEARING, LH

09263-35004

$73.18

22

SHIM (T:0.95)

09160-35008

$4.92

23

SHIM SET, FINAL DRIVEN GEAR | T:1.05/1.1/1.2/1.25/ 1.35/1.4/1.5

27326-45811

Unavailable

24

HOLDER, BEARING

27329-45100

Unavailable

25

SCREW (6X12)

09125-06110

$2.12

26

OIL SEAL

09283-35033

$14.73

27

CASE, FINAL GEAR

27450-38B01

Unavailable

28

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

29

STUD BOLT

27481-38A01

$12.47

30

BOLT

01550-0825A

$2.32

31

BOLT (10X20)

01550-1025A

$3.05

32

PLUG, OIL FILLER

09259-30007

$18.39

33

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

34

PLUG (MAGNETO)

09247-14002

$5.24

35

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

36

WASHER

09164-10008

$1.71

37

NUT

09159-10026

$6.20

38

SPRING

09440-30008

$3.72

39

CIRCLIP

09381-40003

$4.64

40

OIL SEAL

09283-30026

$10.40

41

YOKE,UNIVERSAL This part replaces 27100-38B00.

27100-38B01

$348.15

42

SHAFT, PROPELLER

27151-38B00

$229.75
