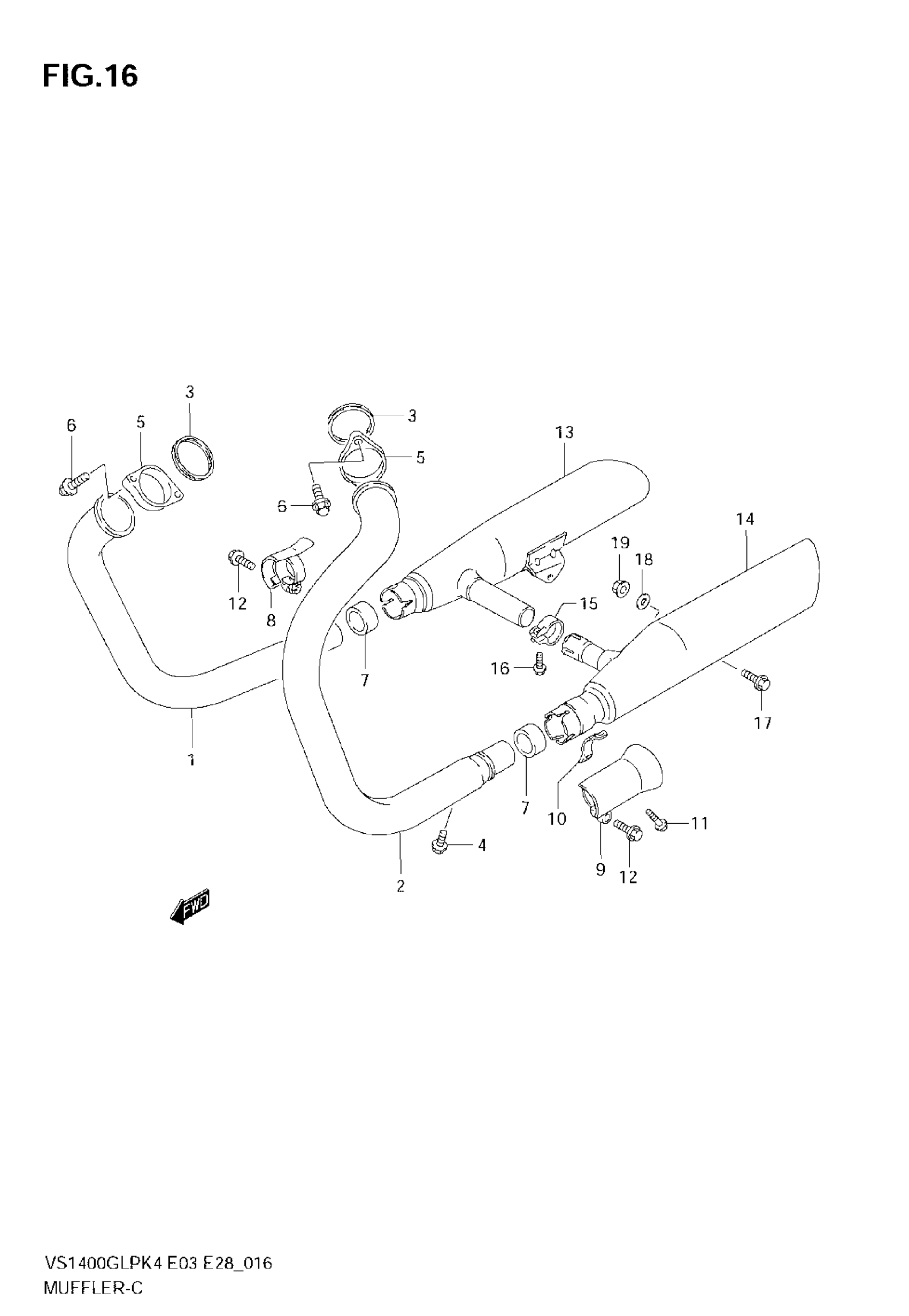

Suzuki VS1400 (2008) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-38B21

Unavailable

2

PIPE, EXHAUST LH

14160-38B21

Unavailable

3

GASKET, EXHAUST PIPE

14181-45C00

$7.38

4

BOLT, EXHAUST DRAIN

01547-06127

$1.65

5

CLAMP, EXHAUST PIPE

14182-38A02

$42.45

6

BOLT (8X35)

09104-08026

$3.76

7

CONNECTOR, MUFFLER

14771-46E00

$18.68

8

CLAMP, MUFFLER CONNECTOR RH

14450-38B02

$68.22

9

CLAMP, MUFFLER CONNECTOR LH

14460-38B02

$78.77

10

CLAMP, MUFFLER CONNECTOR LH

14785-24A00

$8.52

11

BOLT | MODEL K4

01547-06207

$2.01

11

BOLT (6X20) | MODEL K5/K6/K7/K8

09103-06223

$2.47

12

BOLT (8X35)

09103-08241

$5.00

13

MUFFLER, RH

14310-38B40-H01

Unavailable

14

MUFFLER, LH

14340-38B40-H01

Unavailable

15

CLAMP, EXHAUST COUPLER

14772-38B00

$9.37

16

BOLT

01550-0625B

$2.42

17

BOLT

01550-08307

$3.54

18

WASHER (8.5X26X1.6)

09160-08134

$2.03

19

NUT

08319-3108B

$2.73
