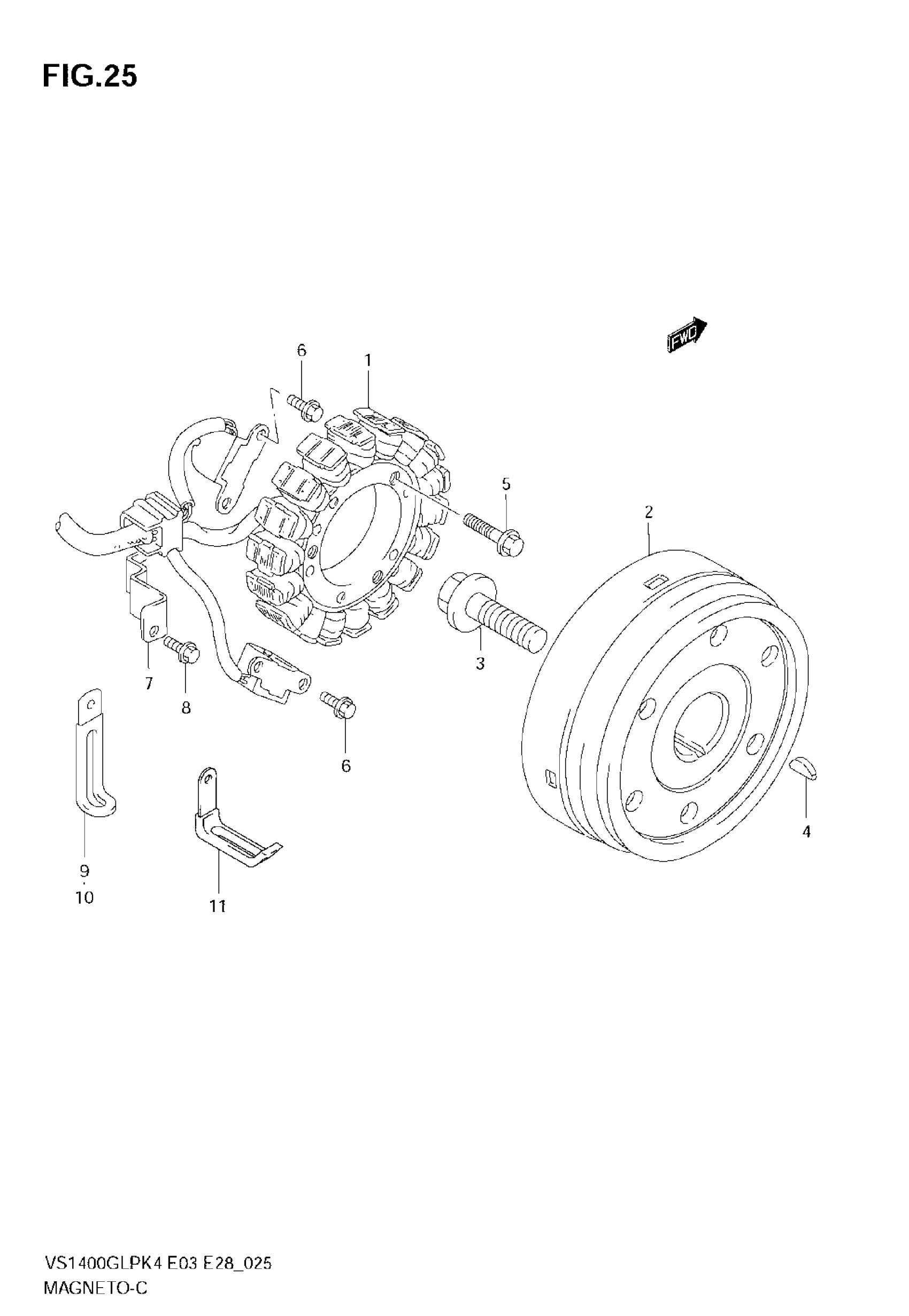

Suzuki VS1400 (2008) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY This part replaces 32101-38B02.

32101-38B03

$680.77

2

ROTOR

32102-38B10

Unavailable

3

BOLT, ROTOR

09103-14001

$11.82

4

KEY

09420-05007

$4.60

5

BOLT, STATOR

01547-0630B

$2.73

6

BOLT

01547-0510B

$2.97

7

CLAMP, LEAD WIRE

32371-45C00

$4.58

8

BOLT

01547-0510B

$2.97

9

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

10

CLAMP (L:60)

09404-06429

$1.83

11

CLAMP This part replaces 09404-06606.

09404-06039

$1.74
