Description

Price

1

HANDLEBAR

56111-38E00

Unavailable

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 7

56200-48831

$88.55

3

SCREW (6X110)

09127-06019

$3.55

4

EXPANDER, HANDLE BALANCER

56272-26D01

$7.25

5

SPACER, EXPANDER

56276-17D00

$5.07

6

WASHER (6.5X18X2)

09160-06121

$3.38

7

NUT

09159-06024

$2.11

8

MIRROR ASSY,RR This part replaces 56500-38B01.

56500-38B02

$81.00

9

MIRROR ASSY,RR This part replaces 56600-38B01.

56600-38B02

$79.87

10

CABLE ASSY, THROTTLE

58300-38B30

$94.59

11

SCREW

02142-05087

$1.49

12

CLAMP

58621-38B00

$6.38

13

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

14

CABLE, STARTER This part replaces 58400-38B01.

58400-39B00

$36.08

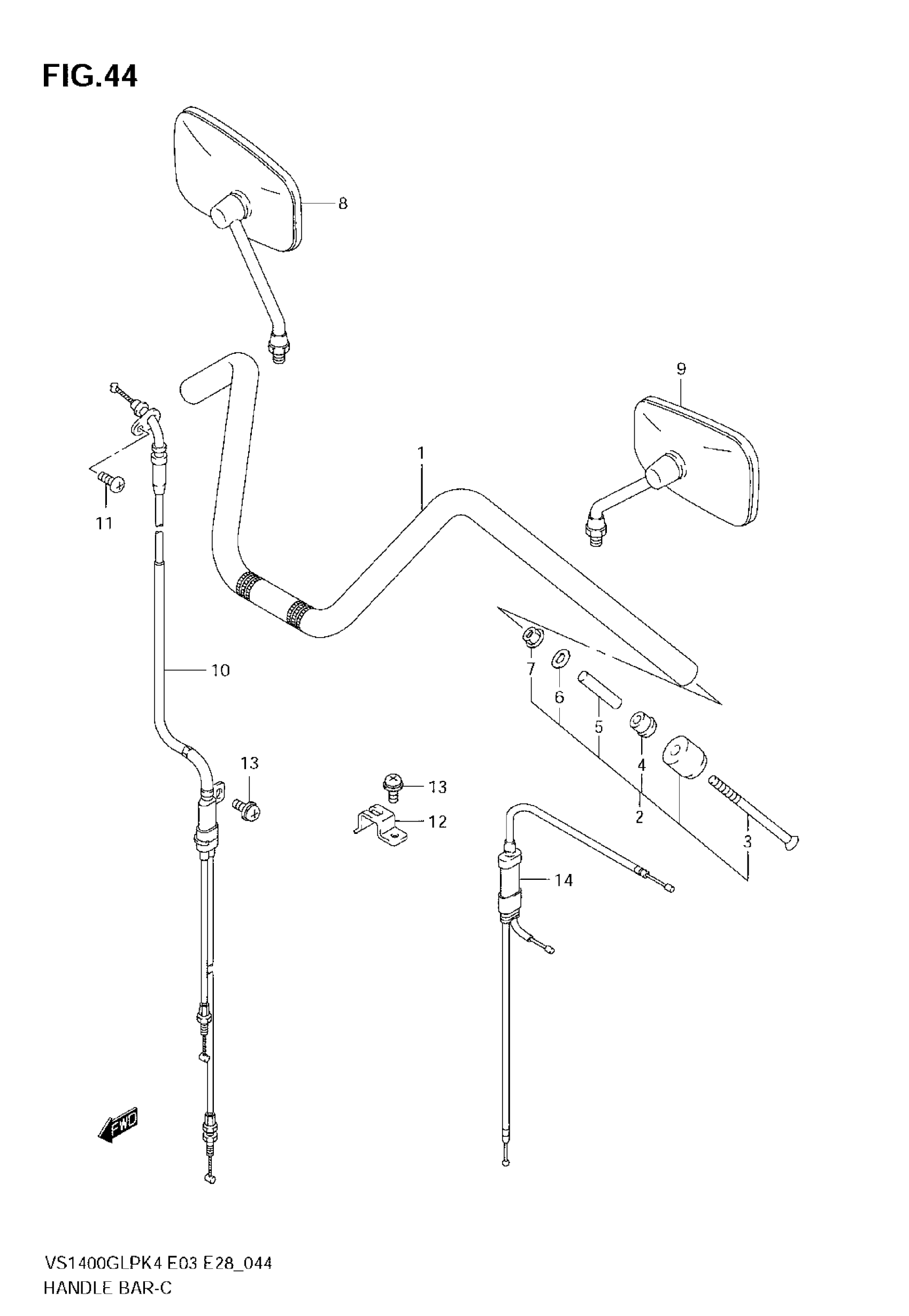

Suzuki VS1400 (2008) HANDLEBAR (MODEL K4) Diagram
