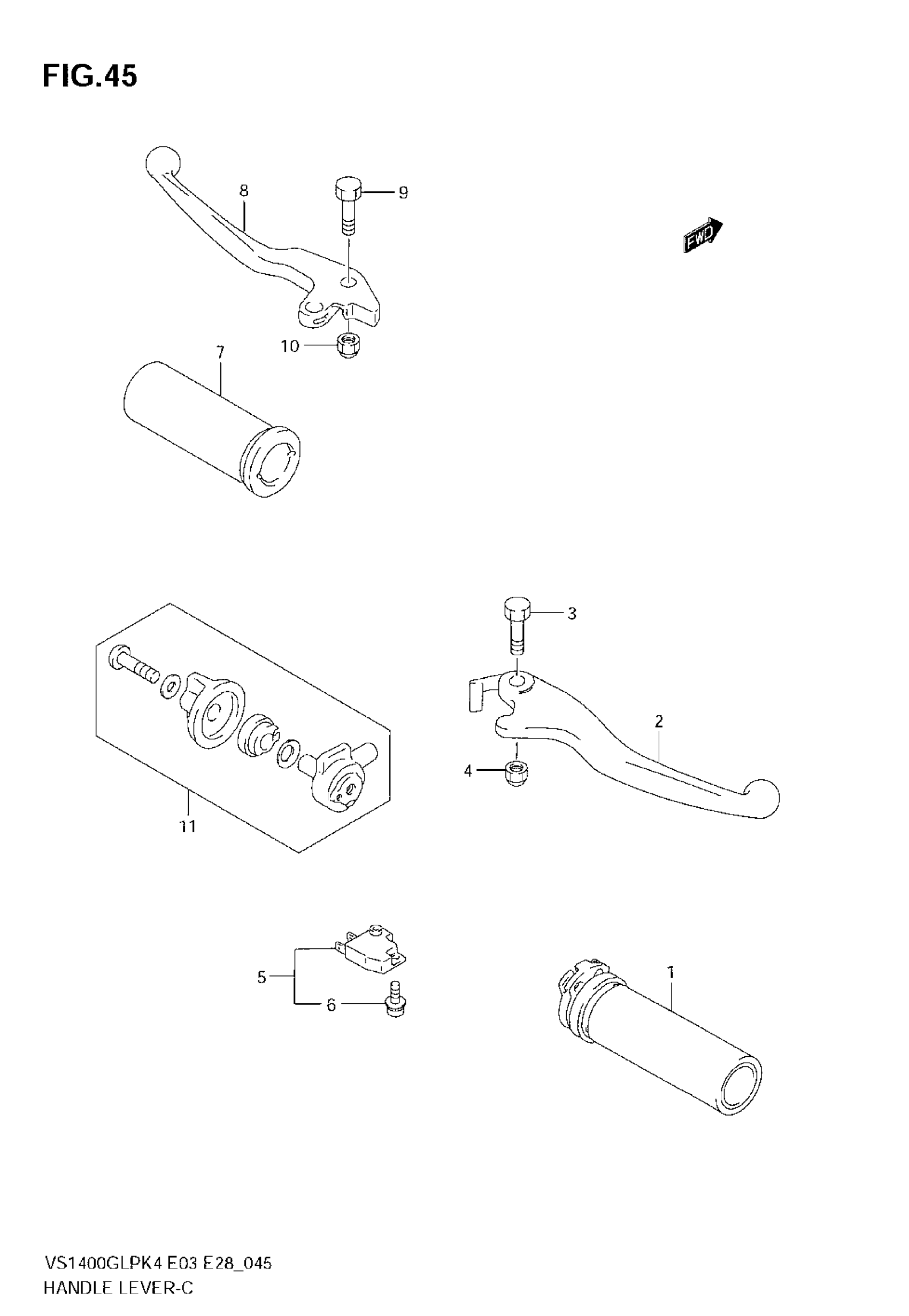

Suzuki VS1400 (2008) HANDLE LEVER Diagram

#

Description
Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$56.06

2

LEVER, BRAKE | MODEL K4

57420-38B10

Unavailable

2

LEVER, BRAKE | MODEL K5/K6/K7/K8

57420-24B01

$26.03

3

BOLT

57431-38A10

$9.23

4

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

8

LEVER, CLUTCH | MODEL K4

57621-38B01

Unavailable

8

LEVER, CLUTCH | MODEL K5/K6/K7/K8

57621-38A02

$21.10

9

BOLT

57431-38A10

$9.23

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

11

LEVER ASSY, STARTER

58700-38B02

$60.72
