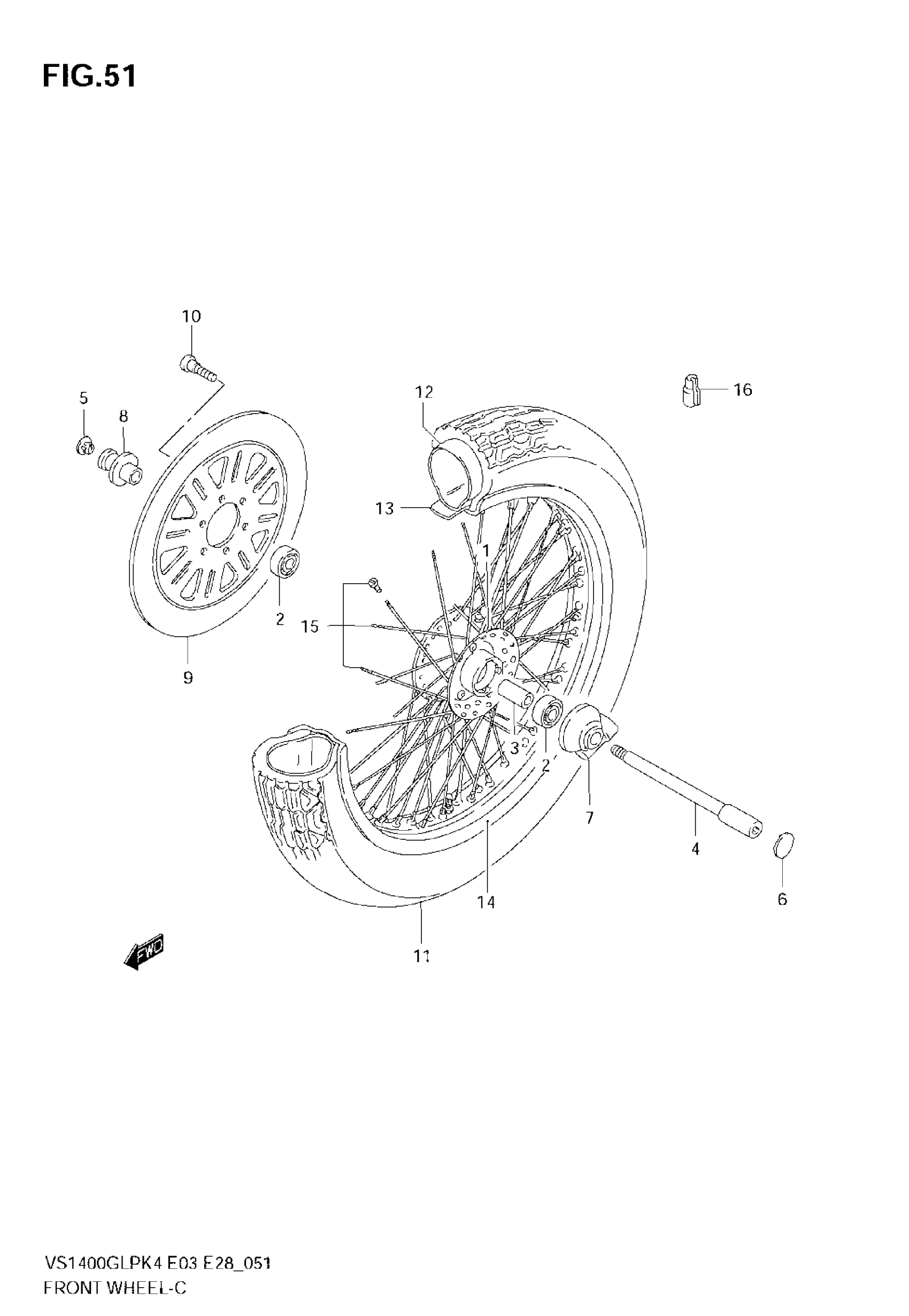

Suzuki VS1400 (2008) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT

54110-38B10

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING (15.3X21.7X65)

09180-15004

$10.27

4

AXLE, FRONT

54711-38B02

$80.52

5

CAP, FRONT AXLE RH | RH

54791-38B01

$5.58

6

CAP, FRONT AXLE LH | LH

54792-38B00

$22.33

7

BOX ASSY,SPEEDO This part replaces 54600-38A11.

54600-38A12

$122.00

8

SPACER, AXLE

54750-38B00

$27.97

9

DISC, FRONT BRAKE

59211-38B00

$361.30

10

BOLT (8X33)

09106-08148

$4.80

11

TIRE, FRONT (110/90-19 62H)

55110-38B20

Unavailable

12

TUBE This part replaces 55200-38B20.

55200-44611

$33.73

13

PROTECTOR,WHEEL This part replaces 55261-38B20.

55261-38B21

Unavailable

14

RIM, WHEEL (MT2.15X19)

55311-38B10

Unavailable

15

SPOKE SET, FRONT WHEEL

55320-38B10

Unavailable

16

BALANCER, WHEEL (20G) | MODEL K4 This part replaces 55412-38A00.

55412-41F00

$8.12

16

BALANCER WHEEL (30G) | MODEL K4 This part replaces 55413-38A00.

55413-41F00

$7.50

16

BALANCER NO.2 | MODEL K5

55412-41F00

$8.12

16

BALANCER WHEEL (30G) | MODEL K5/K6/K7/K8

55413-41F00

$7.50

16

BALANCER WHEEL (15G) | MODEL K6/K7/K8

55411-26G00

$7.73
