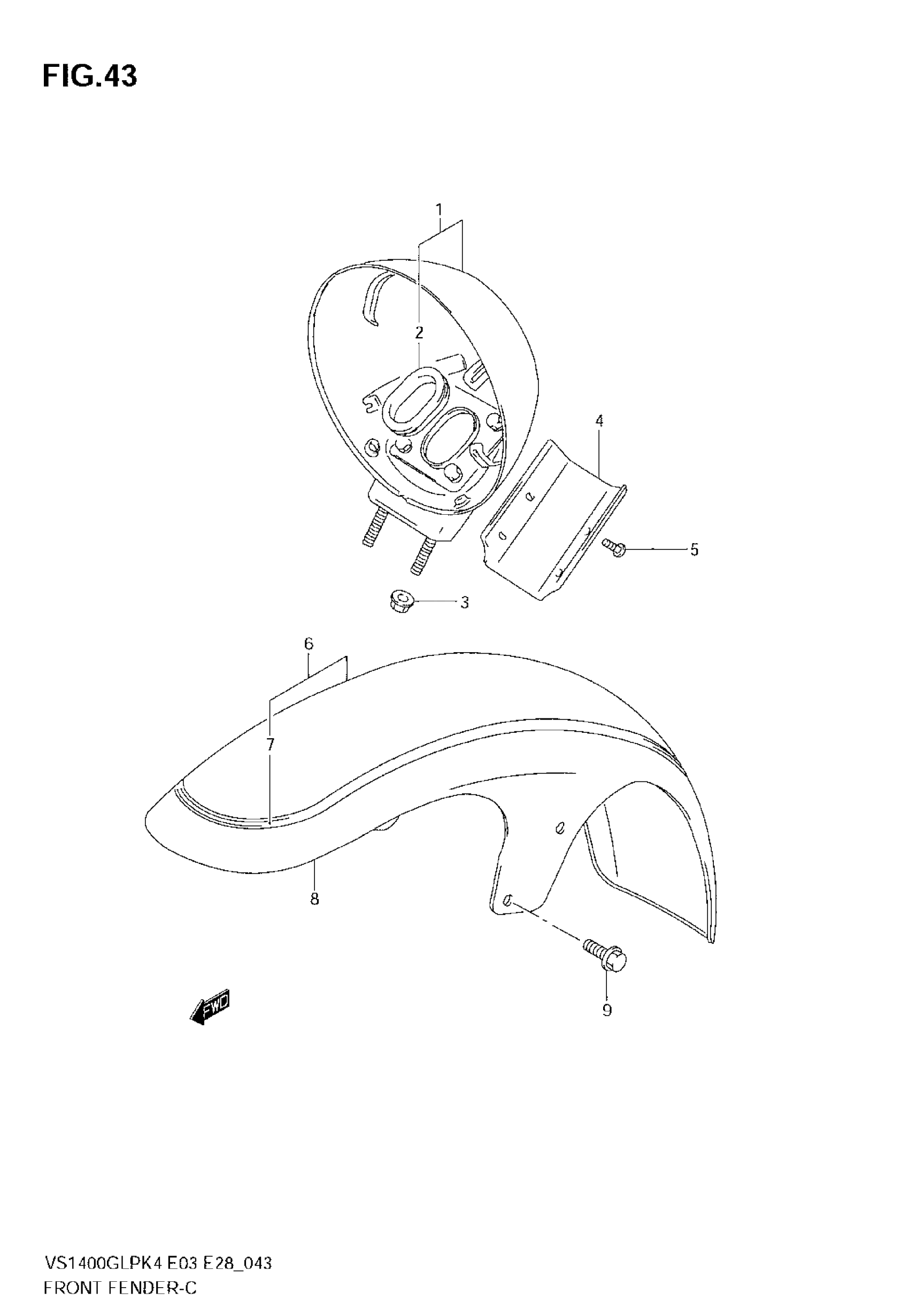

Suzuki VS1400 (2008) FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP | Includes Item(s) 2

51810-38B00

$215.83

2

GROMMET

51819-38B00

Unavailable

3

NUT

08319-3106B

$2.45

4

COVER, HEADLAMP HOUSING

51815-38B00

$13.30

5

SCREW

02142-04107

$1.49

6

FENDER, FRONT | MODEL K4

53100-38B40-NZ1

Unavailable

6

FENDER, FRONT | MODEL K4; Includes Item(s) 7 - 7

53100-38B40-NZ2

Unavailable

7

TAPE SET | MODEL K4 FOR NZ1

68155-38B00-AHN

Unavailable

7

TAPE SET | MODEL K4 FOR NZ2

68155-38B00-AHM

Unavailable

8

FENDER, FR | MODEL K5/K6/K7/K8 This part replaces 53110-38B11-YAY.

53110-38B11-13L

Unavailable

8

FENDER, FRONT (GRAY) | MODEL K5

53110-38B11-YU8

Unavailable

8

FENDER, FRONT (RED) | MODEL K6

53110-38B00-YHL

Unavailable

8

FENDER, FRONT (BLUE) | MODEL K7

53110-38B00-YBA

Unavailable

8

FENDER, FRONT (GOLD) | MODEL K8

53110-38B00-YLC

Unavailable

9

BOLT This part replaces 01570-06163.

01570-0616A

$2.23
