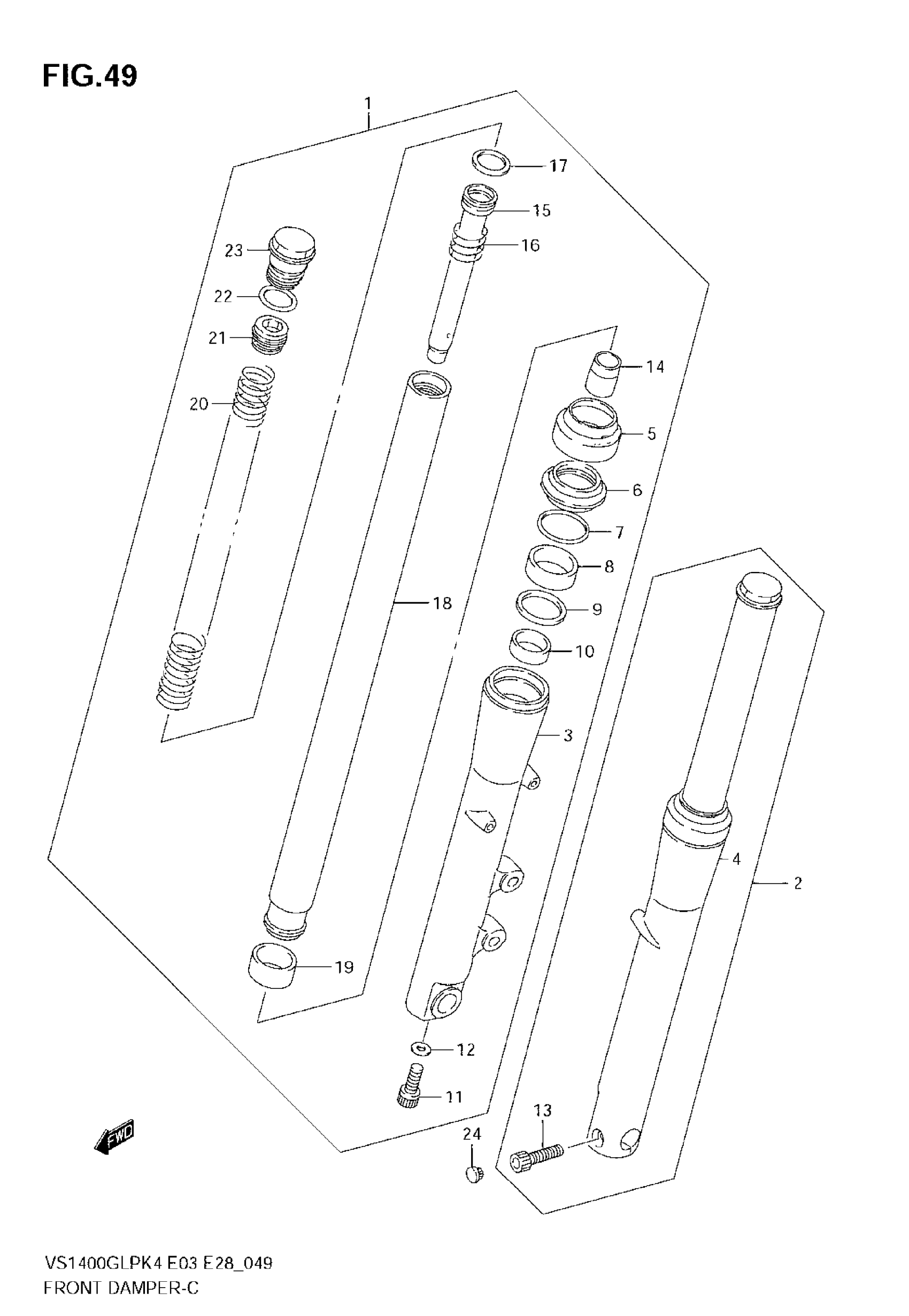

Suzuki VS1400 (2008) FRONT DAMPER (MODEL K4) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-38B00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 23

51104-38B00

Unavailable

3

TUBE, OUTER RH

51131-38B00

Unavailable

4

TUBE, OUTER LH

51141-38B00

Unavailable

5

COVER, DUST SEAL

51572-38B00

$41.68

6

.DUST SEAL

51173-15D00

$23.19

7

RING, STOPPER

51556-38B00

$7.22

8

OIL SEAL

51153-08D00

$22.96

9

SPACER, SEAL

51168-38B00

$6.49

10

BUSH, GUIDE

51152-48B31

$18.90

11

BOLT

51147-48130

$4.34

12

GASKET (8.2X13X1.5)

51148-36011

$3.56

13

BOLT, LH

07130-08407

$3.14

14

PIECE, OIL LOCK

51195-38B00

$30.22

15

CYLINDER

51146-38B00

Unavailable

16

SPRING, REBOUND

51177-32B00

Unavailable

17

RING, PISTON

51196-32B00

$8.42

18

TUBE, INNER

51110-38B00

$516.58

19

PISTON

51121-03D00

$17.37

20

SPRING

51171-38B00

Unavailable

21

BOLT, FORK INNER

51353-38B00

$30.22

22

O RING

51117-38B00

$3.43

23

CAP

51351-38B00

$86.82

24

CAP, OUTER TUBE LH

09250-06009

$3.42
