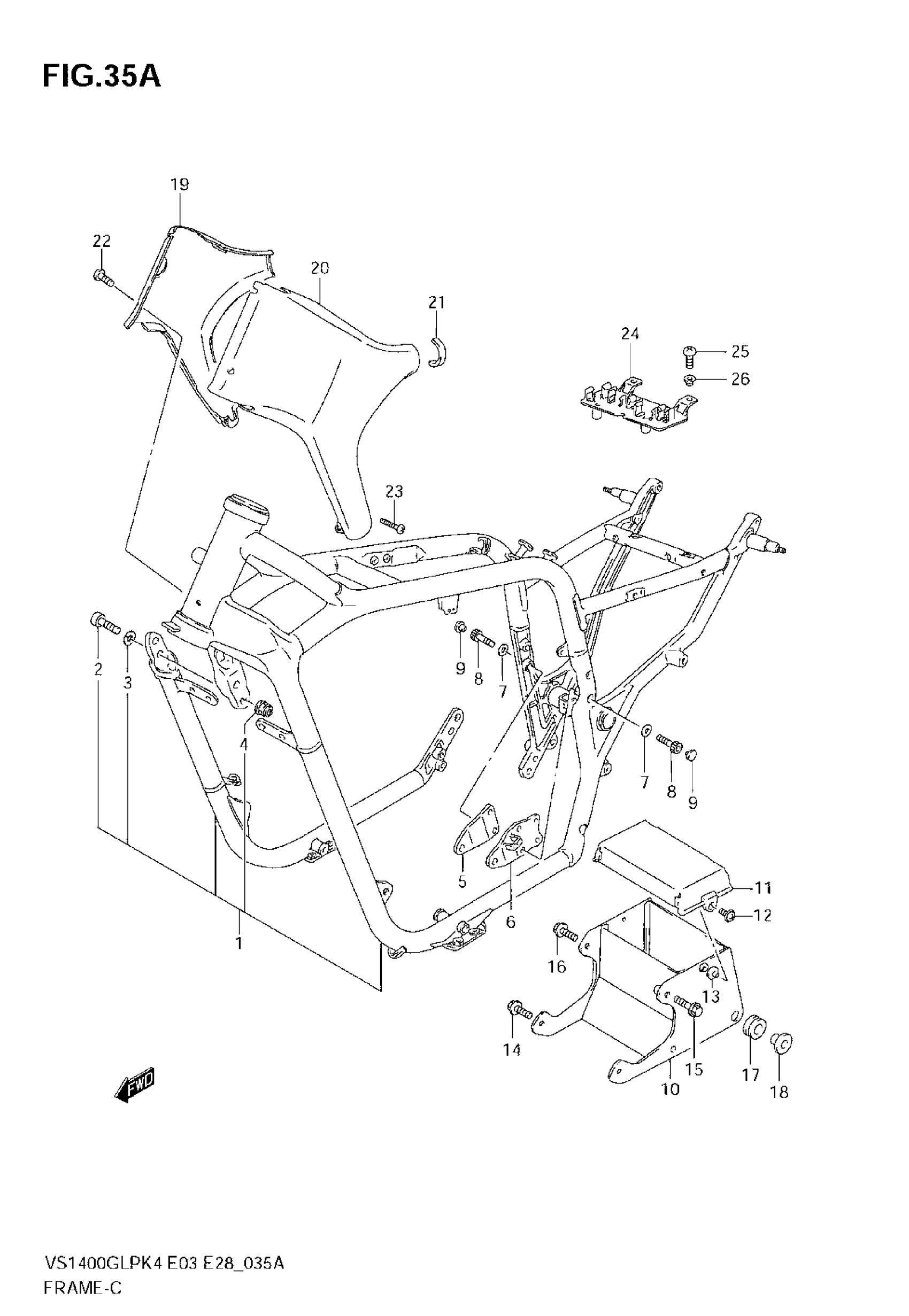

Suzuki VS1400 (2008) FRAME (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

FRAME SET (BLACK)

41101-38822-YAY

Unavailable

1

FRAME SET (GRAY) | MODEL K5

41101-38822-YU8

Unavailable

1

FRAME SET (RED) | MODEL K6

41101-38822-YHL

Unavailable

1

FRAME SET (BLUE) | MODEL K7

41101-38822-YBA

Unavailable

1

FRAME SET (GOLD) | MODEL K8; Includes Item(s) 2 - 4

41101-38822-YLC

Unavailable

2

BOLT

09106-10019

$3.50

3

WASHER

09164-10010

$4.83

4

NUT

08319-3110B

$3.87

5

PLATE, NO.4, RH (BLACK)

41951-38B00-YAY

Unavailable

5

PLATE, NO.4, RH (GRAY) | MODEL K5

41951-38B00-YU8

Unavailable

5

PLATE, NO.4, RH (RED) | MODEL K6

41951-38B00-YHL

Unavailable

5

PLATE, NO.4, RH (BLUE) | MODEL K7

41951-38B00-YBA

Unavailable

5

PLATE, NO.4, RH (GOLD) | MODEL K8

41951-38B00-YLC

Unavailable

6

PLATE, NO.4, LH (BLACK)

41960-38B00-YAY

Unavailable

6

PLATE, NO.4, LH (GRAY) | MODEL K5

41960-38B00-YU8

Unavailable

6

PLATE, NO.4, LH (RED) | MODEL K6

41960-38B00-YHL

Unavailable

6

PLATE, NO.4, LH (BLUE) | MODEL K7

41960-38B00-YBA

Unavailable

6

PLATE, NO.4, LH (GOLD) | MODEL K8

41960-38B00-YLC

Unavailable

7

WASHER

09164-08015

$3.21

8

BOLT

09106-08072

$4.52

9

CAP

09250-06004

$1.49

10

HOLDER, BATTERY

41540-38B02

$111.78

11

COVER, BATTERY

33658-38B00

$14.20

12

SCREW

09138-05012

$2.07

13

WASHER

09169-05014

$3.32

14

BOLT

01550-0616B

$2.48

15

BOLT, CENTER

01551-0820B

$3.28

16

BOLT, CENTER LH

09103-08222

$2.85

17

CUSHION

09320-12042

$3.40

18

SPACER

09301-08009

$5.08

19

COVER, FRAME HEAD RH (BLACK)

47350-38B01-YAY

Unavailable

19

COVER, FRAME HEAD RH (GRAY) | MODEL K5

47350-38B01-YU8

Unavailable

19

COVER, FRAME HEAD RH (RED) | MODEL K6

47350-38B01-YHL

Unavailable

19

COVER, FRAME HEAD RH (BLUE) | MODEL K7

47350-38B01-YBA

Unavailable

19

COVER, FRAME HEAD RH (GOLD) | MODEL K8

47350-38B01-YLC

Unavailable

20

COVER, FRAME HEAD LH (BLACK)

47360-38B11-YAY

Unavailable

20

COVER, FRAME HEAD LH (GRAY) | MODEL K5

47360-38B11-YU8

Unavailable

20

COVER, FRAME HEAD LH (RED) | MODEL K6

47360-38B11-YHL

Unavailable

20

COVER, FRAME HEAD LH (BLUE) | MODEL K7

47360-38B11-YBA

Unavailable

20

COVER, FRAME HEAD LH (GOLD) | MODEL K8

47360-38B11-YLC

Unavailable

21

PROTECTOR

47359-38B00

$2.38

22

SCREW

09125-06117

Unavailable

23

SCREW

02112-0425B

$2.34

24

HOLDER, COUPLER

47411-38B02

$19.15

25

SCREW

02142-0616B

$1.78

26

WASHER

09169-06010

$2.60
