2008 Suzuki VS1400 Frame Handle Grip Diagram

← All diagrams

Find the part on the Frame Handle Grip diagram for your 2008 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

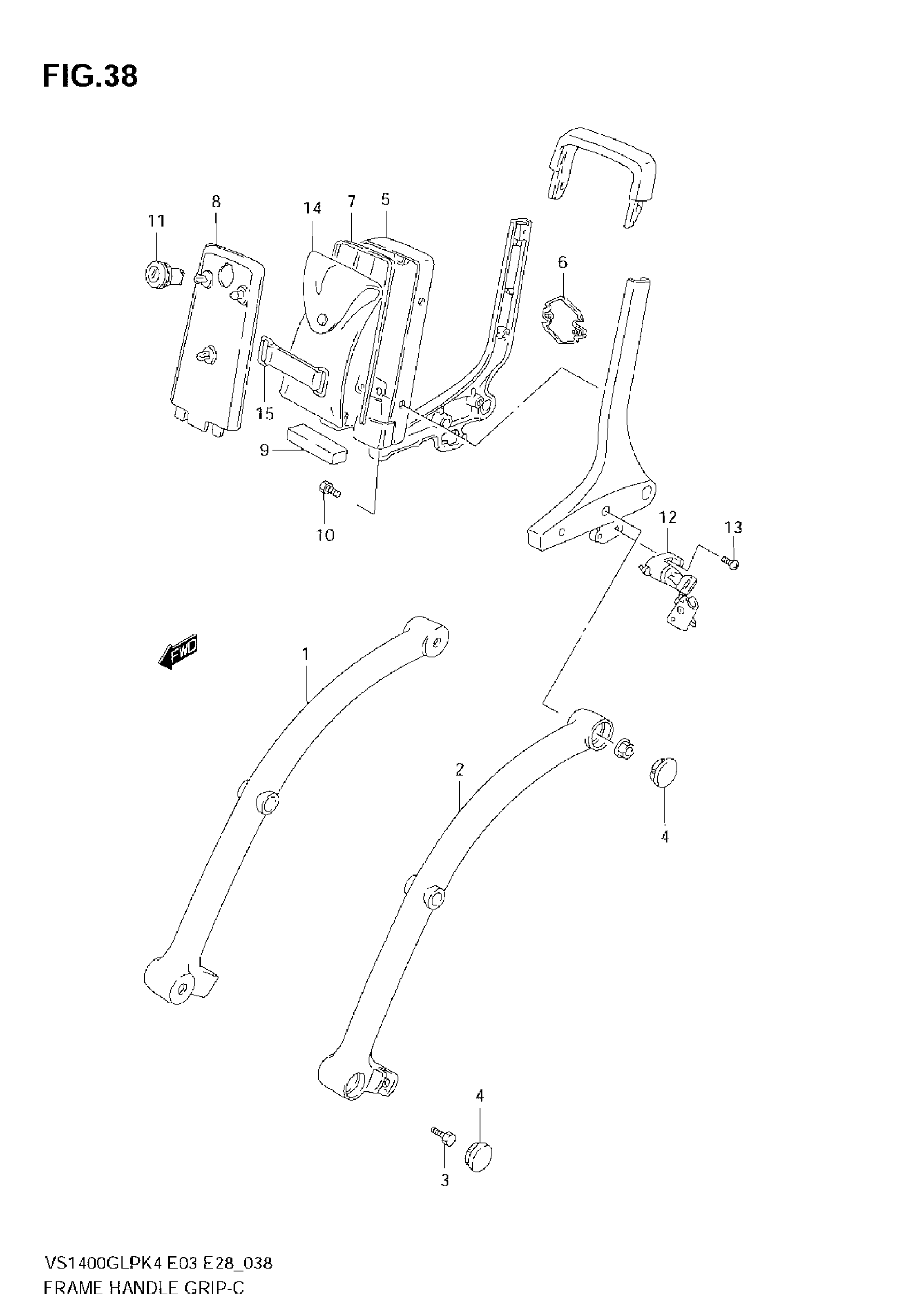

2008 Suzuki VS1400 Frame Handle Grip Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, FRAME HANDLE RH

41610-38B10

1
Out of stock

2

GRIP, FRAME HANDLE LH

41620-38B10

1
Out of stock

3

BOLT This part replaces 01580-08203.

01580-0820A

2
Out of stock

4

CAP

95673-24A00

2
Out of stock

5

HOLDER, TOOL REAR (BLACK)

47430-38B11-22S

1
Out of stock

6

EMBLEM

68261-38A30

1
Out of stock

7

MOLDING

47437-38B00

1
Out of stock

8

HOLDER, TOOL FRONT

47441-38B00

1
Out of stock

9

CUSHION, TOOL BACK

47438-38B00

1
Out of stock

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

4
Out of stock

11

LOCK SET, TOOL HOLDER

95700-24831

1
Out of stock

12

LOCK SET, HELMET

95700-38821

2
Out of stock

13

SCREW

02112-05127

2
Out of stock

14

TOOL ASSY This part replaces 09800-21014.

09800-21071

1
Out of stock

15

BAND, TOOL

09462-00008

1

$4.71

In stock
