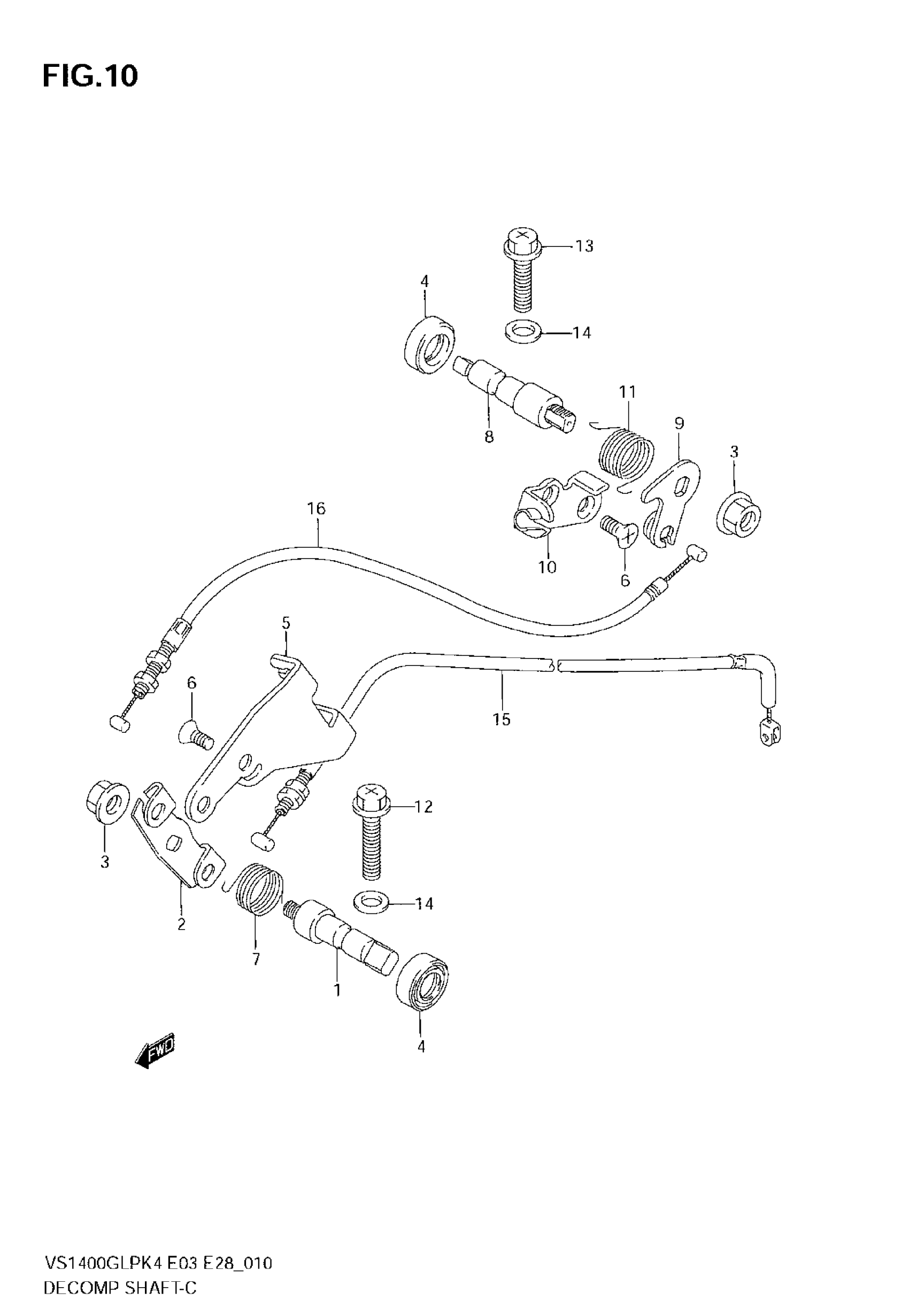

Suzuki VS1400 (2008) DECOMP SHAFT Diagram

#

Description
Price

1

SHAFT, DECOMP FRONT

12939-38B00

Unavailable

2

LEVER, DECOMP FRONT

12942-38B03

Unavailable

3

NUT

08316-1008B

$2.66

4

OIL SEAL (10X20X6)

09282-10012

$7.98

5

HOLDER, DECOMP CABLE FRONT

12944-38B02

Unavailable

6

SCREW (GREEN)

02122-0510B

Unavailable

7

SPRING This part replaces 09448-17029.

09448-17029-XC0

$6.53

8

SHAFT, DECOMP REAR

12941-38B00

Unavailable

9

LEVER, DECOMP REAR

12952-38B01

Unavailable

10

HOLDER, DECOMP CABLE REAR

12950-38B00

Unavailable

11

SPRING, REAR

09448-17023

Unavailable

12

BOLT (GREEN)

02162-0630B

Unavailable

13

BOLT (GREEN)

02162-0625B

$2.10

14

GASKET

09168-06023

$2.35

15

CABLE, DECOMP, FR | MODEL K4 This part replaces 58900-38B01.

58900-38B20

$58.13

15

CABLE, DECOMP, FR | MODEL K5/K6/K7/K8

58900-38B20

$58.13

16

CABLE, DECOMP, RR | MODEL K4 This part replaces 58910-38B10.

58910-38B20

$59.07

16

CABLE, DECOMP, RR | MODEL K5/K6/K7/K8

58910-38B20

$59.07
