Partiron

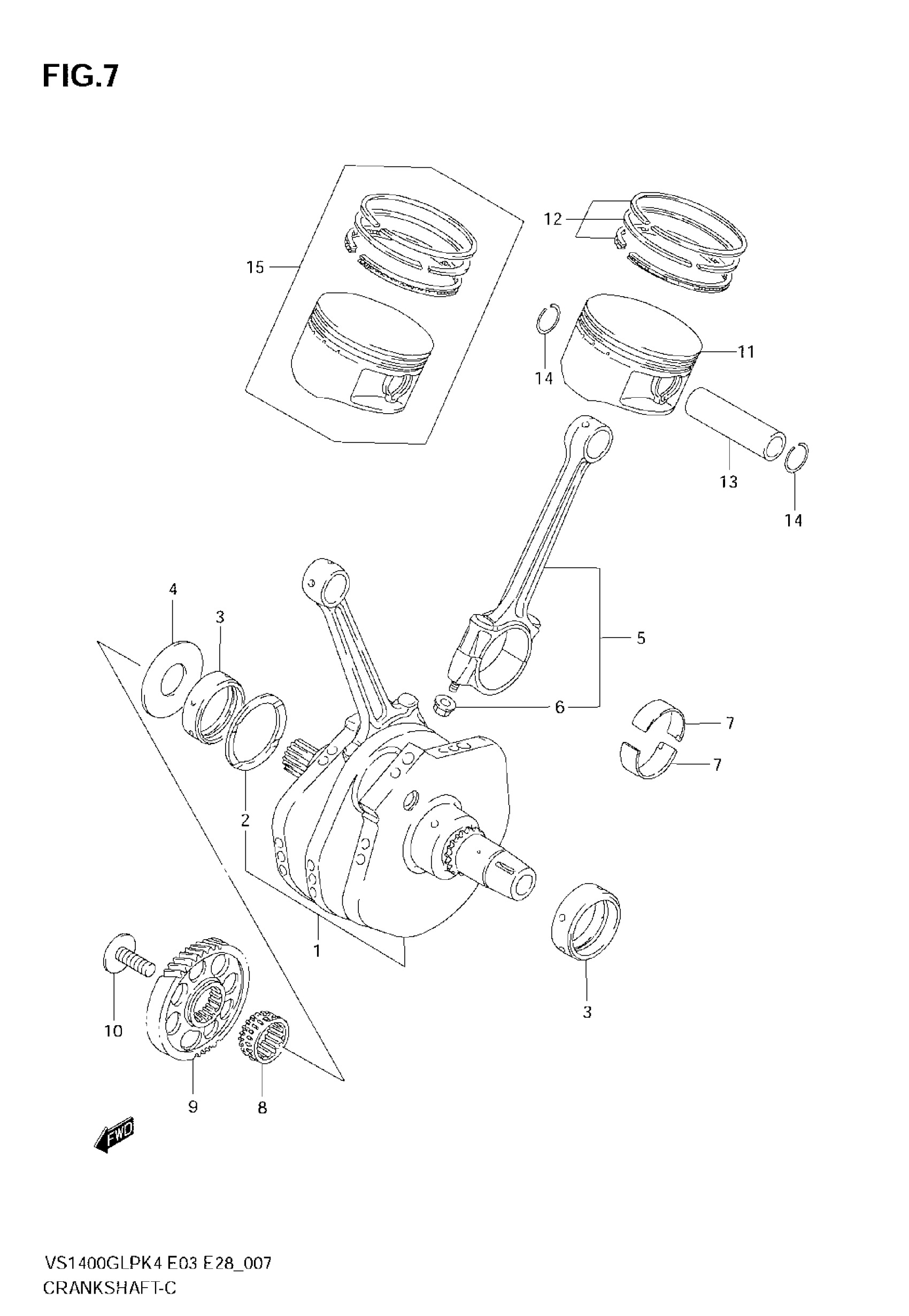

Suzuki VS1400 (2008) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | MODEL K4

12000-38820

Unavailable

1

CRANKSHAFT SET | MODEL K5/K6/K7/K8; Includes Item(s) 2 - 2

12000-38840

Unavailable

2

BEARING, CRANK THRUST (T:1.925)

12228-38B00-0A0

Unavailable

2

BEARING, CRANK THRUST (T:1.950)

12228-38B00-0B0

Unavailable

2

BEARING, CRANK THRUST (T:1.975)

12228-38B00-0C0

Unavailable

2

BEARING, CRANK THRUST (T:2000)

12228-38B00-0D0

Unavailable

2

BEARING, CRANK THRUST (T:2.025)

12228-38B00-0E0

Unavailable

2

BEARING, CRANK THRUST (T:2.050)

12228-38B00-0F0

Unavailable

2

BEARING, CRANK THRUST (T:2.075)

12228-38B00-0G0

Unavailable

2

BEARING, CRANK THRUST (T:2.100)

12228-38B00-0H0

Unavailable

2

BEARING, CRANK THRUST (T:2.125)

12228-38B00-0I0

Unavailable

2

BEARING, CRANK THRUST (T:2.150)

12228-38B00-0J0

Unavailable

3

BEARING, CRANKSHAFT | INCLUDED CRANKCASE SET

12229-38B00

$30.22

4

WASHER,CRANK THRUST

12652-38B00

Unavailable

5

ROD ASSY, CONNECTING | Includes Item(s) 6

12160-38B00

Unavailable

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN)

12164-38B01-0A0

Unavailable

7

BEARING, CRANK PIN (BLACK)

12164-38B01-0B0

$12.08

7

BEARING, CRANK PIN (BROWN)

12164-38B01-0C0

$14.20

7

BEARING, CRANK PIN (YELLOW)

12164-38B01-0D0

$14.20

7

BEARING, CRANK PIN (BLUE)

12164-38B01-0E0

Unavailable

8

SPROCKET, CAM CHAIN DRIVE RH

12731-38B00

Unavailable

9

GEAR, PRIMARY DRIVE

21111-38B00

Unavailable

10

BOLT (14X28)

09103-14010

$17.50

11

PISTON

12111-38B03-0F0

$140.98

12

RING SET, PISTON

12140-38B30

$52.87

13

PIN, PISTON

12151-14A01

$23.40

14

CIRCLIP

09381-23003

$1.49

15

PISTON SET (OS:0.5) | OPT

12100-38B00-050

$205.95
