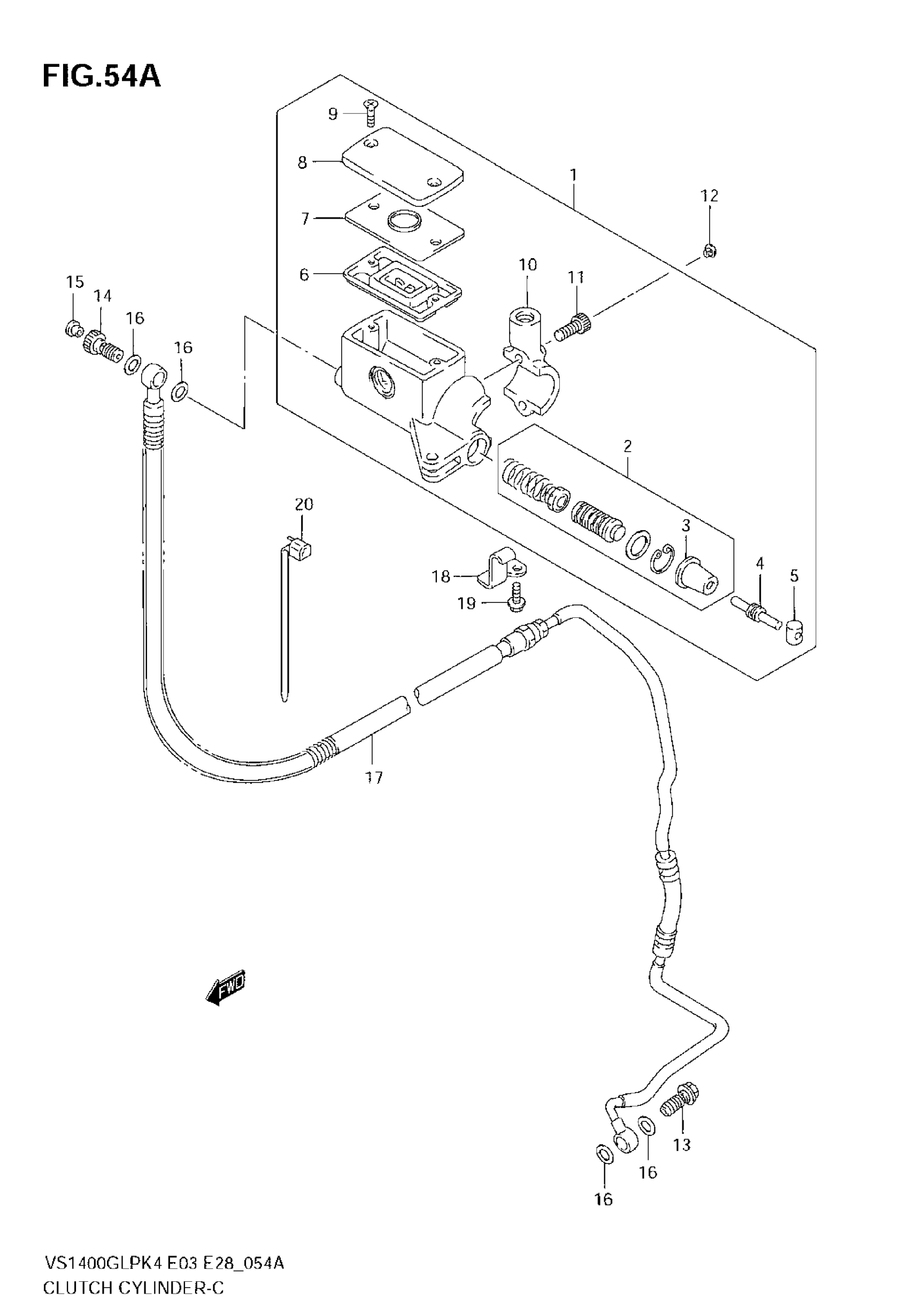

Suzuki VS1400 (2008) CLUTCH CYLINDER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

CYLD ASSY,CLUTC | Includes Item(s) 2 - 11 This part replaces 59800-39A10.

59800-39A11

$452.93

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

PLATE, DIAPHRAGM

59668-41C00

$9.32

8

CAP

59669-10F00

$71.45

9

SCREW

02122-04127

$1.97

10

HOLDER

59671-38A00

$37.11

11

BOLT

07130-06207

$3.04

12

CAP

09250-05008

$3.76

13

UNION This part replaces 09360-10039.

09360-10061

$6.43

14

BOLT, UPPER (10X1.00X24)

09360-10027

$9.10

15

CAP

09250-08014

$2.85

16

WASHER (10X15X1.5)

09161-10009

$1.84

17

HOSE ASSY, CLUTCH

59900-38B50

$530.73

18

CLAMP, HOSE

59542-38B00

Unavailable

19

BOLT

01550-0610B

$2.42

20

CLAMP (L:165)

09407-18402

$2.19
