Description

Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 10 This part replaces 59800-38B30.

59800-38B31

$439.73

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

CAP

59669-38B10

Unavailable

8

SCREW

02122-04127

$1.97

9

HOLDER

59671-38A00

$37.11

10

BOLT

07130-06207

$3.04

11

CAP

09250-05008

$3.76

12

UNION This part replaces 09360-10039.

09360-10061

$6.43

13

BOLT, UPPER (10X1.00X24)

09360-10027

$9.10

14

CAP

09250-08014

$2.85

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

HOSE ASSY,CLUTC This part replaces 59900-38B30.

59900-38B31

Unavailable

17

CLAMP, HOSE

59542-38B00

Unavailable

18

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

19

CLAMP (L:165)

09407-18402

$2.19

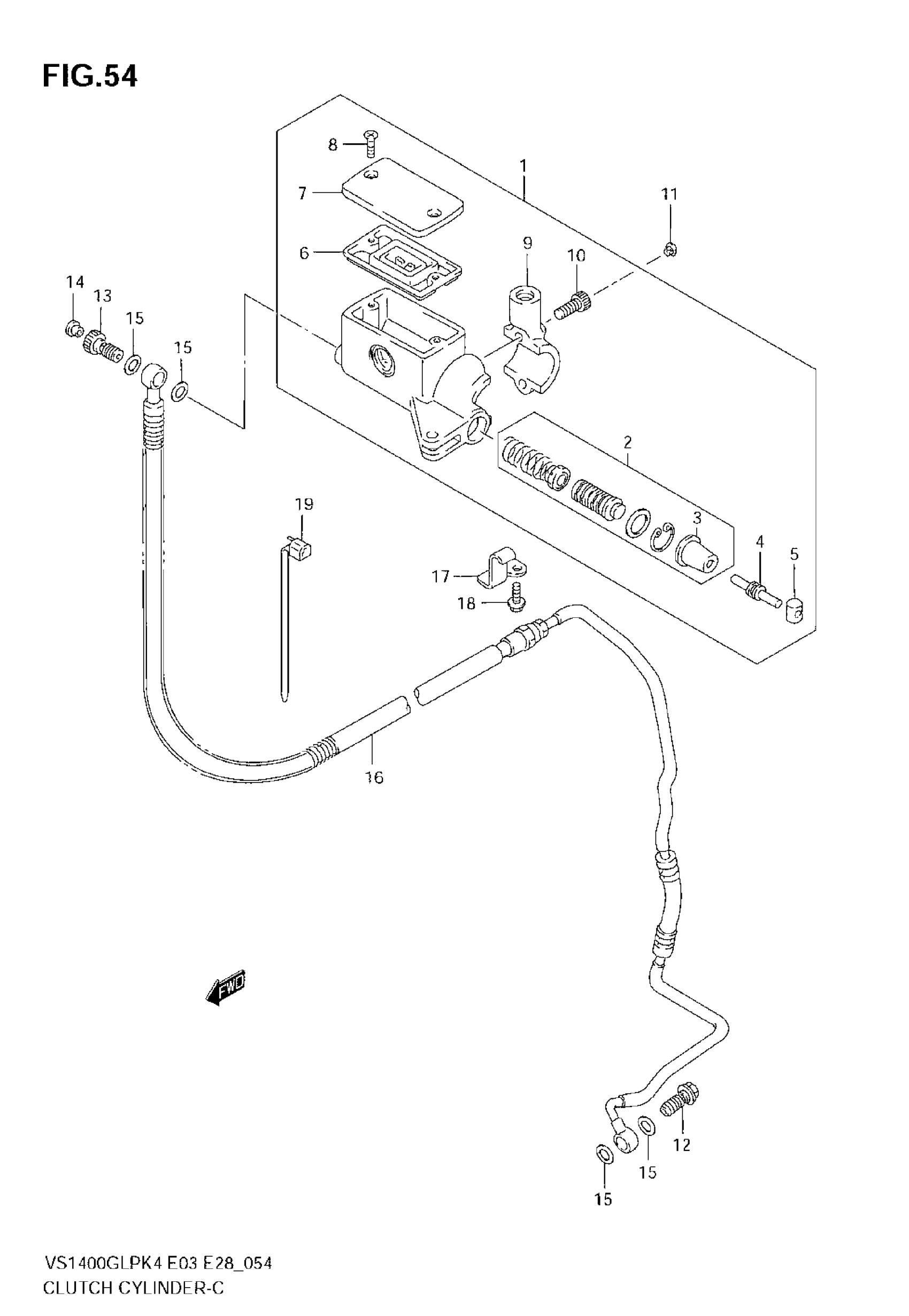

Suzuki VS1400 (2008) CLUTCH CYLINDER (MODEL K4) Diagram

CYLINDER ASSY,C | Includes Item(s) 2 - 10 This part replaces 59800-38B30.

PISTON & CUP SET

BOOT

PUSH ROD This part replaces 59871-38A00.

BUSH

DIAPHRAGM

CAP

SCREW

HOLDER

BOLT

CAP

UNION This part replaces 09360-10039.

BOLT, UPPER (10X1.00X24)

CAP

WASHER (10X15X1.5)

HOSE ASSY,CLUTC This part replaces 59900-38B30.

CLAMP, HOSE

BOLT This part replaces 01550-06103.

CLAMP (L:165)
