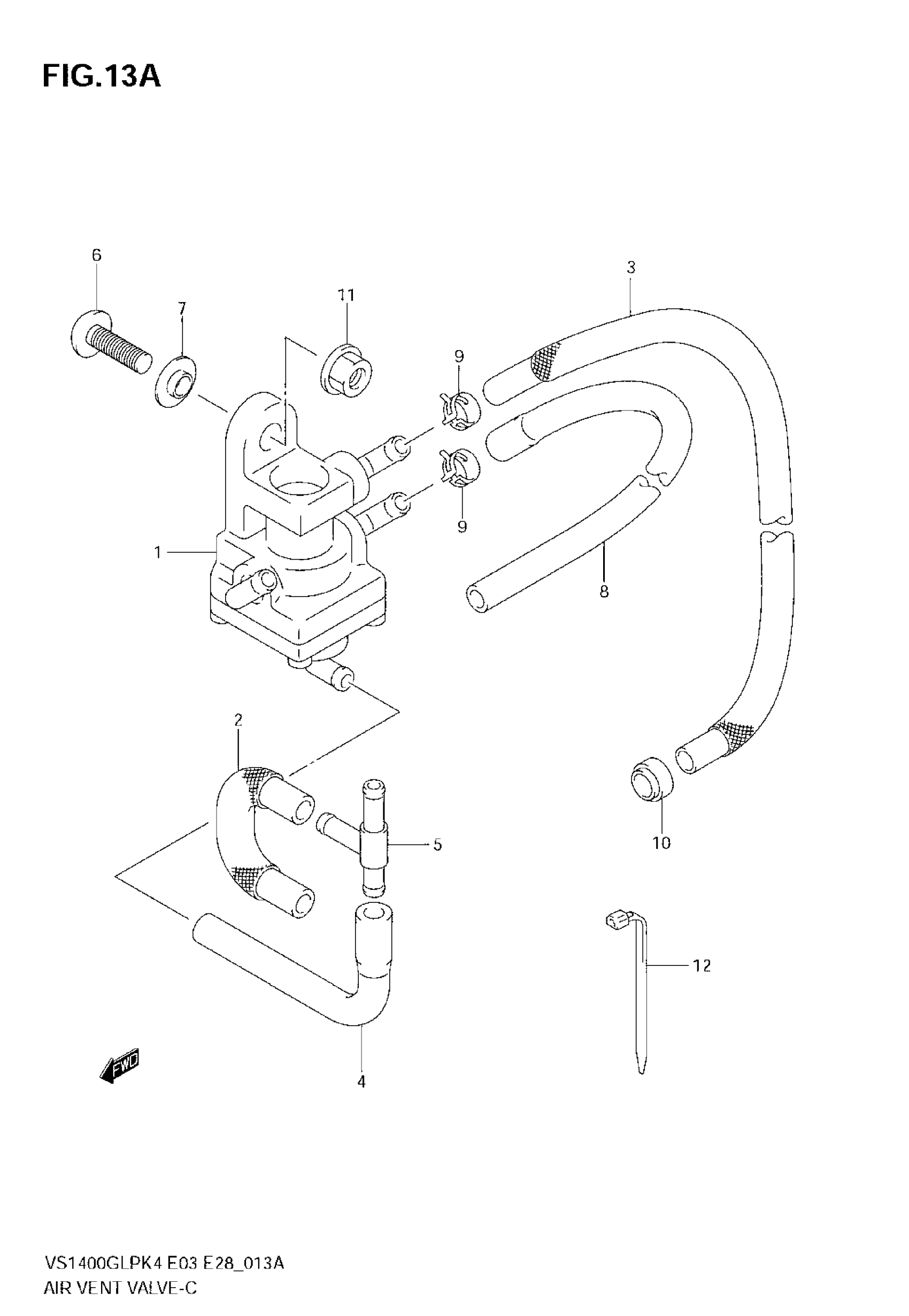

Suzuki VS1400 (2008) AIR VENT VALVE (MODEL K6/K7/K8 E33) Diagram

#

Description
Price

1

VALVE, AIR VENT

13590-38B00

Unavailable

2

HOSE, INTAKE VACUUM

13680-38B00

Unavailable

3

HOSE, AIR VENT VALVE

13680-38B11

Unavailable

4

HOSE, AIR VENT VALVE VACUUM

13682-38B00

Unavailable

5

3WAY

09367-04007

$4.00

6

BOLT, 6X32

09139-06063

$4.00

7

WASHER

09169-06041

$2.20

8

HOSE,5X10X600 | L:600!440 This part replaces 09355-50105-600.

44421-13ER0

$10.06

9

CLIP (ID:9.4,H:8)

09401-09403

$2.03

10

CLIP

09401-10411

$2.80

11

NUT

08316-1006B

$2.50

12

CLAMP

09407-18402

$2.19
