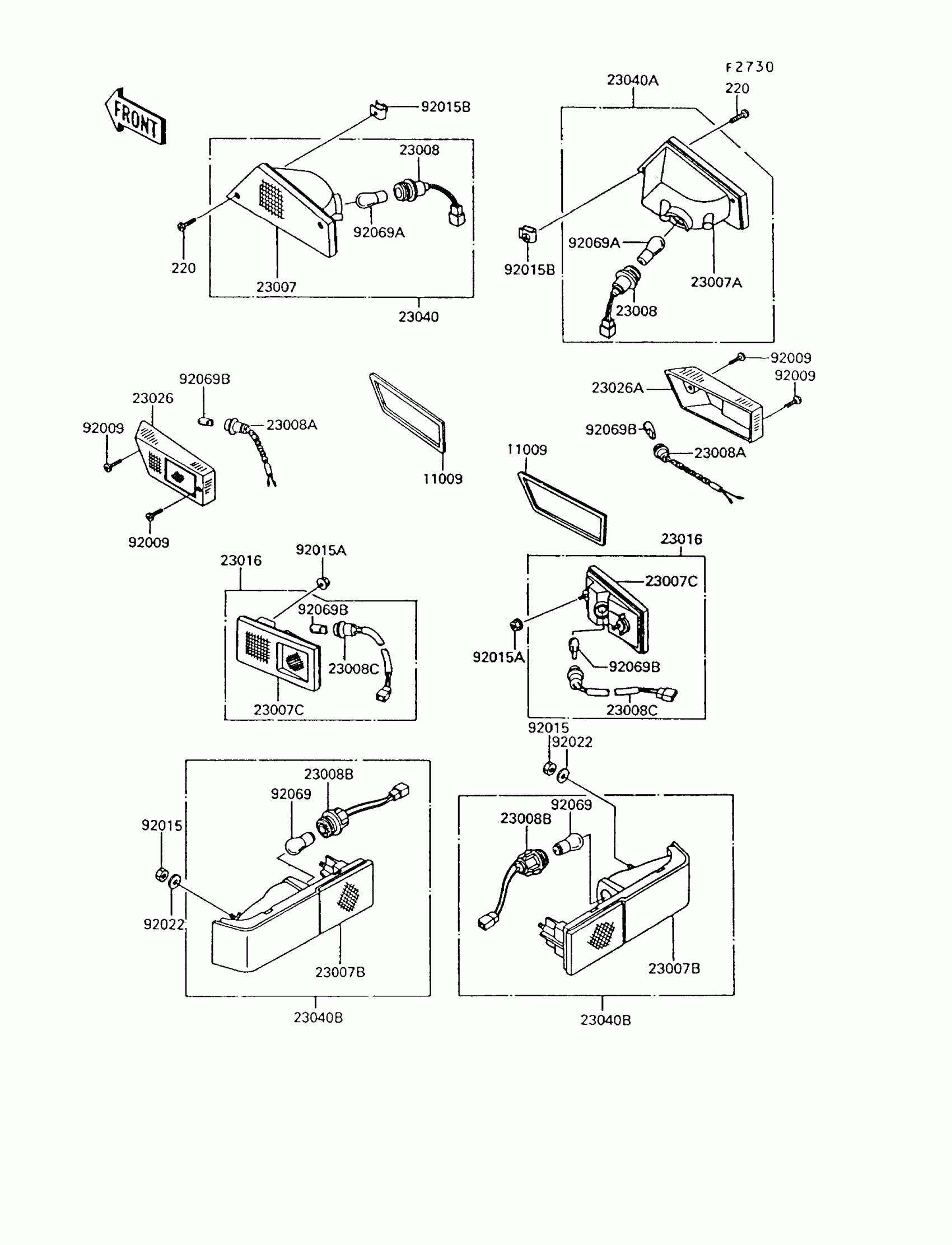

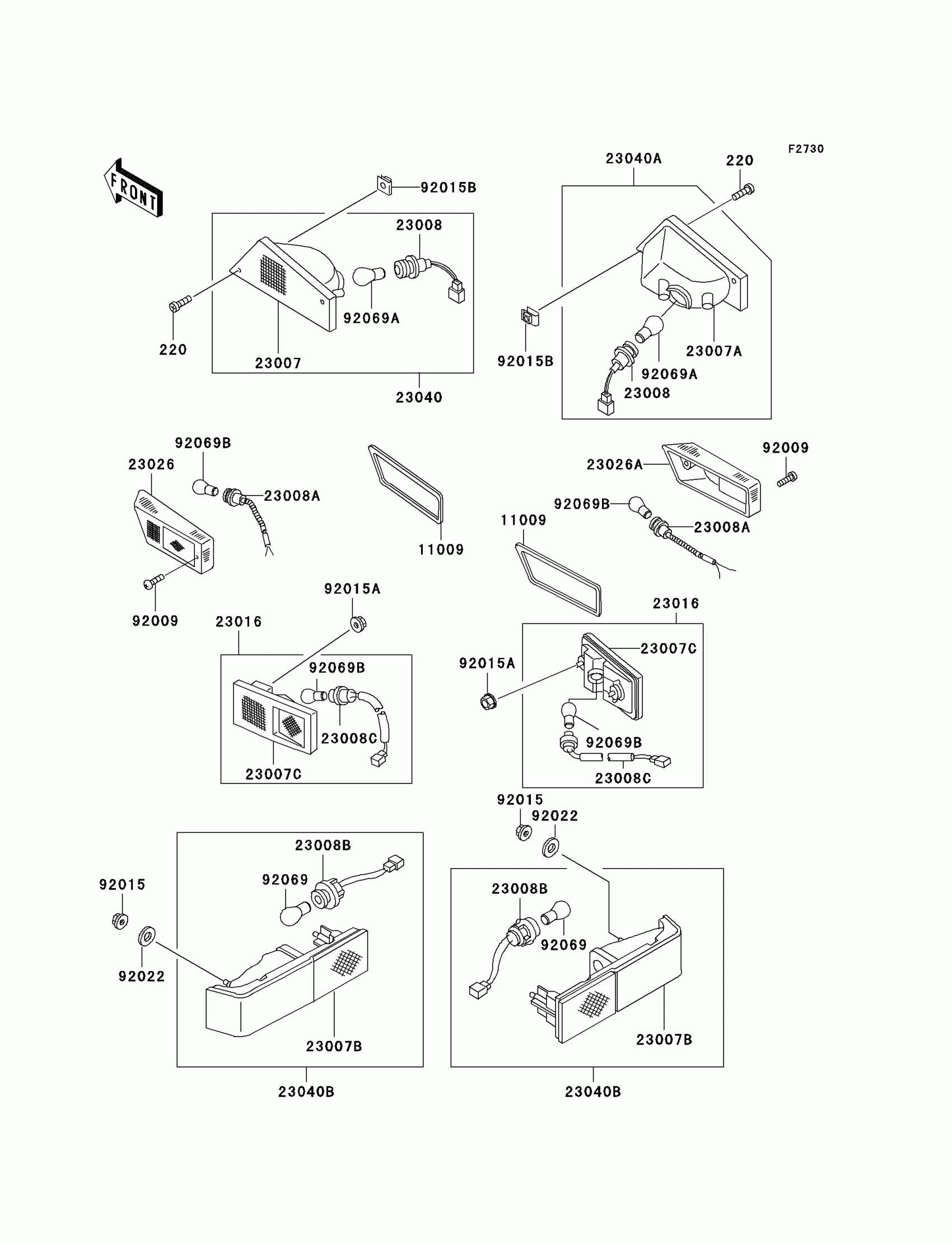

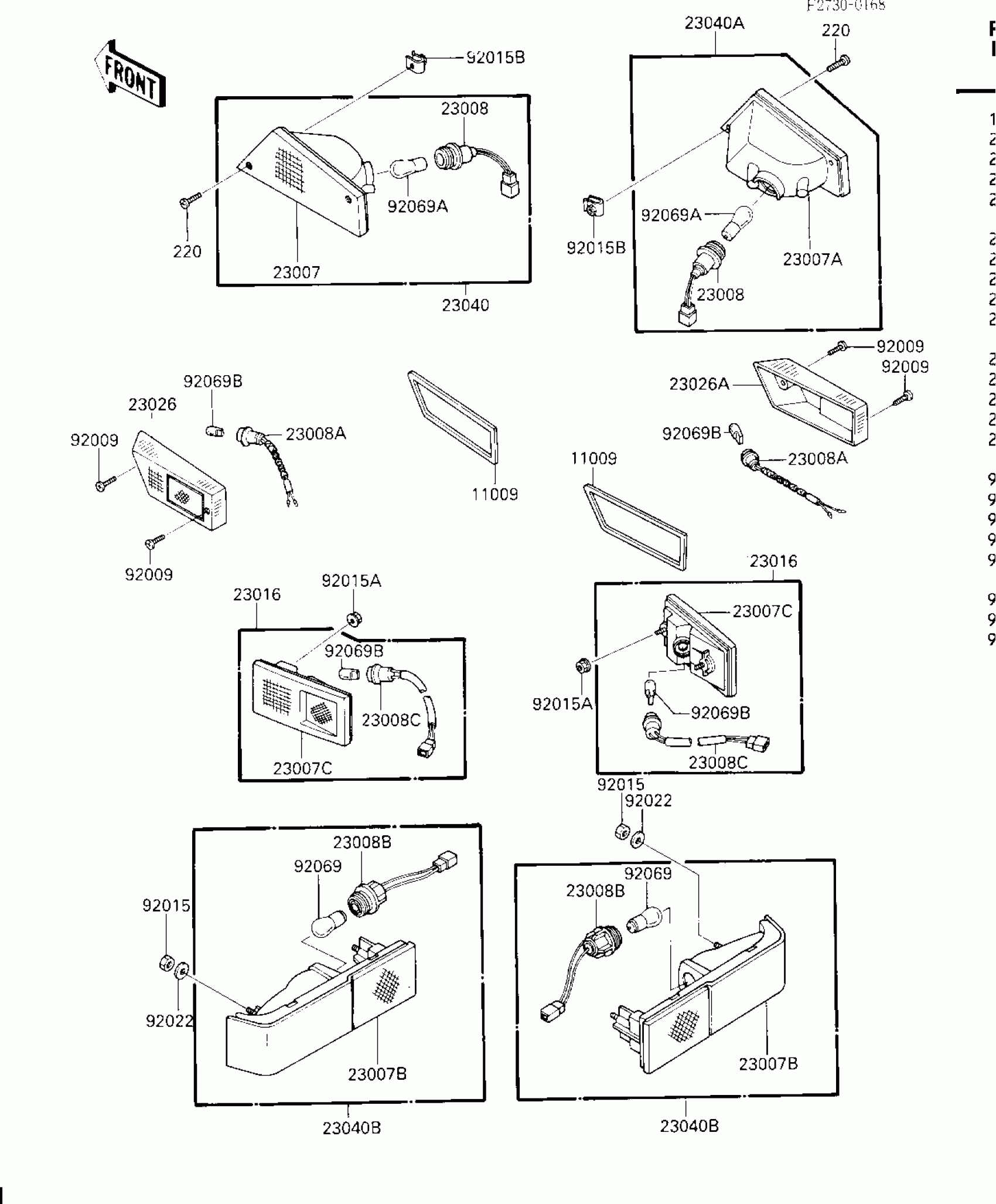

Kawasaki Voyager XII Turn Signals Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X20

220D0420

$2.49

11009

GASKET,SIDE MARKER,FR

11009-1615

$20.49

23007

LENS-COMP,SIGNAL LAMP,FR,LH

23007-1146

$82.08

23007A

LENS-COMP,SIGNAL LAMP,FR,RH

23007-1147

$82.08

23007B

LENS-COMP,SIGNAL LAMP,RR

23007-1148

$83.98

23007C

LENS-COMP,SIDE MARKER,RR

23007-1149

$72.19

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1184

$37.36

23008A

SOCKET-ASSY,SIDE MARKER,FR

23008-1292

$19.45

23008B

SOCKET-ASSY,SIGNAL LAMP,RR

23008-1301

$17.61

23008C

SOCKET-ASSY,SIDE MARKER,RR

23008-1302

$9.22

23016

LAMP-ASSY,SIDE MARKER,RR

23016-1068

$72.19

23026

LENS,SIDE MARKER,FR,LH

23026-1071

$28.83

23026A

LENS,SIDE MARKER,FR,RH

23026-1072

$32.47

23040

LAMP-SIGNAL,FR,LH

23040-1128

$82.08

23040A

LAMP-SIGNAL,FR,RH

23040-1129

$82.08

23040B

LAMP-SIGNAL,RR

23040-1130

$83.98

92009

SCREW,4X18

92009-1355

$4.39

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,5MM

92015-1328

$2.70

92015B

NUT,4MM

92015-1567

$6.52

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

92069B

BULB,12V 3CP

92069-1066

$6.67
