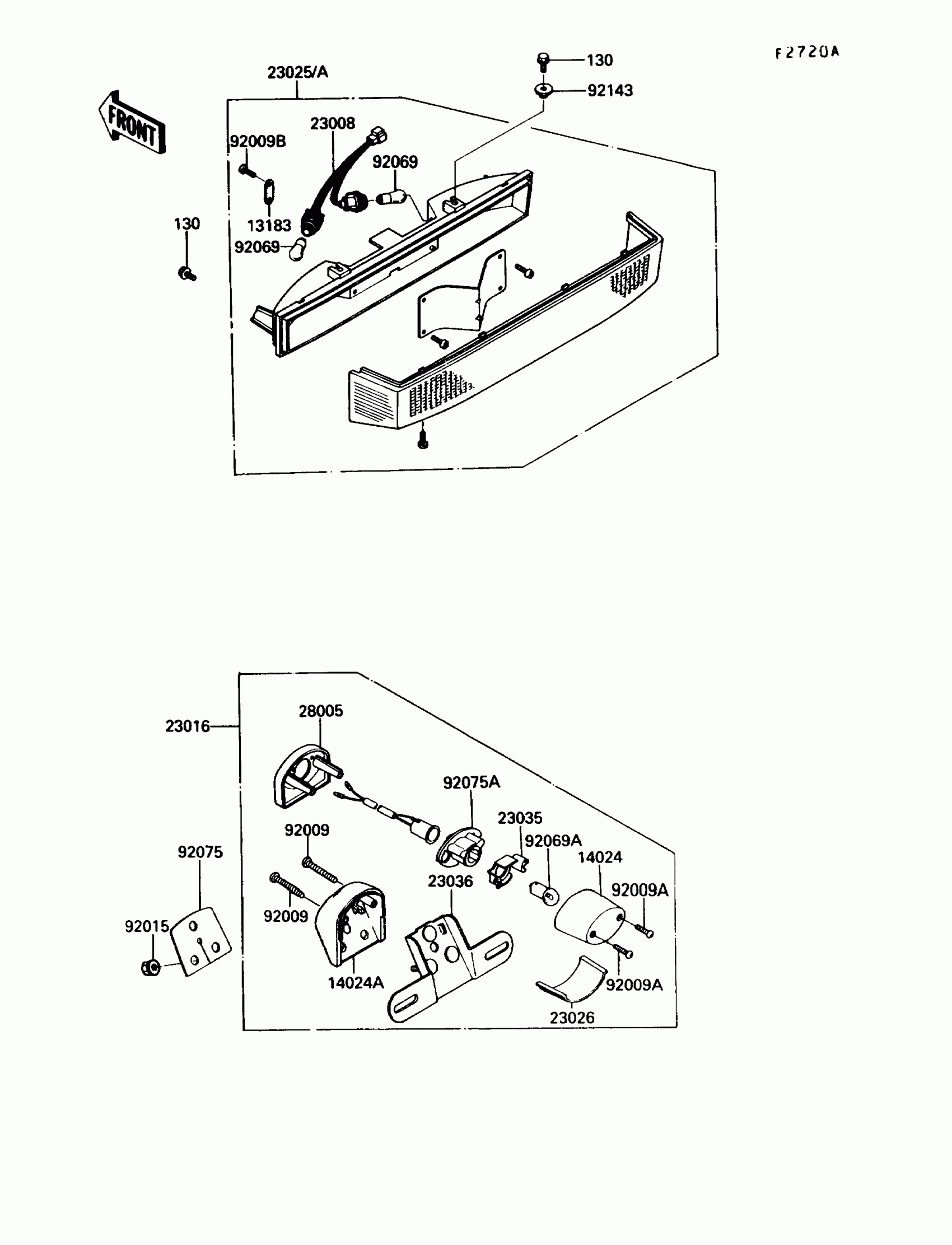

Kawasaki Voyager XII Tail Lamp(ZG1200-B2/B3/B4/B5) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130C0620

Unavailable

13183

PLATE,TAIL LAMP

13169-1680

$4.24

14024

COVER,LICENSE LAMP

14025-1725

$17.20

14024A

COVER,LICENSE LAMP

14025-1728

$59.51

23008

SOCKET-ASSY,TAIL LAMP

23008-1300

$50.18

23016

LAMP-ASSY,LICENSE

23016-1062

Unavailable

23025

LAMP-TAIL,M.C.SILVER

23025-1180-GA

$345.07

23026

LENS,LICENSE LAMP

23026-1064

$24.51

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

23036

BRACKET-TAIL LAMP

23036-1105

$33.01

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

92009

SCREW,TAPPING,5X40

92009-1263

$3.53

92009A

SCREW,TAPPING,4X20

92009-1378

$3.68

92009B

SCREW,TAPPING,4X12

92009-1395

$4.31

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER,LICENSE LAMP

92075-1676

$9.56

92075A

DAMPER,LICENSE LAMP

92075-1694

$23.12

92143

COLLAR,L=6.5

92143-1025

$4.67
