Description

Price

11045

BRACKET,SEPARATOR

11045-1245

$14.29

16126

VALVE,AIR

16126-1052

$35.06

16165

SEPARATOR

16165-1056

$93.57

44003

DAMPER-ASSY,SHOCKABSORBER,LH

44003-1682

$746.30

44003A

DAMPER-ASSY,SHOCKABSORBER,RH

44003-1683

$746.30

49006

BOOT,SHOCKABSORBER,BLACK

49006-1092

$71.83

51044

TUBE-ASSY,SHOCKABSORBER

51044-1079

$140.99

51044A

TUBE-ASSY,SHOCKABSORBER

51044-1080

$140.99

51044B

TUBE-ASSY,SHOCKABSORBER

51044-1081

$122.53

56040

LABEL-WARNING

56040-1030

Unavailable

92015

NUT,10MM

92015-1360

$4.45

92015A

NUT,14MM

92016-044

$7.71

92022

WASHER,10.5X30X2.3,BLACK

92022-1302

$7.24

92037

CLAMP,HARNESS

92037-1820

$7.31

92055

"0" RING,AIR VALVE

92055-1094

$1.28

92072

BAND,L=50

92072-066

$16.08

92075

DAMPER,SHOCKABSORBER

92075-1141

$14.90

92075A

DAMPER,SHOCKABSORBER

92075-1586

$14.90

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,10X35

130J1035

$5.81

461

WASHER-SPRING,10MM,BLACK

461K1000

$2.44

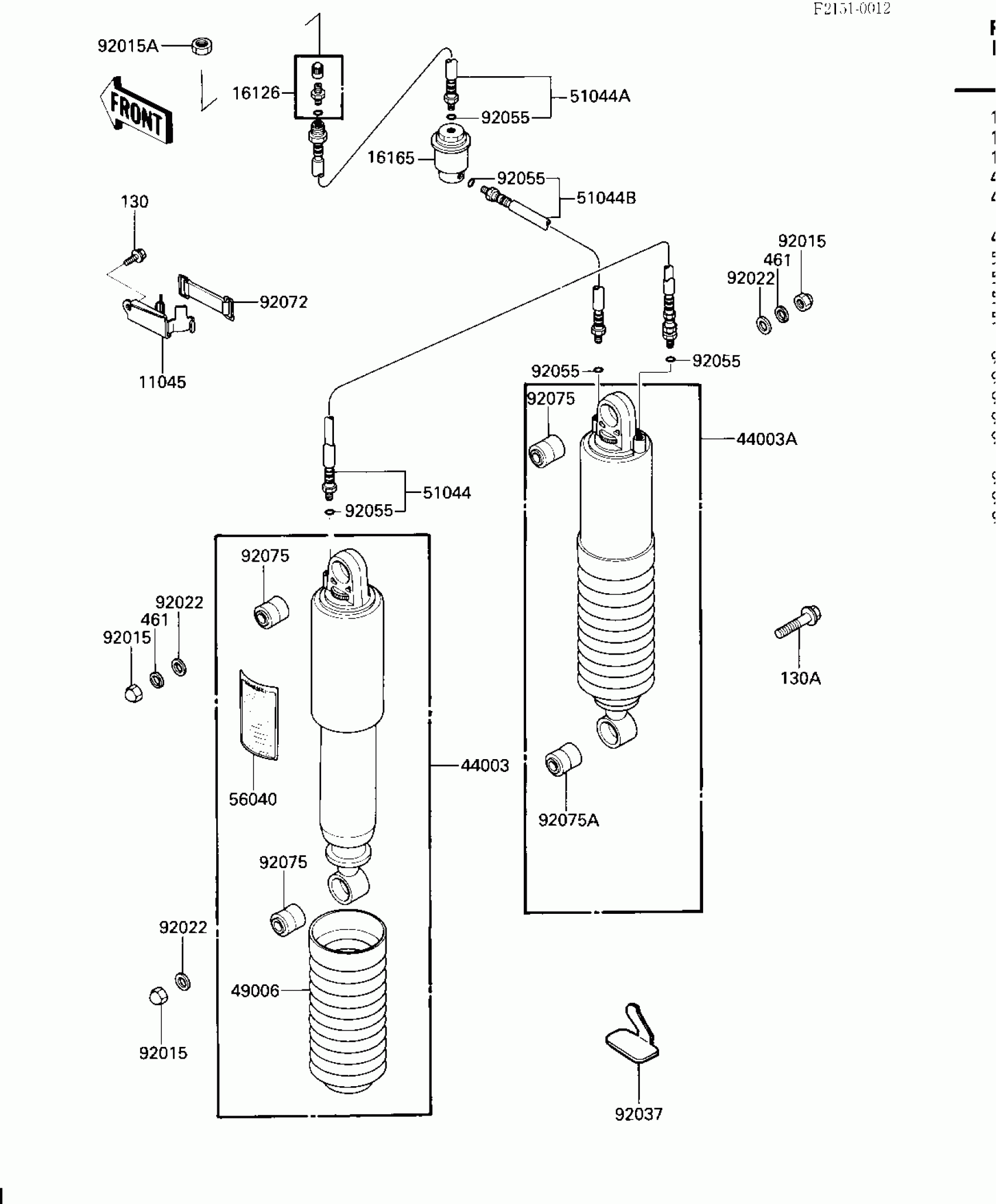

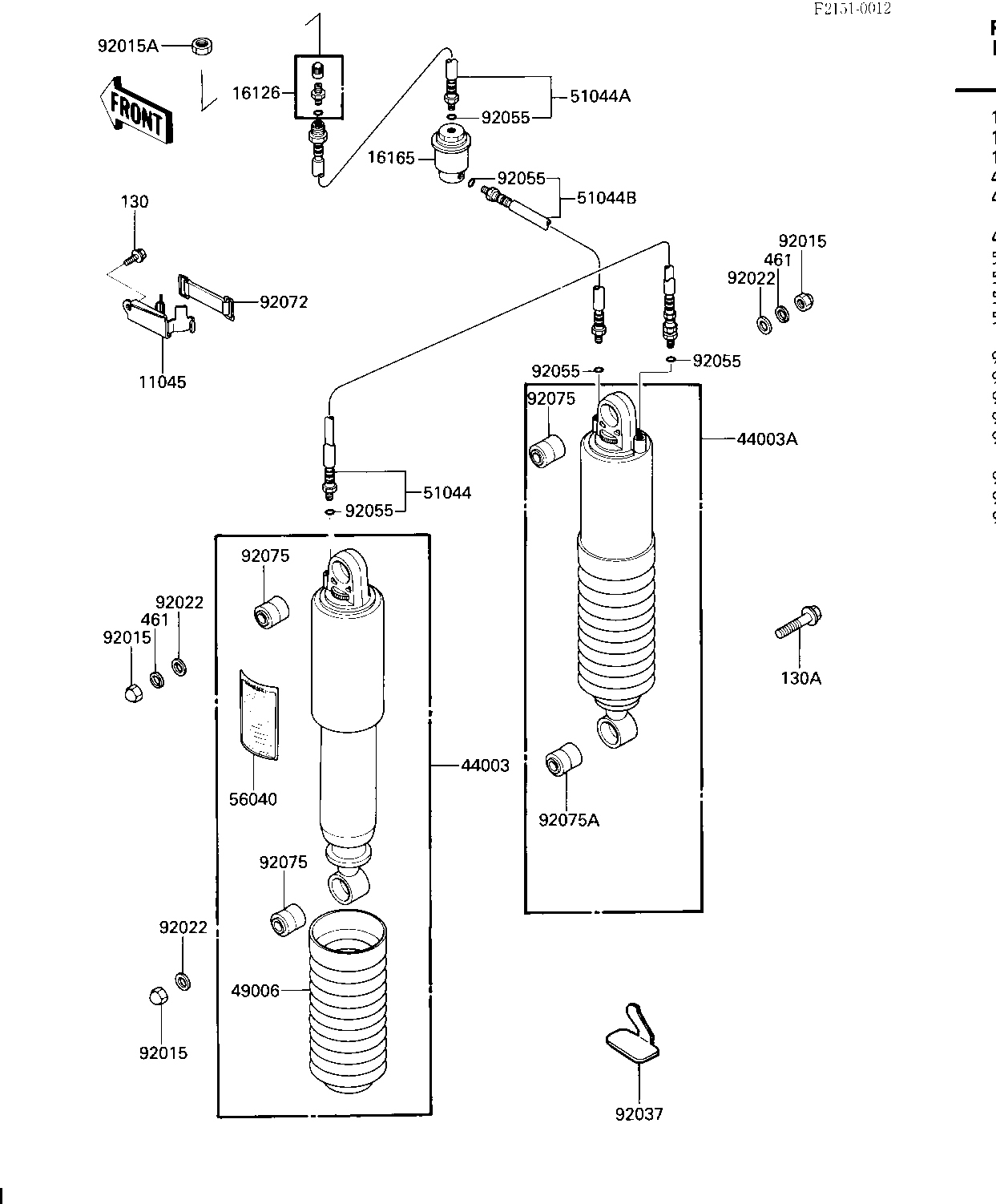

Kawasaki Voyager XII SHOCK ABSORBERS Diagram

BRACKET,SEPARATOR

VALVE,AIR

SEPARATOR

DAMPER-ASSY,SHOCKABSORBER,LH

DAMPER-ASSY,SHOCKABSORBER,RH

BOOT,SHOCKABSORBER,BLACK

TUBE-ASSY,SHOCKABSORBER

TUBE-ASSY,SHOCKABSORBER

TUBE-ASSY,SHOCKABSORBER

LABEL-WARNING

NUT,10MM

NUT,14MM

WASHER,10.5X30X2.3,BLACK

CLAMP,HARNESS

"0" RING,AIR VALVE

BAND,L=50

DAMPER,SHOCKABSORBER

DAMPER,SHOCKABSORBER

BOLT-FLANGED,6X10

BOLT-FLANGED,10X35

WASHER-SPRING,10MM,BLACK
