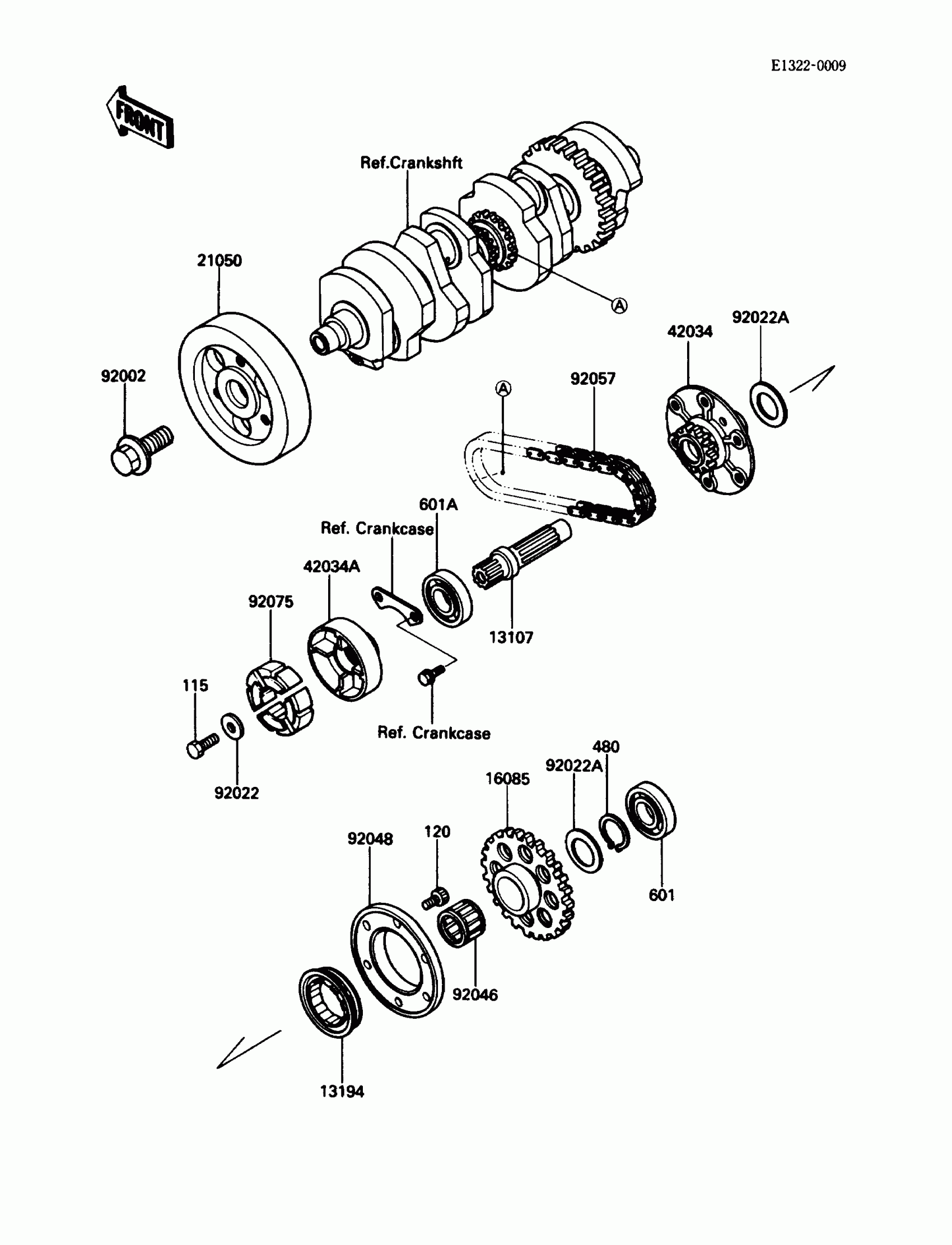

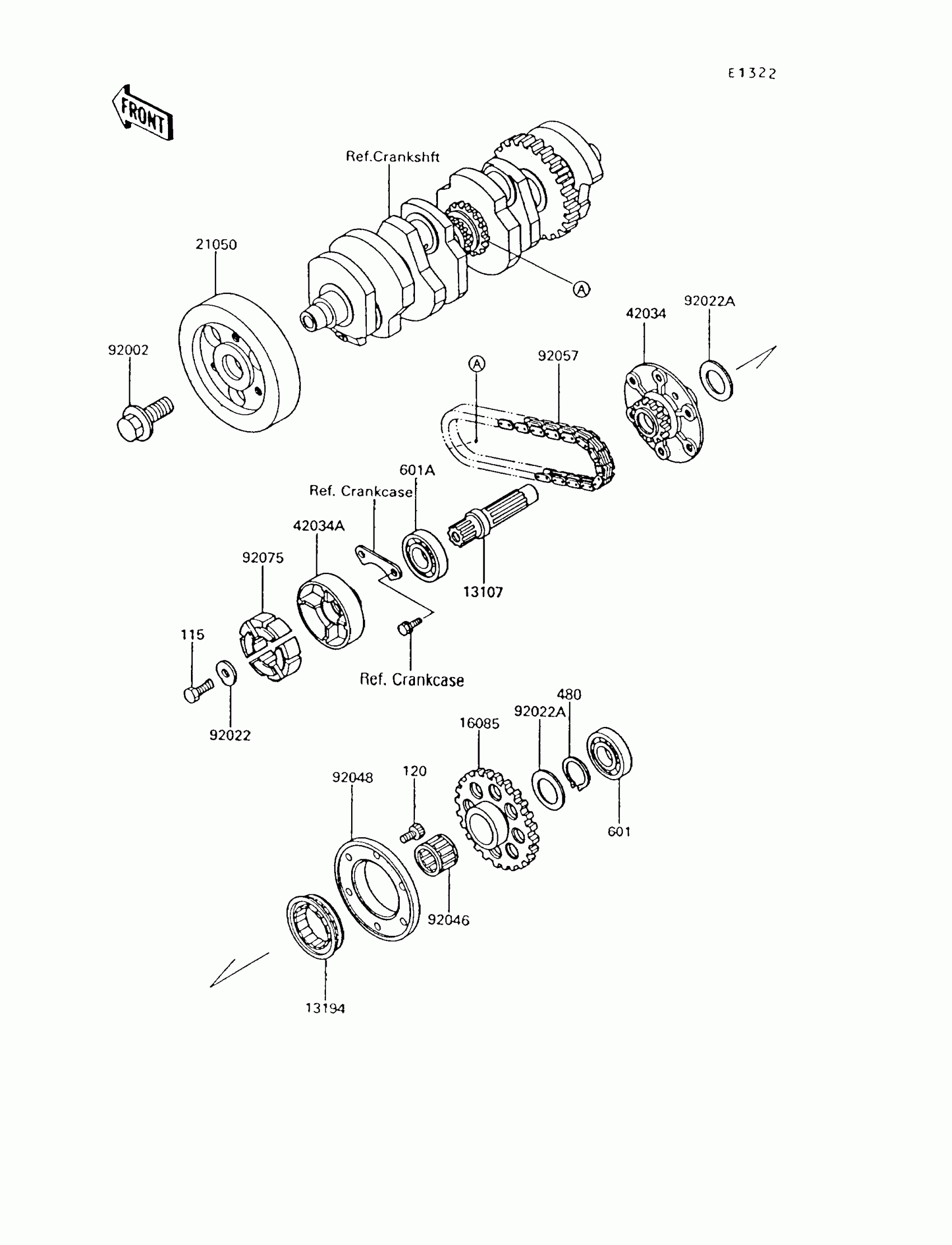

Kawasaki Voyager XII Secondary Shaft Diagram

Description

Price

115

BOLT,8X20

115G0820

Unavailable

120

BOLT-SOCKET,6X12

120P0612

Unavailable

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

601

BEARING-BALL

601A6203Z

$18.73

601A

BEARING-BALL,#6204C3

601B6204

$10.33

13107

SHAFT

13107-1192

$139.17

13194

CLUTCH-ONEWAY

13194-1076

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1152

$76.01

21050

FLYWHEEL

21050-1117

$206.97

42034

COUPLING

42034-1082

$201.36

42034A

COUPLING

42034-1083

$87.97

92002

BOLT,14X36

92002-1862

$17.51

92022

WASHER,8X22X3

92022-1518

$3.95

92022A

WASHER,25.3X32X0.5

92022-225

$4.18

92046

BEARING-NEEDLE,K253020S

92046-1022

$21.49

92048

RACE,ONEWAY CLUTCH

92048-1065

$80.24

92057

CHAIN,GENERATOR

92057-1276

$154.25

92075

DAMPER,COUPLING

92075-1790

$9.29
