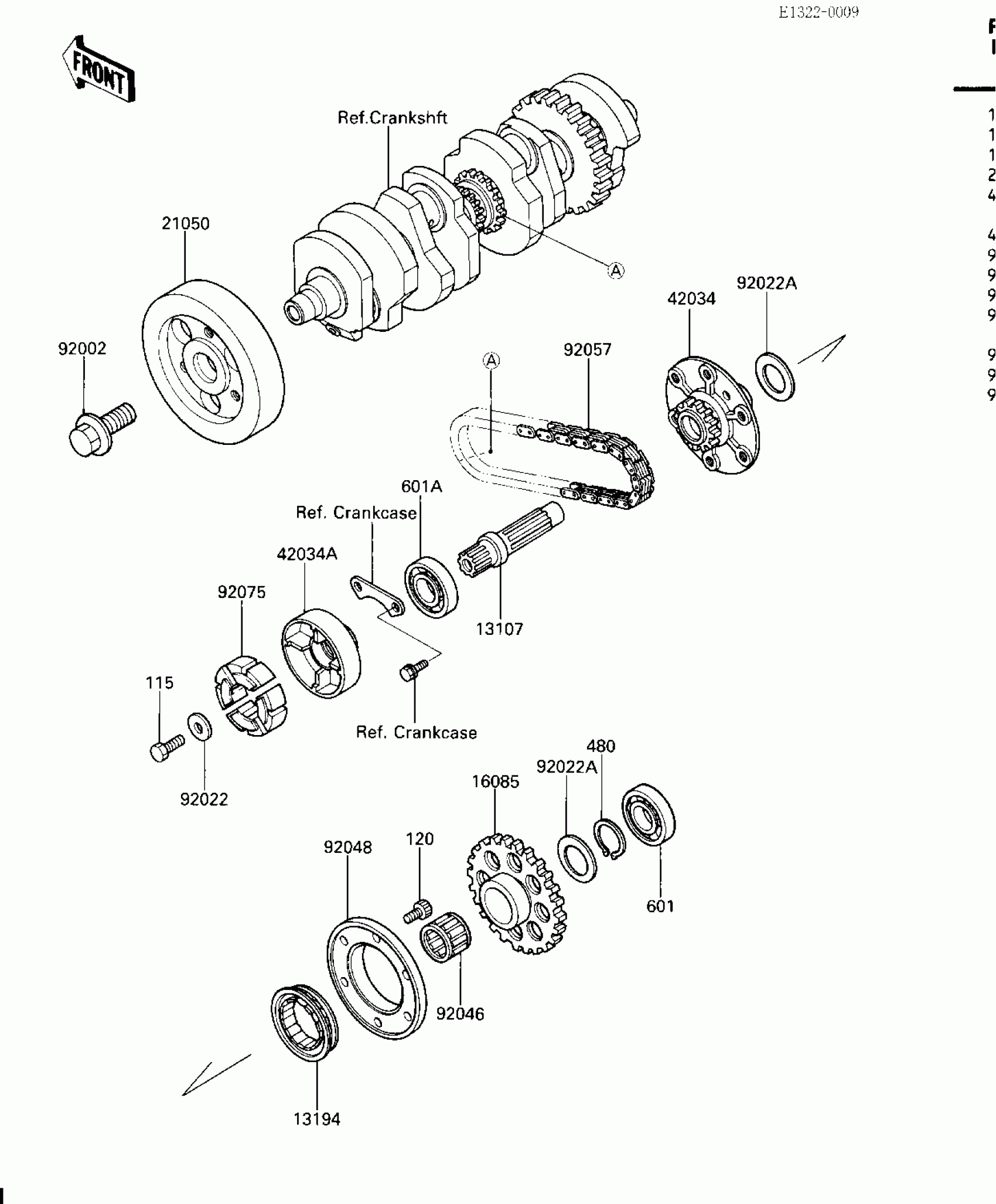

Kawasaki Voyager XII SECONDARY SHAFT/STARTER CLUTCH Diagram

Description

Price

13107

SHAFT

13107-1192

$136.31

13194

CLUTCH-ONEWAY

13194-1067

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1152

$74.58

21050

FLYWHEEL

21050-1117

$202.69

42034

COUPLING

42034-1082

$197.17

42034A

COUPLING

42034-1083

$86.31

92002

BOLT,14X36

92002-1862

$18.72

92022

WASHER,8X22X3

92022-1518

$4.43

92022A

WASHER,25.3X32X0.5

92022-225

$5.52

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92048

RACE,ONEWAY CLUTCH

92048-1065

$78.73

92057

CHAIN,GENERATOR

92057-1276

$151.14

92075

DAMPER,COUPLING

92075-1790

$9.59

115

UNAVAILABLE IN PRICE BOOK

115G1820

Unavailable

120

UNAVAILABLE IN PRICE BOOK

120PQ612

Unavailable

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

601

BEARING-BALL

601A6203Z

$20.06

601A

BEARING-BALL,#6204C3

601B6204

$13.65
