SADDLEBAGS

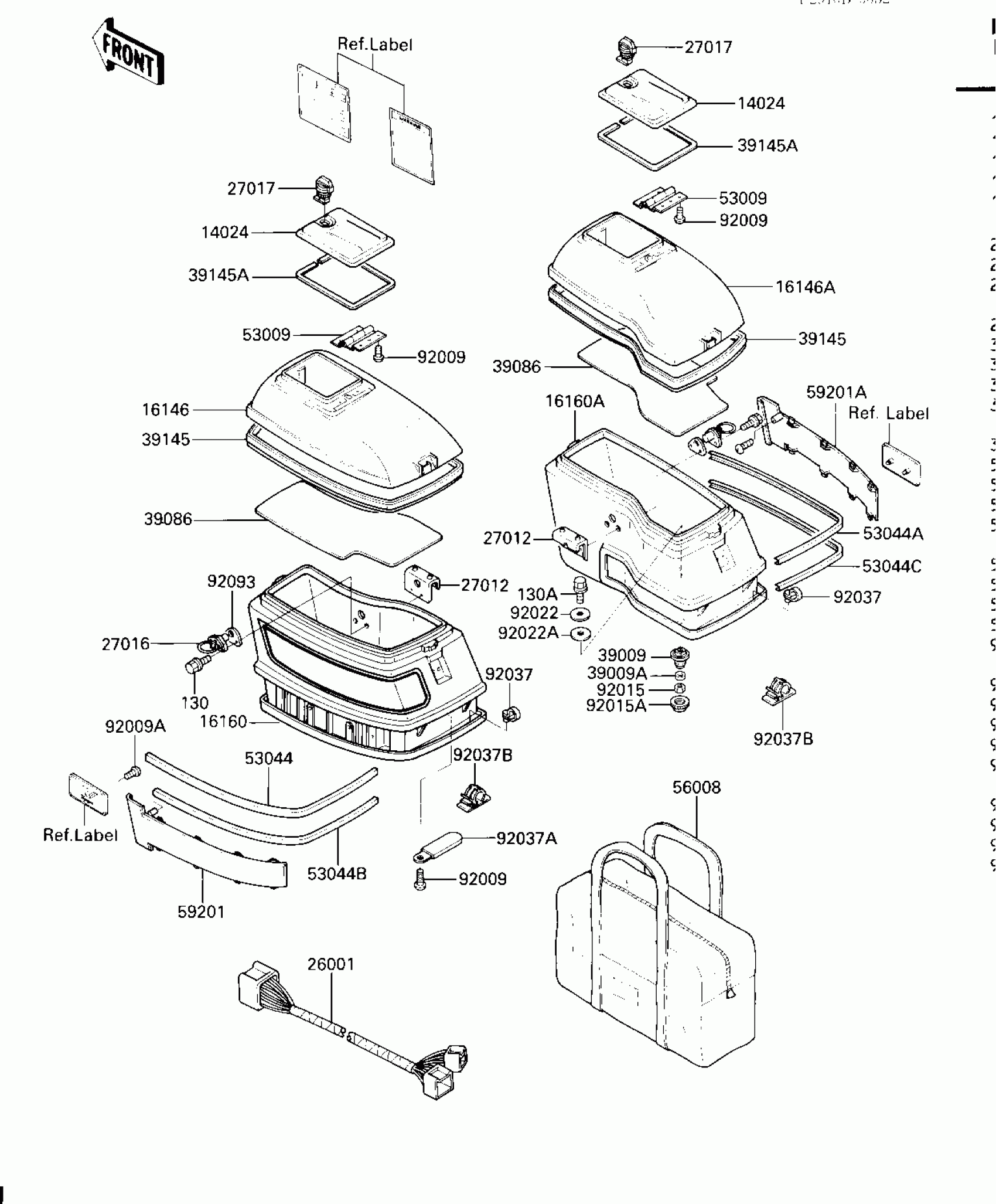

Kawasaki Voyager XII SADDLEBAGS Diagram
#
14024
COVER,SIDE BAG
14024-1178
$37.36
16146
COVER-ASSY,SIDE BAG,L
16146-1063-P5
$611.72
16146A
COVER-ASSY,SIDE BAG,R
16146-1064-P5
Unavailable
16160
BODY,SIDE BAG,LH,RED/
16160-5014-V4
$1,721.10
16160A
BODY,SIDE BAG,RH,RED/
16160-5015-V4
$1,562.27
26001
HARNESS,SIDE BAG
26001-1757
$21.58
27012
HOOK,SIDE BAG
27012-1339
$33.69
27016
LOCK-ASSY,BAG
27016-1054
$86.27
27017
LOCK,BAG
27017-1126
$49.23
39009
BLOCK-MOUNT,BAG
39009-1051
$20.97
39009A
BLOCK-MOUNT,BAG
39009-1052
$5.90
39086
PAD-STORAGE,BAG
39086-1052
$23.96
39145
TRIM-SEAL,SIDE BAG
39145-1068
$45.01
39145A
TRIM-SEAL,SIDE BAG
39145-1071
$9.33
53009
HINGE,SIDE BAG
53009-1062
$35.08
53044
TRIM,SIDE BAG,UPP,LH
53044-1143
$47.89
53044A
TRIM,SIDE BAG,UPP,RH
53044-1144
$47.89
53044B
TRIM,SIDE BAG,LWR,LH
53044-1145
$52.58
53044C
TRIM,SIDE BAG,LWR,RH
53044-1146
$43.70
56008
BAG
56008-1055
$161.42
59201
BUMPER,LH
59201-1051
$37.47
59201A
BUMPER,RH
59201-1052
$37.55
92009
SCREW,TAPPING,4X10
92009-1040
$3.69
92009A
SCREW,TAPPING,4X14
92009-1429
$3.89
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,BLOCK MOUNT,24MM
92015-1628
$7.69
92022
WASHER,7X28X1.6,BLACK
92022-1392
$2.61
92022A
WASHER,5X28X1
92022-1813
$4.77
92037
CLAMP,SPEED,L=43
92037-1290
$7.34
92037A
CLAMP,HARNESS
92037-1726
$5.96
92037B
CLAMP,HARNESS
92037-1793
$8.19
92093
SEAL,LOCK
92093-1209
$6.04
130
BOLT-FLANGED,6X16
130C0616
$0.63
130A
BOLT-FLANGED
130C0630
Unavailable
