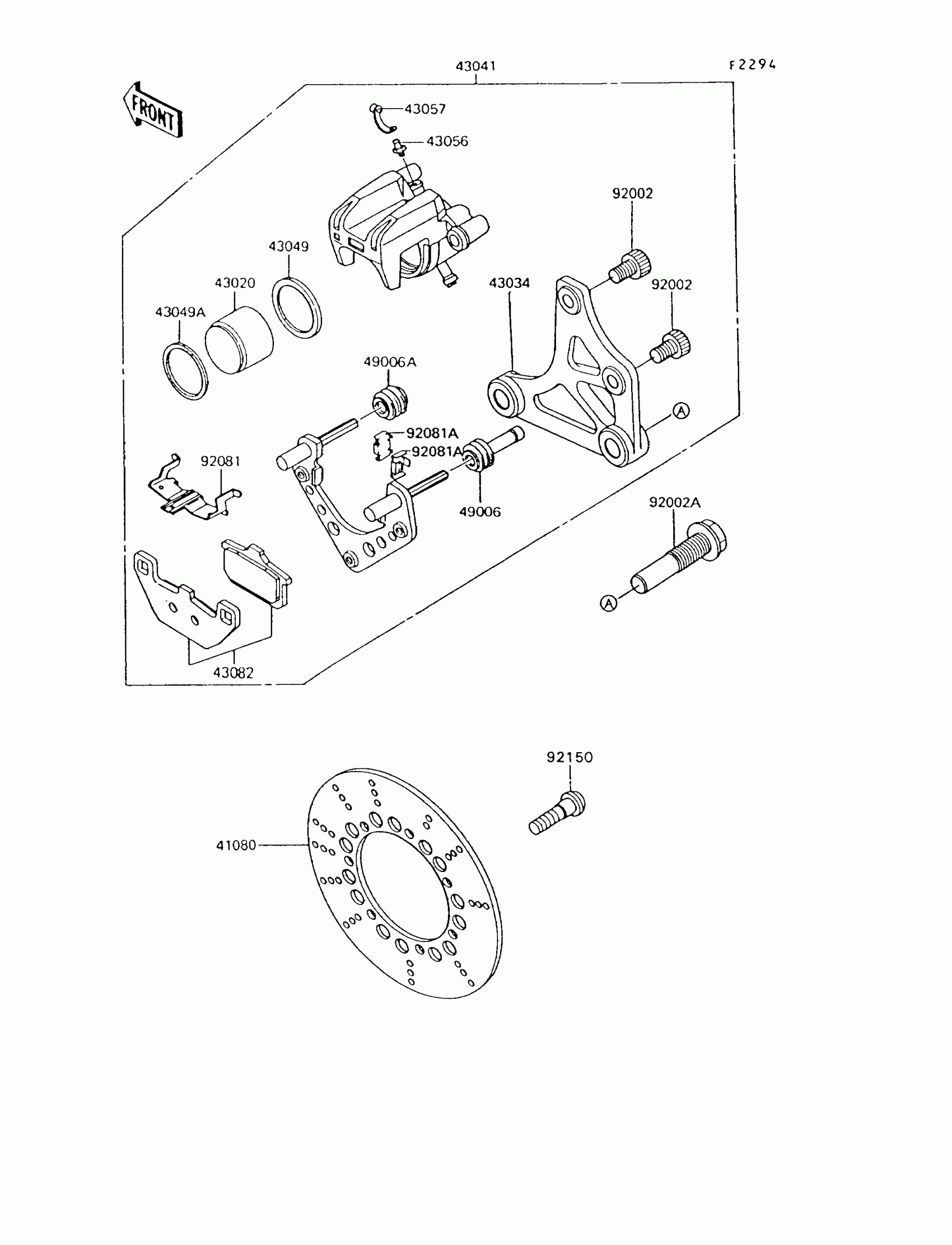

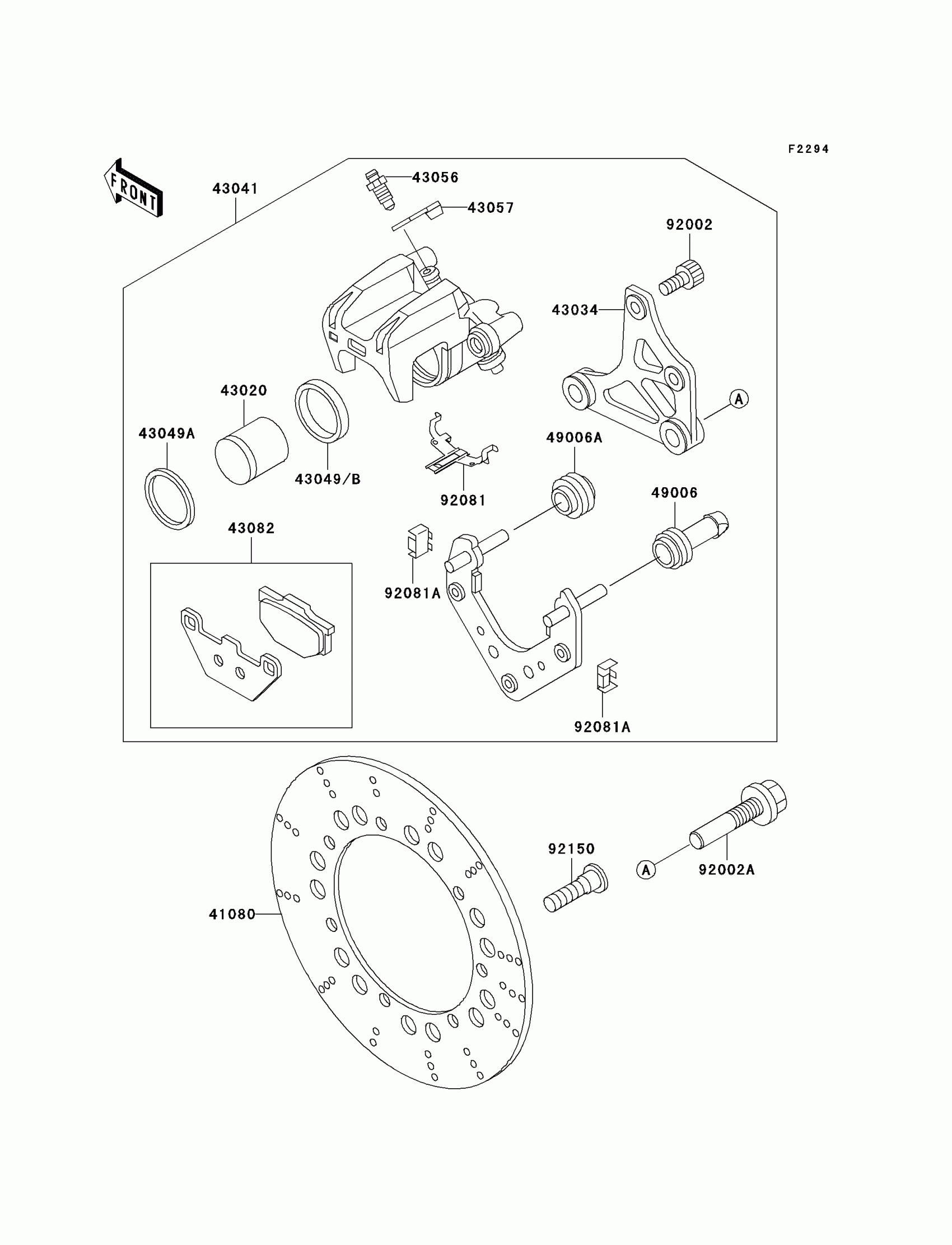

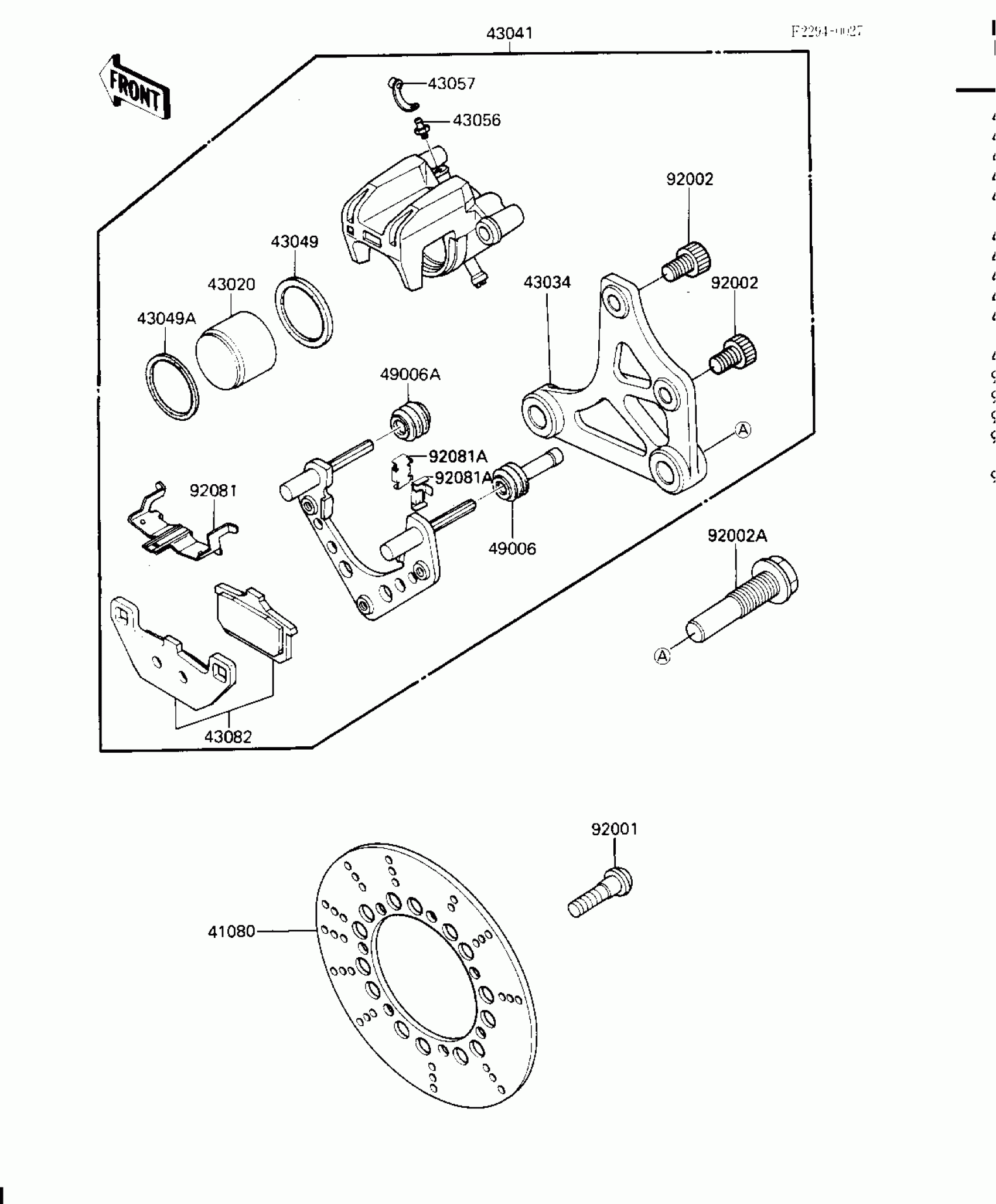

Kawasaki Voyager XII Rear Brake Diagram

Description

Price

41080

DISC,RR

41080-1164

$555.02

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43034

HOLDER-BRAKE,REAR CALIPER,SIL

43034-1168-GN

$336.59

43041

CALIPER-ASSY,RR,SILVER

43041-1758-GN

$396.78

43049A

PACKING,PISTON

43049-1028

$12.65

43049B

PACKING,PISTON SEAL

43049-1098

$13.90

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1029

$58.88

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT

92002-1524

$11.34

92002A

BOLT,18MM

92002-1665

$32.04

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
