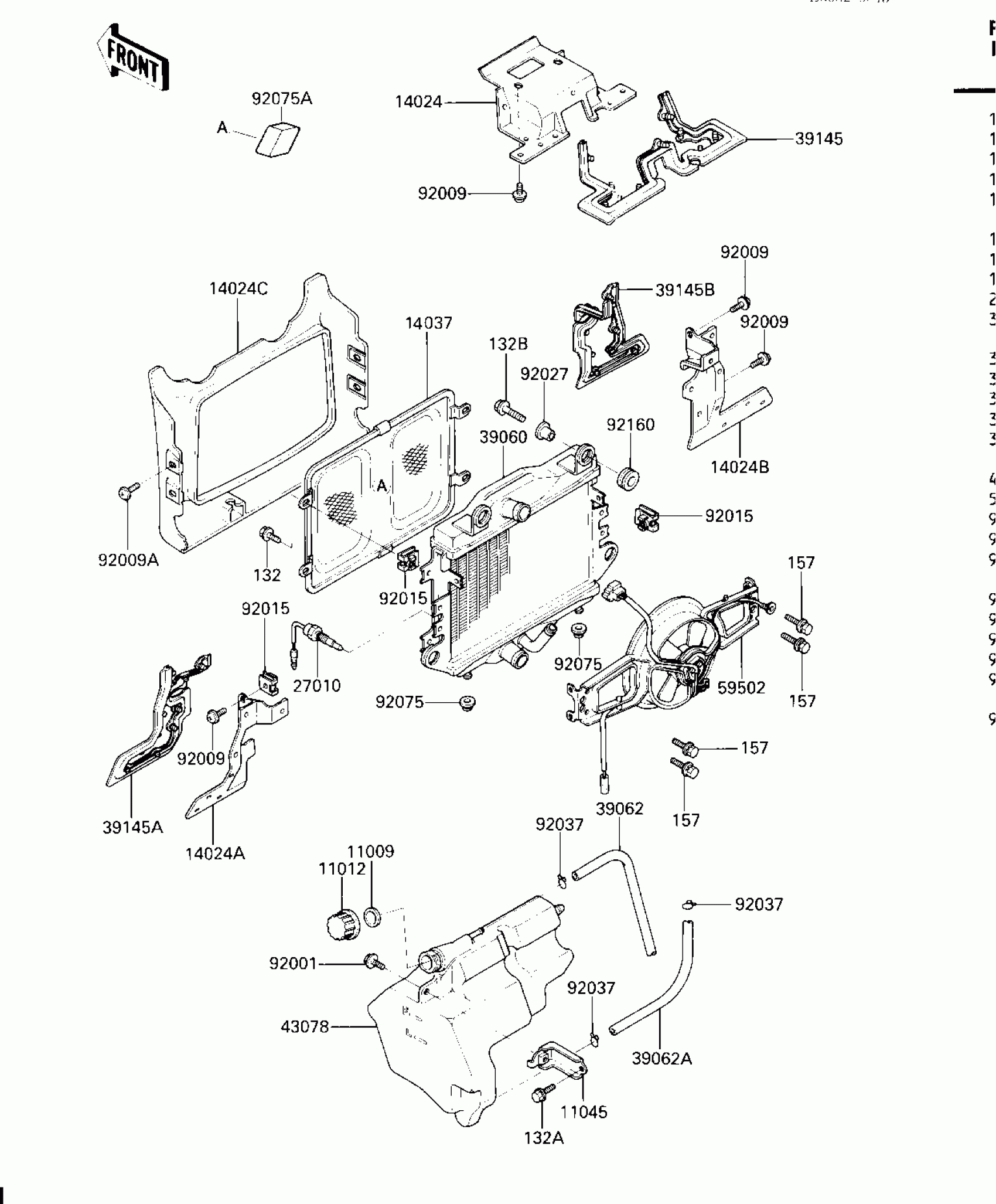

Kawasaki Voyager XII RADIATOR/FAN/COOLANT TANK Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11045

BRACKET,RESERVOIR

11044-1744

$8.59

14024

COVER,RADIATOR UPP

14024-1158

$121.29

14024A

COVER,RADIATOR,LH

14024-1159

$115.64

14024B

COVER,RADIATOR,RH

14024-1160

$115.64

14024C

COVER,RADIATOR,L.V.RE

14024-1293-P5

Unavailable

14037

SCREEN

14037-1076

$142.87

27010

SWITCH,FAN

27010-1180

$136.95

39060

RADIATOR

39060-1066

$781.80

39062

HOSE-COOLING,RESERVOIR

39062-1220

$21.40

39062A

HOSE-COOLING,5.5X10.5X1160

39062-1155

$38.54

39145

TRIM-SEAL

39145-1061

$54.68

39145A

TRIM-SEAL,COVER,LH

39145-1063

$55.20

39145B

TRIM-SEAL,COVER,RH

39145-1065

$45.88

43078

RESERVOIR

43078-1067

Unavailable

59502

FAN-ASSY

59502-1060

$864.12

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92009

SCREW,6X18

92009-1663

Unavailable

92009A

SCREW,6X14

92009-1288

$2.99

92015

NUT

92015-1487

$3.64

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92037

CLAMP,TUBE

92037-147

$5.61

92075

DAMPER,RADIATOR GUARD

92075-1469

$5.42

92075A

DAMPER,SCREEN

92075-1981

$3.64

92160

DAMPER

92160-1007

$4.18

132

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132B

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

157

BOLT-WSP

157J0612

$2.31
