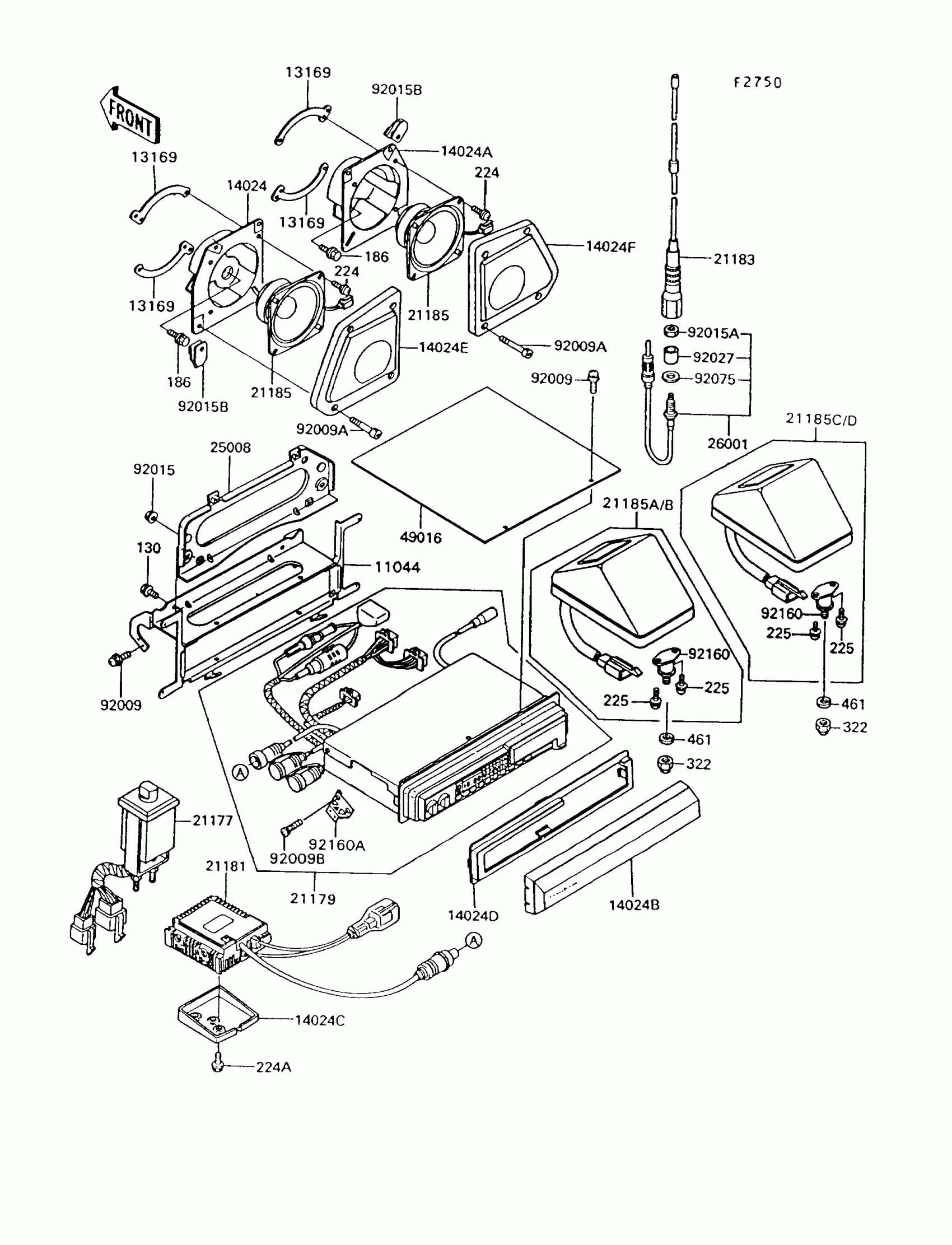

Find the part on the Other diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki Voyager Xii Other Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

186

BOLT-UPSET-WP

186D0612

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0516

1
Out of stock

224A

SCREW-PAN-WP-CROS

224D0512

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X12

225D0412

1
Out of stock

322

NUT-6MM

322N0600

1

$1.00

In stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

11044

BRACKET,AUDIO

11044-1721

1

$91.17

In stock

13169

PLATE,SPEAKER

13169-1655

1

$12.15

In stock

14024

COVER,SPEAKER,LH

14024-1201

1
Out of stock

14024A

COVER,SPEAKER,RH

14024-1202

1
Out of stock

14024B

COVER,TUNER

14024-1203

1
Out of stock

14024C

COVER,AMPLIFIER

14024-1304

1
Out of stock

14024D

COVER

14024-1326

1
Out of stock

14024E

COVER,SPEAKER,LH

14024-1508

1
Out of stock

14024F

COVER,SPEAKER,RH

14024-1509

1
Out of stock

21177

CONTROLLER

21177-1051

1

$177.27

In stock

21179

RADIO-TUNER

21179-1052

1

$2,705.84

In stock

21181

AMPLIFIER

21181-1054

1

$327.53

In stock

21183

ANTENNA,ROD

21183-1054

1
Out of stock

21185

SPEAKER,FR

21185-1056

1
Out of stock

21185B

SPEAKER,RR,LH,P.T.GREEN

21185-1057-SM

1

$647.87

In stock

21185D

SPEAKER,RR.RH,P.T.GREEN

21185-1058-SM

1

$647.87

In stock

25008

BRACKET-METER

25008-1125

1

$49.20

In stock

26001

HARNESS,ANTENNA

26001-1794

1
Out of stock

49016

COVER-SEAL,AUDIO

49016-1122

1

$11.58

In stock

92009

SCREW,PAN-CROS,W/WASHER

92009-1259

1
Out of stock

92009A

SCREW,SOCKET,4X20

92009-1450

1
Out of stock

92009B

SCREW,3X4

92009-1707

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,ANTENNA

92015-1313

1
Out of stock

92015B

NUT,4MM

92015-1593

1

$7.49

In stock

92027

COLLAR,ANTENNA

92027-1681

1

$1.85

In stock

92075

1

$3.17

In stock

92160

DAMPER,REAR SPEAKER

92160-1158

1

$6.93

In stock

92160A

DAMPER,RADIO TUNER

92160-1448

1
Out of stock
