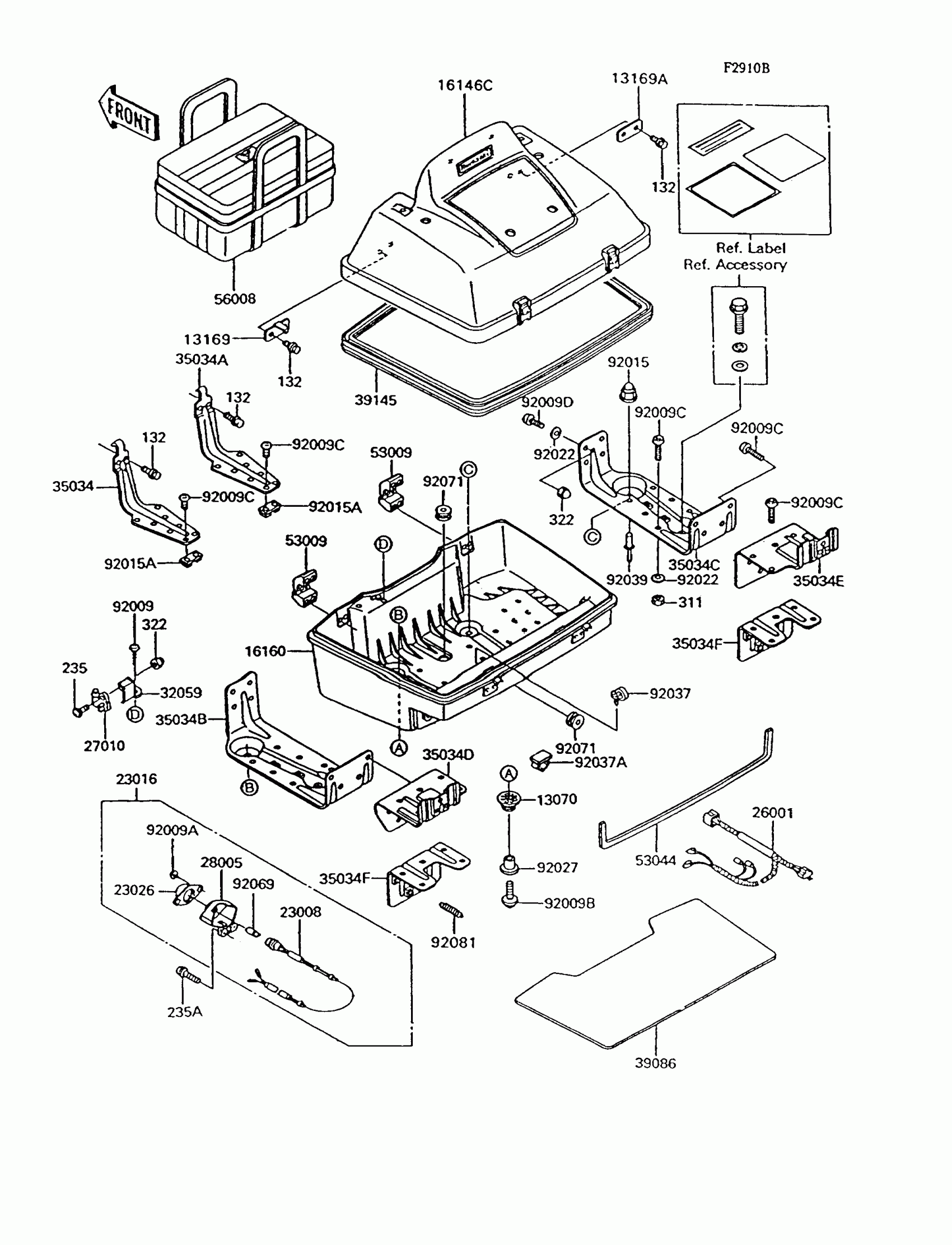

Kawasaki Voyager XII Accessory(Trunk)(ZG1200-B8/B9) Diagram

#

Description
Price

13070

GUIDE

13070-1149

Unavailable

13169

PLATE,HINGE,LH

13169-1635

$9.37

13169A

PLATE,HINGE,RH

13169-1636

$4.61

16146C

COVER-ASSY,TRUNK,GREEN/GREEN

16146-5042-SV

$1,320.66

16160

BODY,TRUNK,P.T.GREEN

16160-1140-SM

$1,333.05

23008

SOCKET-ASSY,TRUNK ROOM LAMP

23008-1295

Unavailable

23016

LAMP-ASSY,TRUNK ROOM

23016-1066

$74.81

23026

LENS,LAMP

23026-1054

$9.02

26001

HARNESS,TRUNK

26001-1758

$39.52

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

Unavailable

28005

BODY-LAMP,TRUNK ROOM

28005-1054

$12.90

32059

BRACKET-SWITCH

32059-1067

$8.00

35034

REINFORCE,HINGE,LH

35034-1213

$52.29

35034A

REINFORCE,HINGE,RH

35034-1214

$52.29

35034B

REINFORCE,BAG,LH

35034-1215

$95.53

35034C

REINFORCE,BAG,RH

35034-1216

$95.53

35034D

REINFORCE,TAIL,LH

35034-1217

$47.88

35034E

REINFORCE,TAIL,RH

35034-1218

$39.81

35034F

REINFORCE,TAIL,LWR

35034-1219

$39.52

39086

PAD-STORAGE,TRUNK

39086-1051

$50.58

39145

TRIM-SEAL,TRUNK

39145-1087

$76.37

53009

HINGE,TRUNK

53009-1071

$72.89

53044

TRIM,TAIL LAMP

53044-1142

$12.15

56008

BAG,INNER

56008-1060

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92009A

SCREW,TAPPING,4X12

92009-1381

$2.42

92009B

SCREW,6X28,BLACK

92009-1400

$4.18

92009C

SCREW,4X12

92009-1448

$3.90

92009D

SCREW,4X10

92009-1489

$4.15

92015

NUT,LOCK 6MM

92015-1262

$4.85

92015A

NUT,PLATE,4MM

92015-1620

$8.00

92022

WASHER,4.3X12X0.8

92022-1830

$2.56

92027

COLLAR

92027-195

$4.93

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92037A

CLAMP,HARNESS

92037-1793

$8.03

92039

RIVET

92039-1150

$3.53

92069

BULB,12V 3CP

92069-1066

$5.80

132

BOLT-FLANGED-SMALL,5X12

132J0512

Unavailable

235

SCREW-PAN-WP-CROS

235C0414

Unavailable

235A

SCREW-PAN-WP-CROS

235C0430

Unavailable

311

NUT-HEX

311C0400

$0.63

322

NUT-CAP,4MM

322C0400

Unavailable

92071

GROMMET

92071-1136

$7.29

92081

SPRING,HARNESS GUIDE

92081-1954

$16.12
