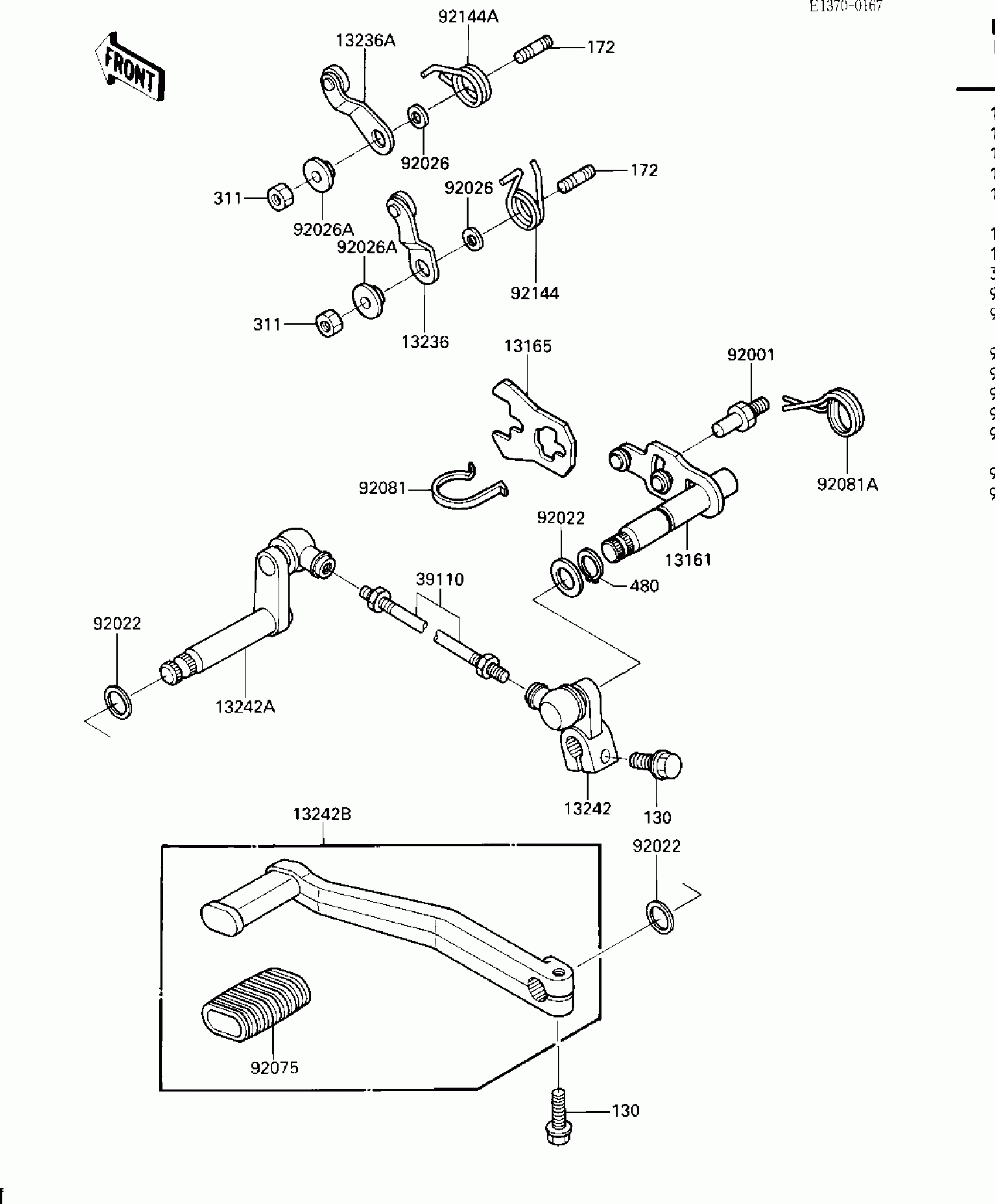

Kawasaki Voyager XII Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130P0620

$1.70

172

BOLT-STUD,6X12

172G0612

$0.85

311

NUT-HEX,6MM

311G0600

$2.19

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1146

$86.01

13165

PAWL

13165-1120

$14.10

13236

LEVER-COMP,NEUTRAL POSITION

13236-1143

Unavailable

13236A

LEVER-COMP,GEAR POSITION

13236-1144

Unavailable

13242

LEVER-ASSY-CHANGE

13242-1194

$51.21

13242A

LEVER-ASSY-CHANGE,LINK

13242-1208

$59.72

13242B

LEVER-ASSY-CHANGE,PEDAL

13242-1237

Unavailable

39110

ROD-ASSY-TIE,L=90,BLACK

39110-1008

$13.98

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92022

WASHER,13.3X18X1

92022-1772

$4.46

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92026A

SPACER

92026-1217

$5.52

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

$10.19

92081A

SPRING,GEAR LEVER

92081-1942

$5.17

92144

SPRING

92144-1029

$7.77

92144A

SPRING,NEUTRAL LEVER

92144-1762

$5.17
