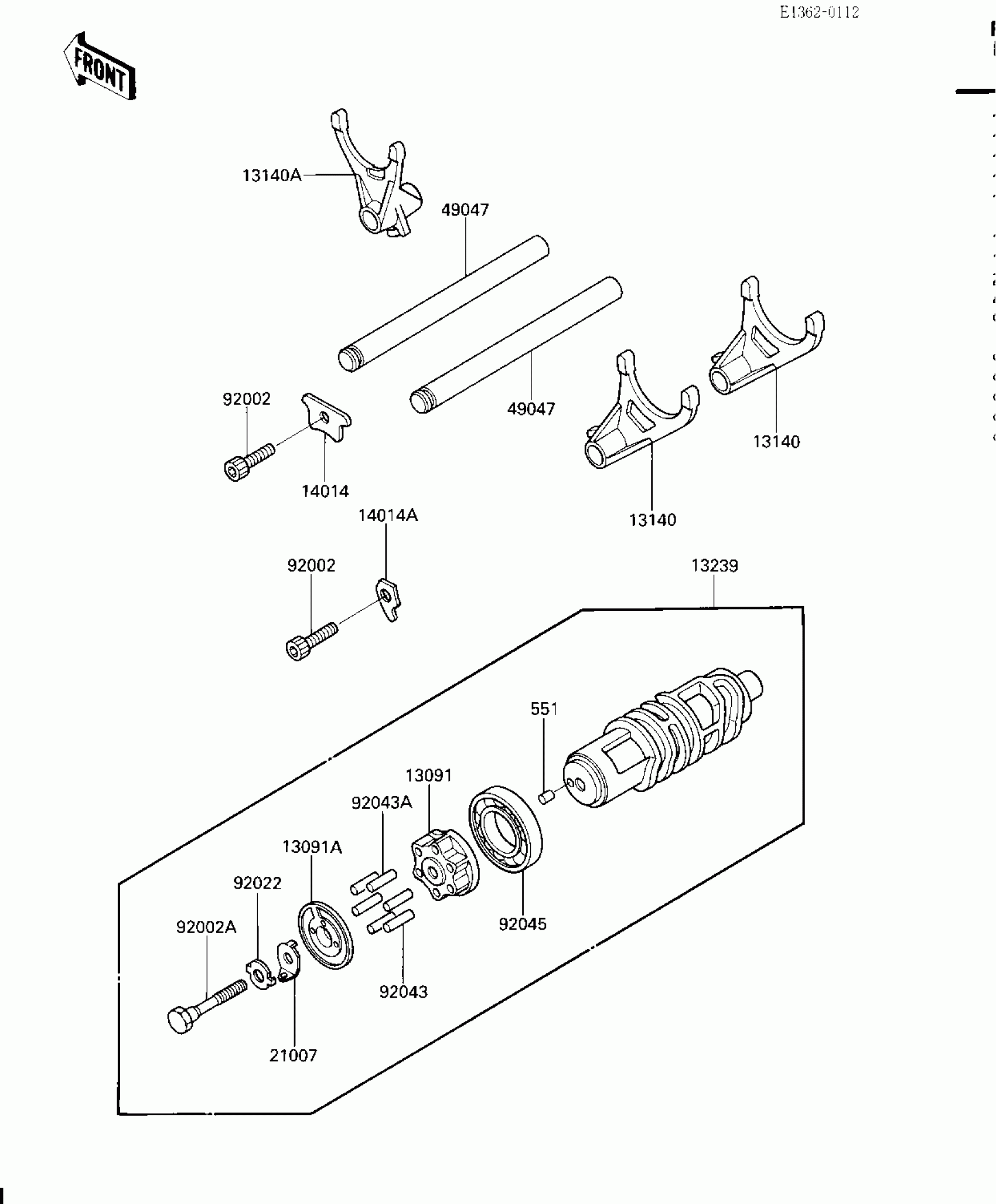

Kawasaki Voyager XII GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER

13091-1409

$53.65

13091A

HOLDER,CHANGE DRUM PIN

13091-1442

$23.99

13140

FORK-SHIFT

13140-1146

$109.81

13140A

FORK-SHIFT

13140-1147

$109.81

13239

DRUM-ASSY-CHANGE

13239-1129

$298.30

14014

PLATE-POSITION

14014-1073

$8.12

14014A

PLATE-POSITION

14014-1074

$5.88

21007

ROTOR,TOP SWITCH

21007-1192

$8.50

49047

ROD-SHIFT

49047-1055

$34.20

92002

BOLT,SOCKET,6X14

92002-1192

$5.59

92002A

BOLT,6X45

92002-1873

$11.34

92022

WASHER

92022-1824

$5.96

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,16005

92045-1045

$28.25

551

PIN-DOWEL,4X8

551A0408

$0.78
