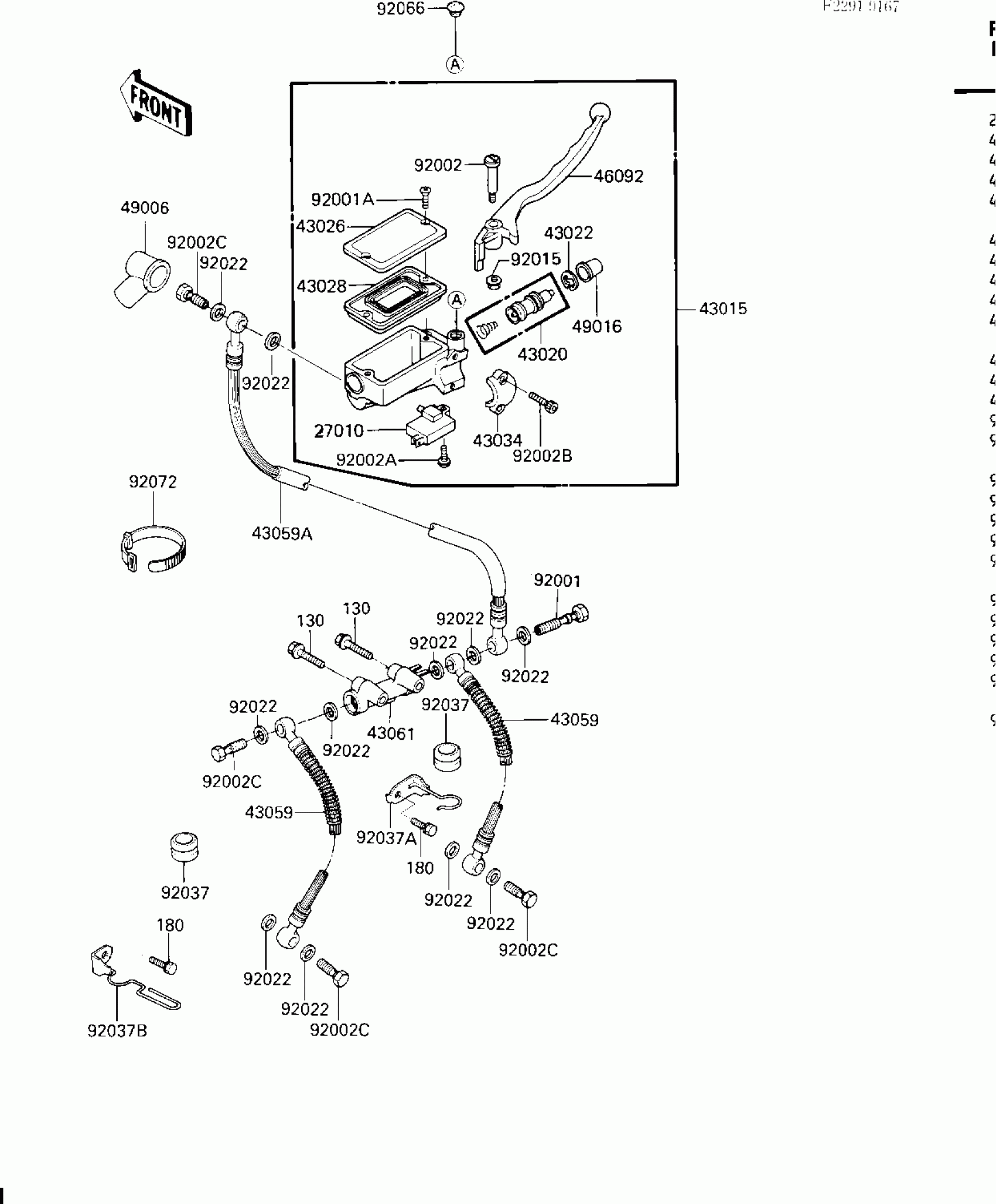

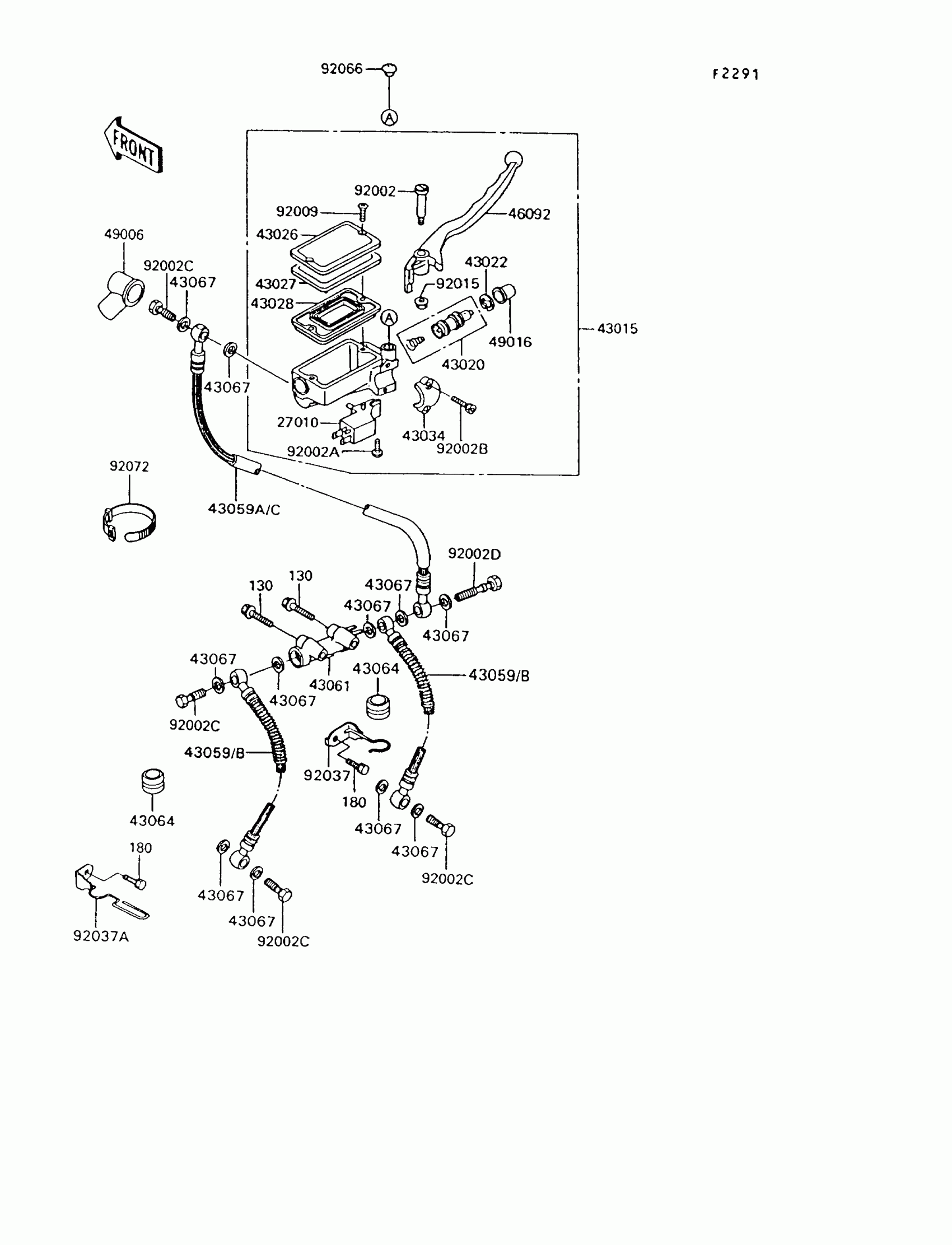

Kawasaki Voyager XII Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X60

130G0660

$4.16

180

BOLT-UPSET-WS

180C0612

$4.32

27010

SWITCH,CRUISE CONTROL CANCEL

27010-1232

$50.19

43015

CYLINDER-ASSY-MASTER,FR

43015-1506

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43059

HOSE-BRAKE,FR

43059-1792

Unavailable

43059A

HOSE-BRAKE,FR

43059-1793

$128.37

43061

JOINT-BRAKE

43061-1004

$72.14

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43067

WASHER,10.5X15X1.5

43067-001

$2.15

46092

LEVER-GRIP,FRONT BRAKE

46092-1143

$38.27

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92002D

BOLT,OIL,L=37

92002-1909

$11.83

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92037

CLAMP,BRAKE HOSE,RH

92037-1217

$13.79

92037A

CLAMP,BRAKE HOSE,LH,BLACK

92037-1296

$29.22

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92072

BAND,L=186

92072-056

$5.00
