Front Bevel Gear

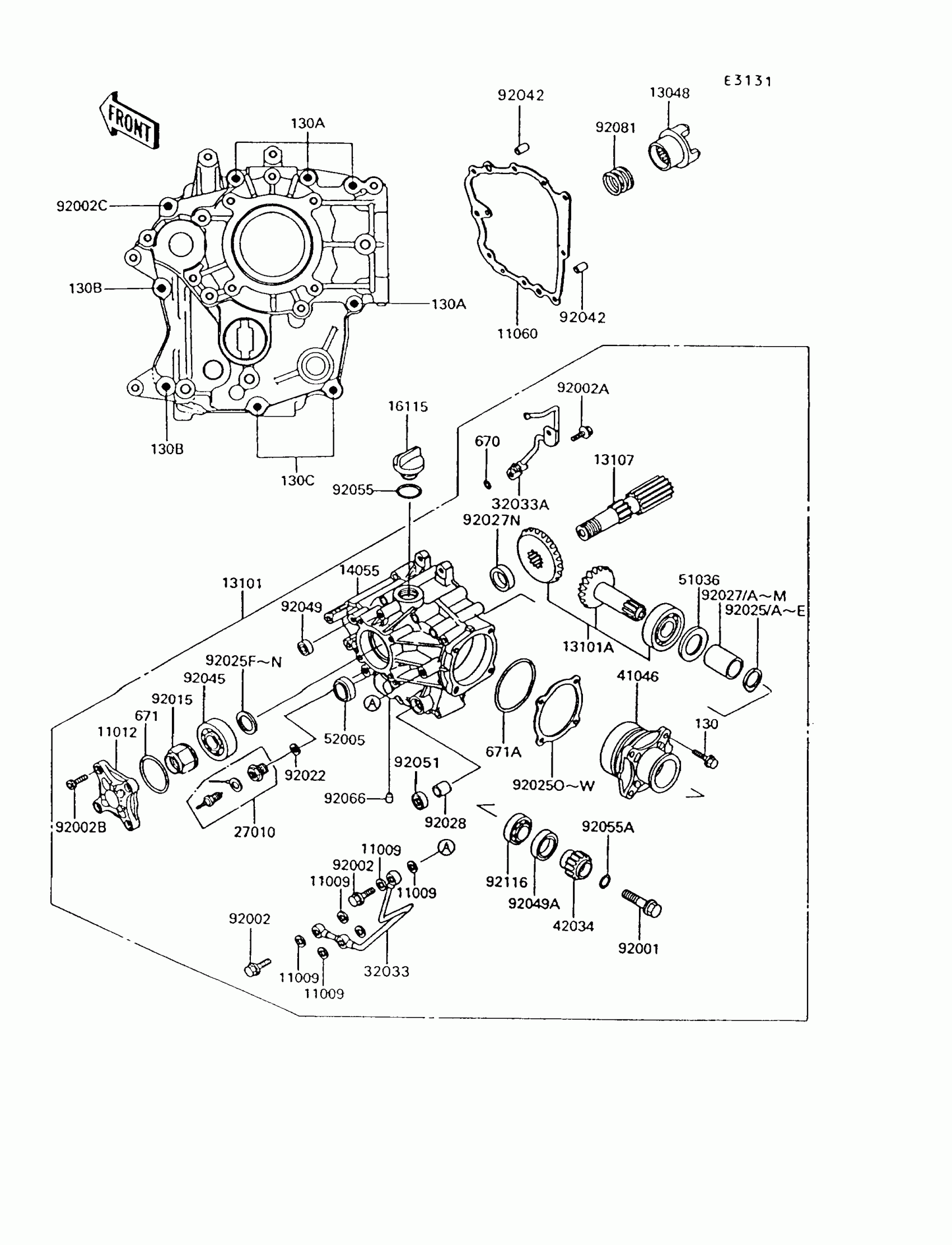

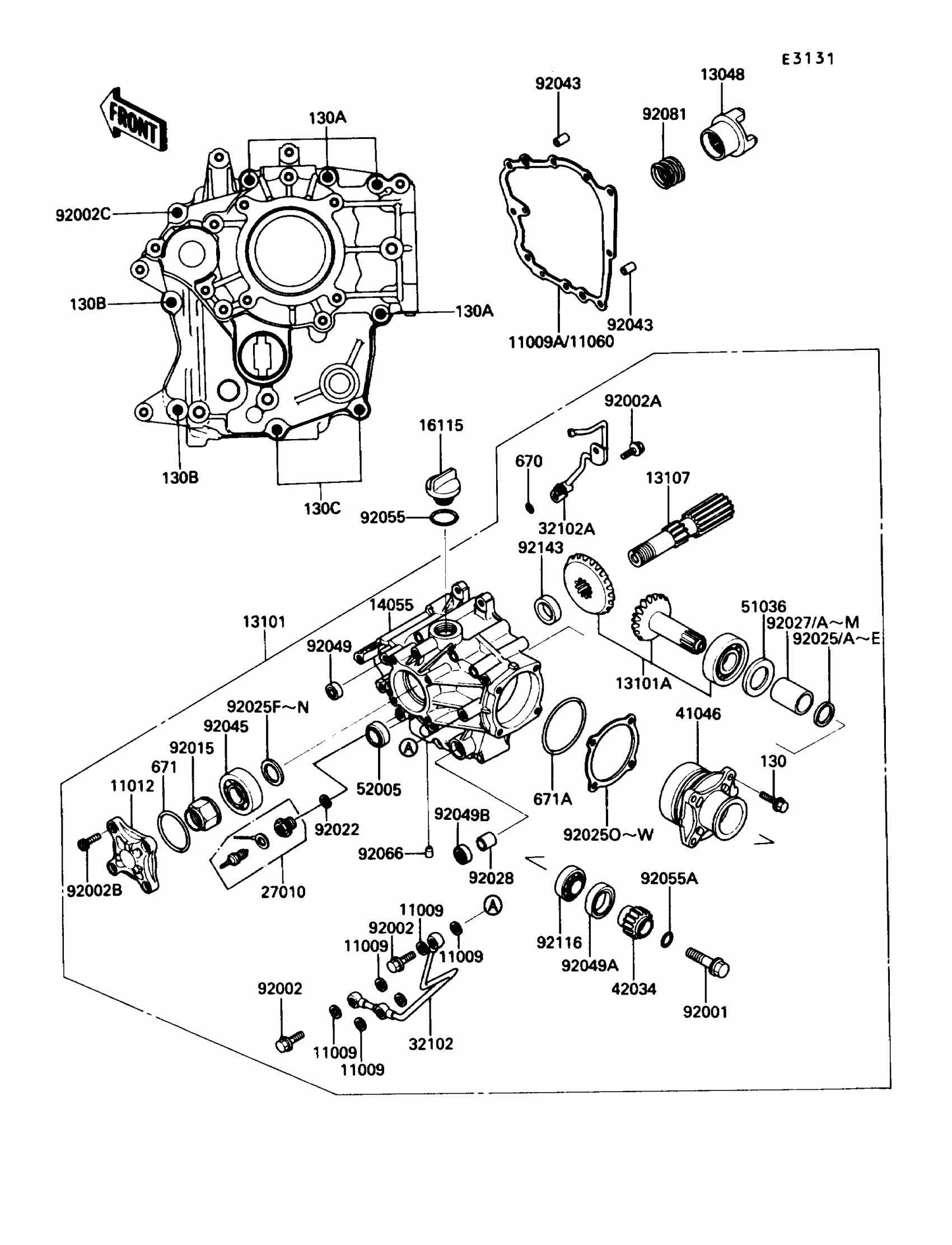

Kawasaki Voyager XII Front Bevel Gear Diagram
#
11009
GASKET,8.2X14X1.0
11009-1344
$3.17
11012
CAP,BEARING
11012-1489
$38.93
11060
GASKET,GEAR CASE
11060-1094
$25.41
13048
CAM-DAMPER
13048-1074
$112.83
13101
GEAR-ASSY,FRONT BEVEL
13101-1089
$2,209.26
13101A
GEAR-ASSY,FRONT BEVEL
13101-5027
$1,150.20
13107
SHAFT,BEVEL,FR
13107-1263
$151.24
14055
CASE-GEAR,FRONT BEVEL
14055-1066
$774.32
16115
CAP-OIL FILLER
16115-1009
$14.30
27010
SWITCH,OVER DRIVE
27010-1224
$51.50
32033
PIPE,OUTSIDE
32033-1940
$61.19
32033A
PIPE,INSIDE
32033-1941
$36.78
41046
HOUSING-BEARING
41046-1074
$342.09
42034
COUPLING,FR DRIVEN
42034-1091
$127.52
51036
CUP
51036-1002
$6.22
52005
GAUGE,OIL LEVEL
52005-1057
$25.24
92001
BOLT,FLANGED,12X42
92001-1169
$22.29
92002
BOLT,BANJO,8X20
92002-1618
$10.56
92002A
BOLT,6X14
92002-1656
$4.69
92002B
BOLT,SOCKET,6X25
92002-1696
$1.94
92002C
BOLT,6X50
92002-1779
$6.56
92015
NUT,24MM
92015-1554
$24.41
92022
WASHER,16XX22X1.0
92022-1812
$4.67
92025
SHIM,25.2X29.8X1.70
92025-1072
Unavailable
92025A
SHIM,25.2X29.8X1.72
92025-1073
Unavailable
92025B
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025C
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025D
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025E
SHIM,25.2X29.8X1.80
92025-1077
Unavailable
92025F
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025G
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025H
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025I
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025J
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025K
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025L
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025M
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025N
SHIM,25.3X36X1.20
92025-1696
Unavailable
92025O
SHIM,T=0.10
92025-1724
Unavailable
92025P
SHIM,T=0.15
92025-1725
Unavailable
130
BOLT-FLANGED,6X25
130P0625
$4.15
130A
BOLT-FLANGED
130Z06100
Unavailable
130B
BOLT-FLANGED,6X30
130Z0630
Unavailable
130C
BOLT-FLANGED,6X50
130Z0650
$4.54
670
O RING,6MM
670B1506
$1.28
671
O RING,65MM
671B2565
$8.86
671A
O RING
671B2575
$6.88
92025Q
SHIM,T=0.50
92025-1726
Unavailable
92025R
SHIM,T=0.60
92025-1727
Unavailable
92025S
SHIM,T=0.70
92025-1728
Unavailable
92025T
SHIM,T=0.80
92025-1729
Unavailable
92025U
SHIM,T=0.90
92025-1730
Unavailable
92025V
SHIM,T=1.00
92025-1731
Unavailable
92025W
SHIM,T=1.20
92025-1732
Unavailable
92027
COLLAR,25.2X29.8X22.8
92027-1152
Unavailable
92027A
COLLAR,25.2X29.8X22.9
92027-1153
Unavailable
92027B
COLLAR,25.2X29.8X23
92027-1154
Unavailable
92027C
COLLAR,25.2X29.8X23.1
92027-1155
Unavailable
92027D
COLLAR,25.2X29.8X23.2
92027-1156
Unavailable
92027E
COLLAR,25.2X29.8X23.3
92027-1157
Unavailable
92027F
COLLAR,25.2X29.8X23.4
92027-1158
Unavailable
92027G
COLLAR,25.2X29.8X23.5
92027-1159
Unavailable
92027H
COLLAR,25.2X29.8X23.6
92027-1160
Unavailable
92027I
COLLAR,25.2X29.8X23.7
92027-1161
Unavailable
92027J
COLLAR,25.2X29.8X23.8
92027-1162
Unavailable
92027K
COLLAR,25.2X29.8X23.9
92027-1163
Unavailable
92027L
COLLAR,25.2X29.8X24
92027-1164
Unavailable
92027M
COLLAR,25.2X29.8X24.1
92027-1165
Unavailable
92027N
COLLAR,25.3X36X10
92027-1968
$24.11
92028
BUSHING,13X15X20
92028-1251
$12.60
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92045
BEARING-BALL,6305C2
92045-1165
$43.79
92049
SEAL-OIL,SD-8187
92049-1017
$9.89
92049A
SEAL-OIL,TC35527
92049-1038
$17.95
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,ID=18.64
92055-1044
$4.78
92066
PLUG,OIL LINE,7.2X8
92066-1012
$6.51
92081
SPRING,CAM DAMPER
92081-1859
$61.04
92116
BEARING-ROLLER,4T30205
92116-1003
$36.32
