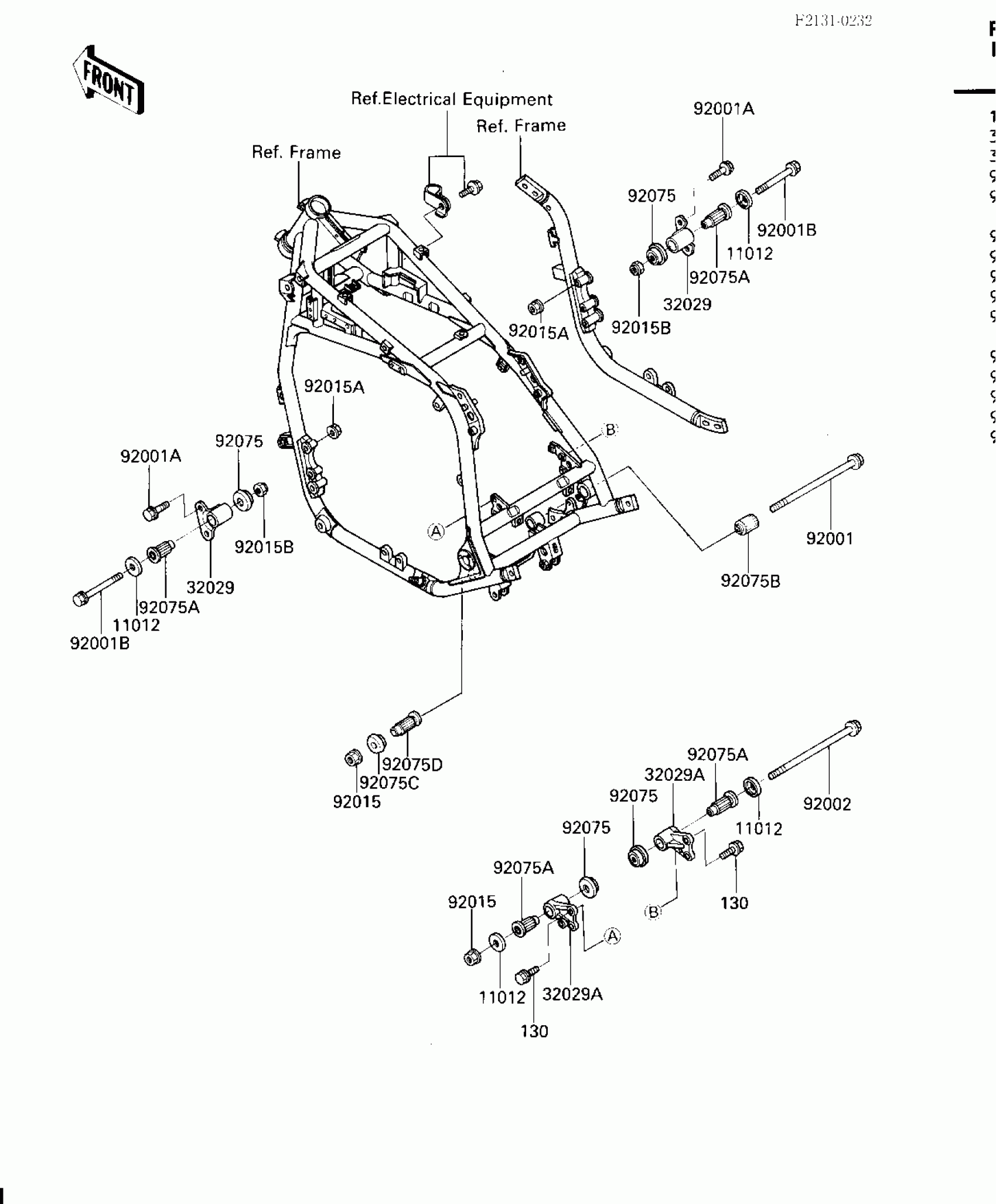

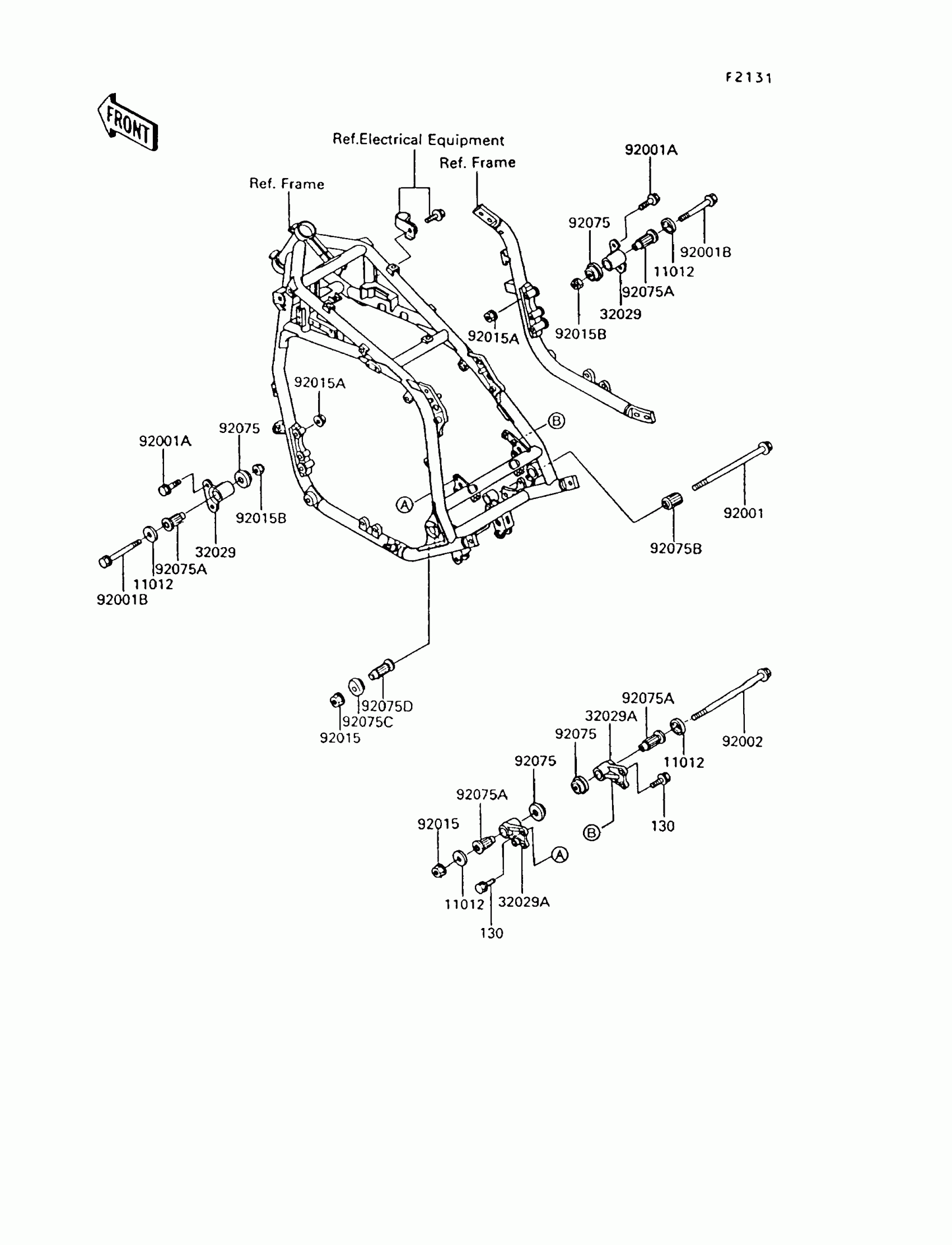

Kawasaki Voyager XII Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

$0.83

11012

CAP,ENGINE BRACKET

11012-1228

$7.61

32029

BRACKET-ENGINE,FR

32029-1445

$156.78

32029A

BRACKET-ENGINE,RR,UPP

32029-1446

$41.32

92001

BOLT,FLANGED,10X255,BLACK

92001-1566

$25.65

92001A

BOLT,FLANGED,8X45

92001-1613

$5.24

92001B

BOLT,FLANGED,10X105,BLACK

92001-1751

$10.65

92002

BOLT,10X300

92002-1196

$25.27

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015B

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$30.82

92075B

DAMPER,ENGINE MOUNT

92075-1733

$35.13

92075C

DAMPER,ENGINE MOUNT

92075-1738

$23.47

92075D

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88
