Description

Price

130

BOLT-FLANGED

130S1016

$4.65

130A

BOLT-FLANGED,10X40

130S1040

$5.97

132

BOLT-FLANGED-SMALL,8X12

132J0812

$1.76

410

W-PLAIN-S

410F1800

$5.21

14024

COVER,SIDE BAG STAY

14024-1335

$26.65

14024A

COVER,SIDE BAG STAY

14024-1336

$11.24

32002

FRAME-COMP,RR

32002-1861

Unavailable

32002A

FRAME-COMP,FR

32002-1947

Unavailable

32112

PLUG,22X3

32112-008

$4.34

39051

FRAME-COMP-SIDE

39051-1052

Unavailable

55020

GUARD,FR,LH

55020-1212

$160.37

55020A

GUARD,FR,RH

55020-1213

$160.37

55020B

GUARD,RR,LH

55020-1214

$202.87

55020C

GUARD,RR,RH

55020-1215

$187.00

92002

BOLT,FLANGED,10X20

92002-1827

$7.62

92015

NUT,18MM

92015-1404

$23.49

92015A

NUT,25MM,T=12

92015-1546

$20.96

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.62

92049

SEAL-OIL,STEERING STEM

92049-1214

$16.69

92055

RING-O,ID=24.5

92055-1459

$4.73

92116

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$75.31

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$42.93

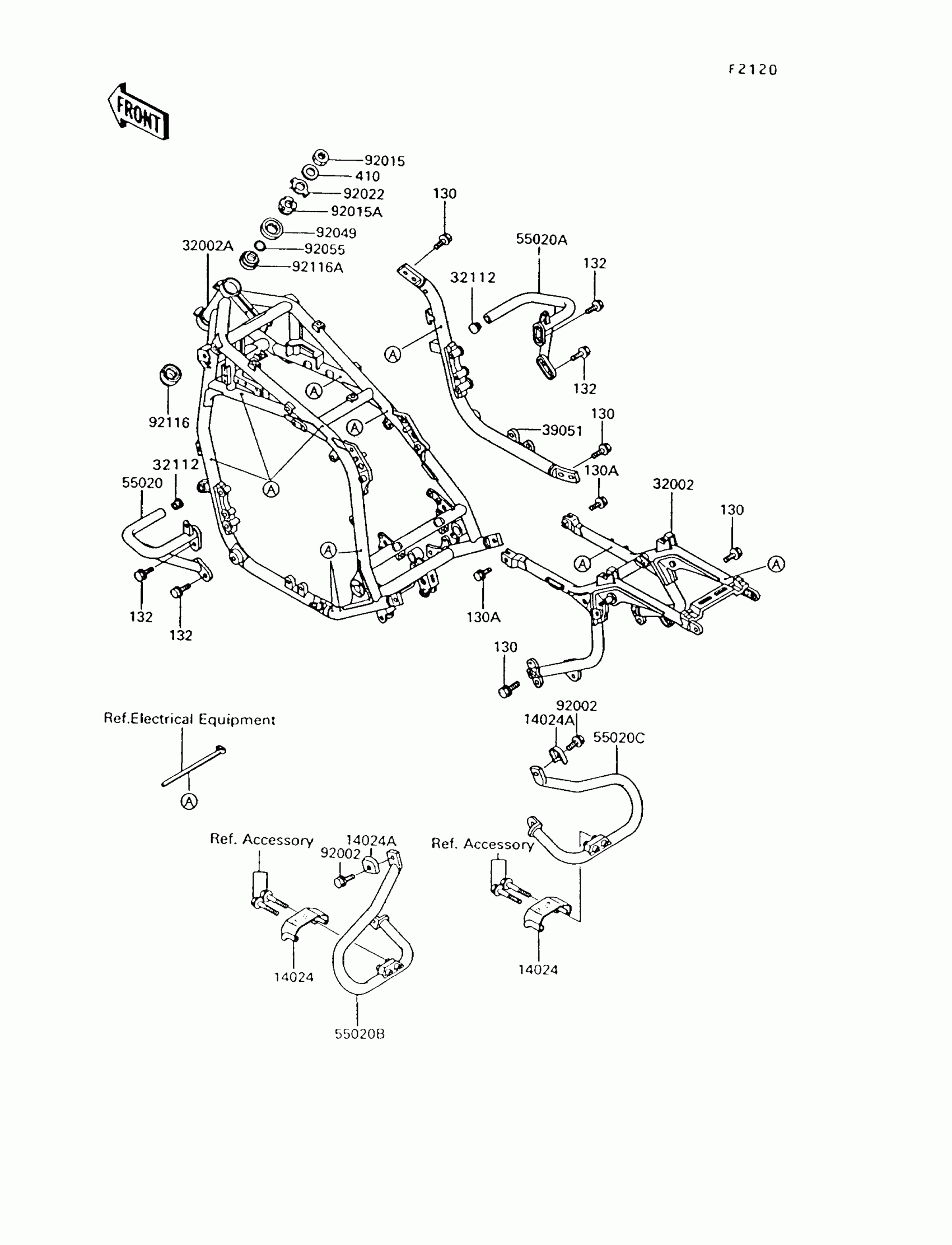

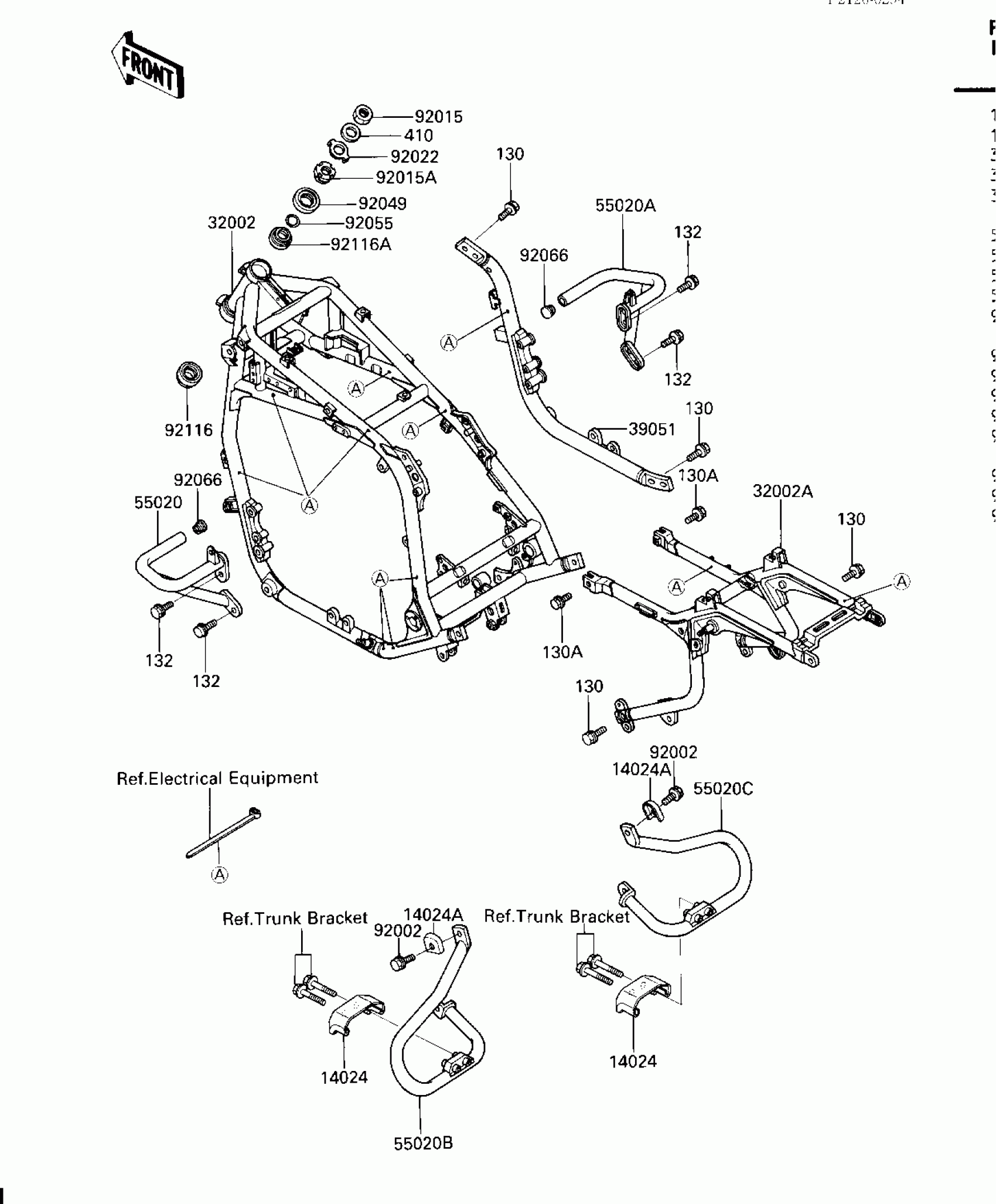

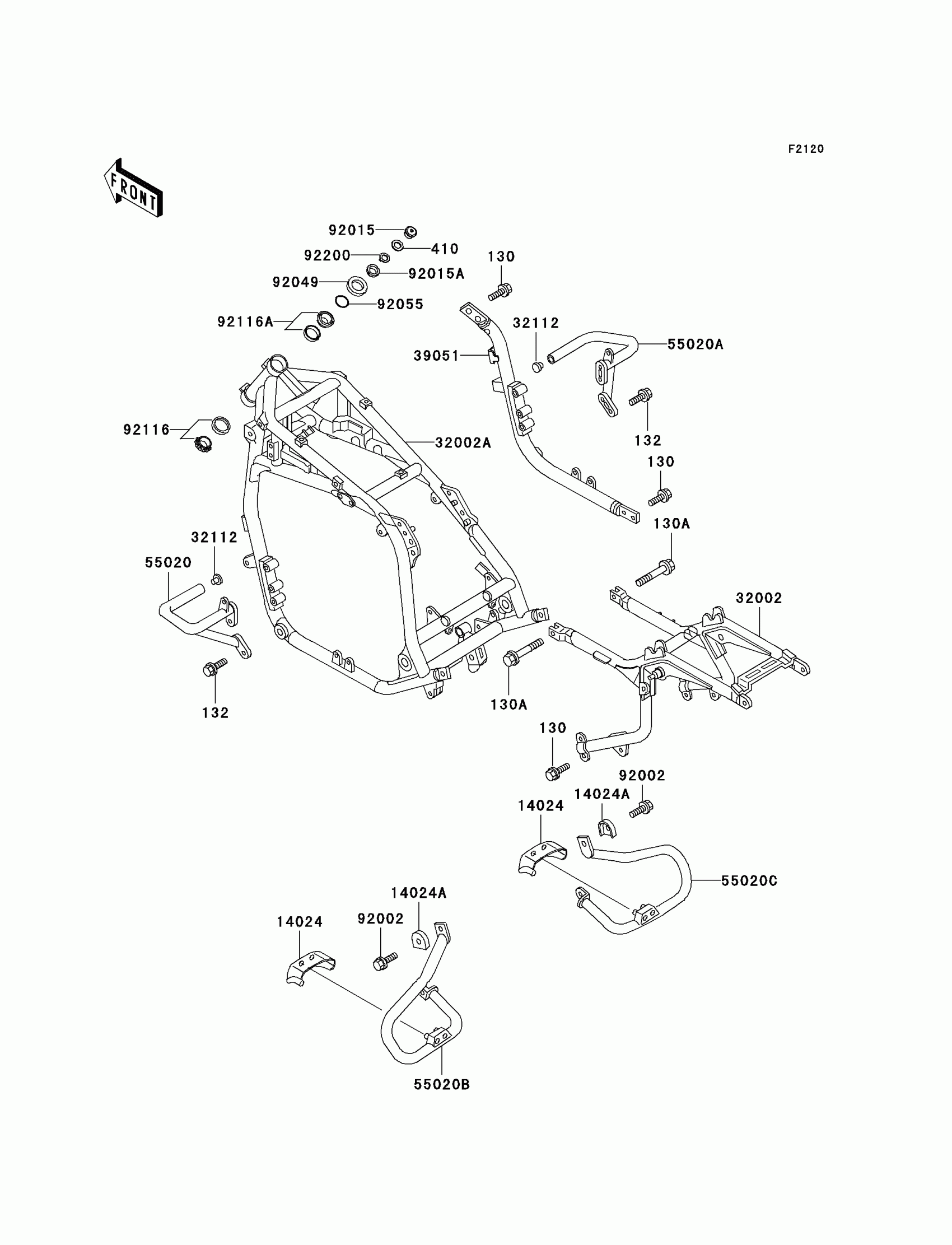

Kawasaki Voyager XII Frame Diagram

BOLT-FLANGED

BOLT-FLANGED,10X40

BOLT-FLANGED-SMALL,8X12

W-PLAIN-S

COVER,SIDE BAG STAY

COVER,SIDE BAG STAY

FRAME-COMP,RR

FRAME-COMP,FR

PLUG,22X3

FRAME-COMP-SIDE

GUARD,FR,LH

GUARD,FR,RH

GUARD,RR,LH

GUARD,RR,RH

BOLT,FLANGED,10X20

NUT,18MM

NUT,25MM,T=12

WASHER,CLAW,18.5X30X2.3

SEAL-OIL,STEERING STEM

RING-O,ID=24.5

BEARING-ROLLER,LWR,32006JR RS

BEARING-ROLLER,HI-CAP32005JR-1
