Description

Price

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT,FLANGED,6X20

130B0620

$1.69

132

BOLT-FLANGED-SMALL

132G0835

$4.44

220

SCREW-PAN-CROS,5X25

220B0525

$3.67

11009

GASKET,TAIL LAMP LENS

11009-1582

$8.02

14024A

COVER,TAIL ACCESSORY,P.T.GREEN

14024-1680-SM

Unavailable

16160

BODY,TAIL ACCESSORY

16160-1148

$58.47

35004A

FENDER-FRONT,P.T.GREEN

35004-1180-TZ

Unavailable

35009A

BRACE,FRONT FENDER

35009-1103

$136.03

35023

FENDER-REAR,FR

35023-1148

$235.39

35023B

FENDER-REAR,RR,P.T.GREEN

35023-1149-TZ

$198.77

39145

TRIM-SEAL,REAR FENDER

39145-1070

$19.11

53044

TRIM,REAR FENDER

53044-1183

$16.57

92002

BOLT,6X20

92002-1246

$4.62

92015

NUT

92015-1248

$9.97

92027

COLLAR

92027-1745

$8.58

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92066

PLUG,18.3X4.5

92066-1234

$9.24

92074

PLUG,11X3.2

92074-038

$7.22

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

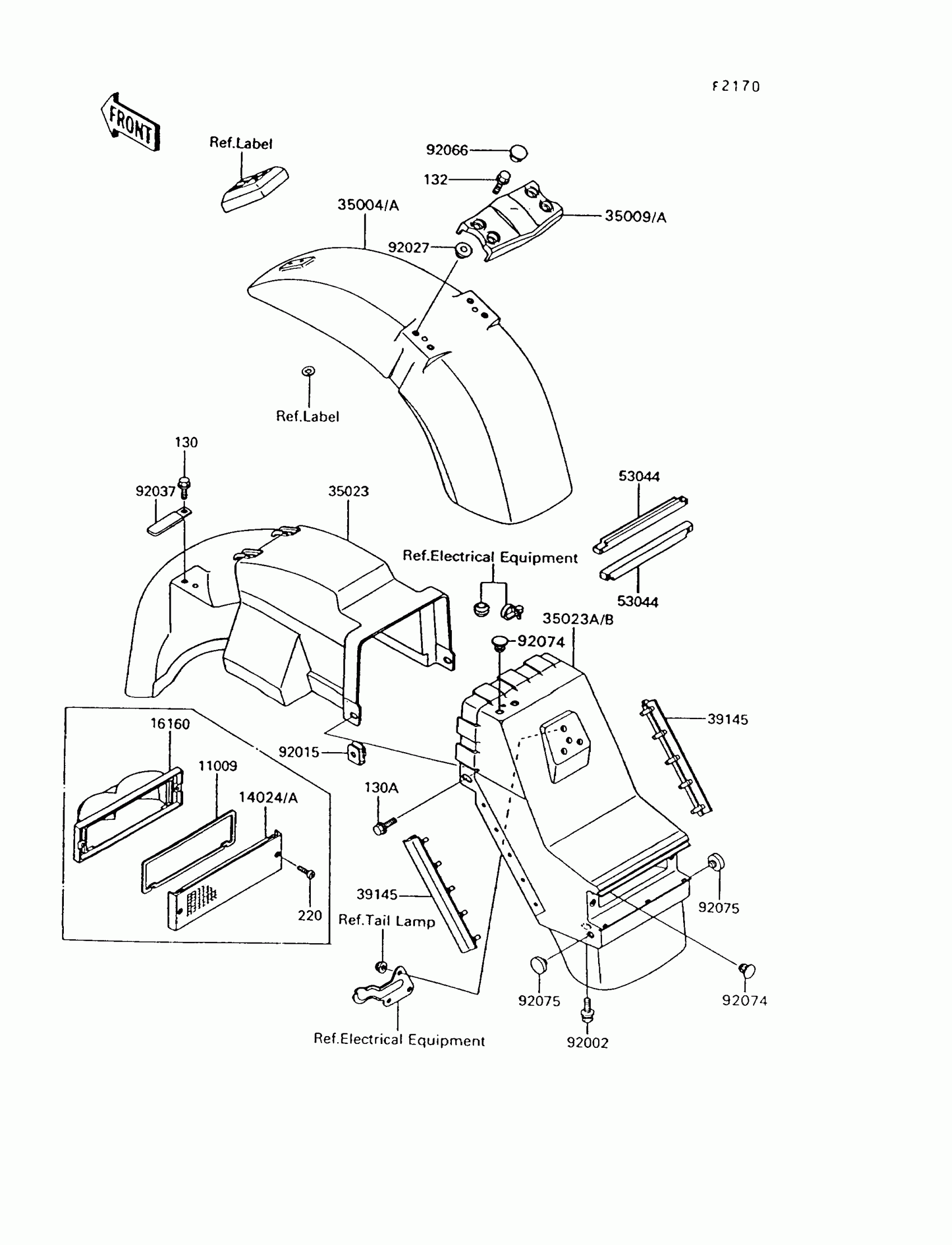

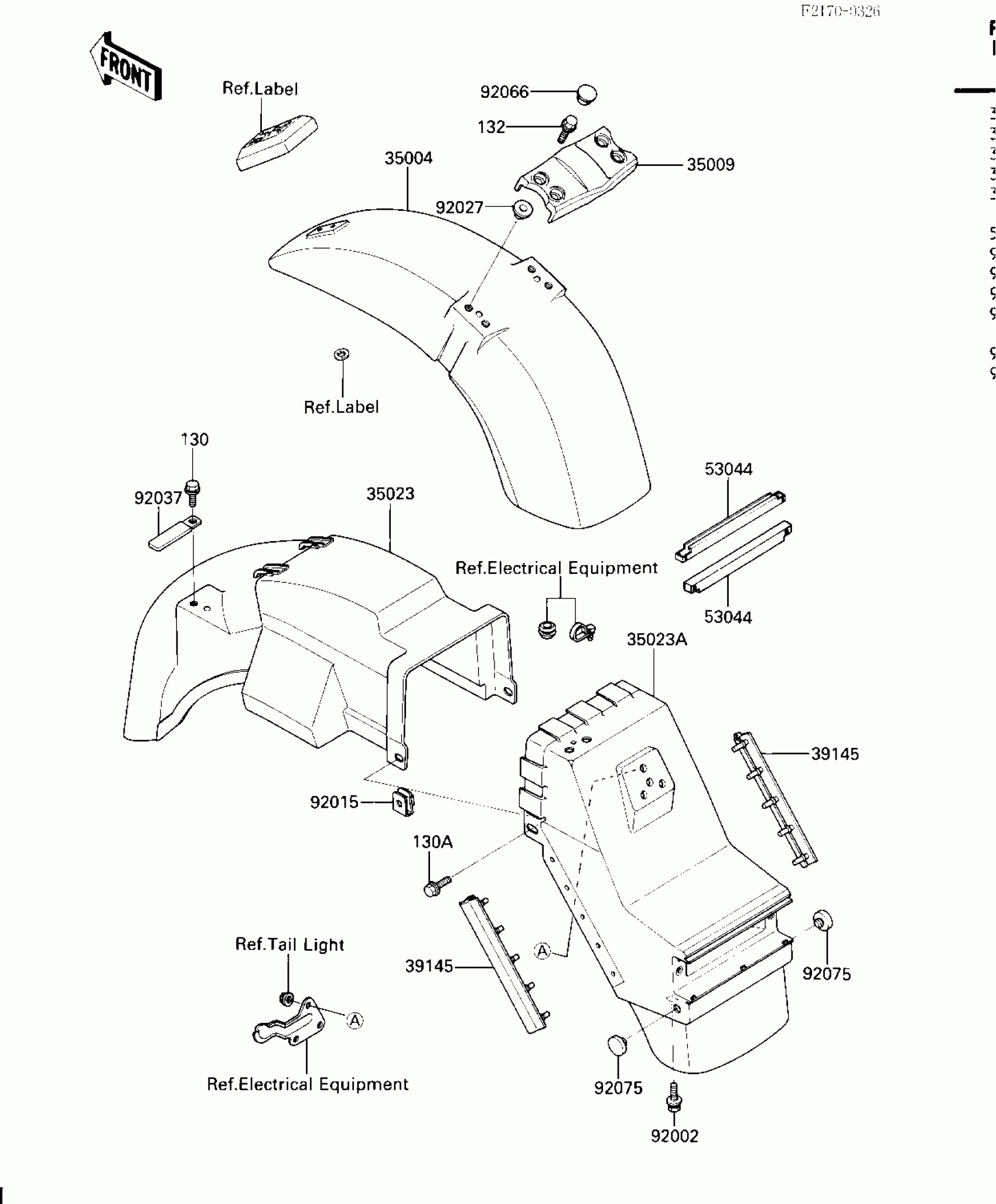

Kawasaki Voyager XII Fenders Diagram

BOLT-FLANGED

BOLT,FLANGED,6X20

BOLT-FLANGED-SMALL

SCREW-PAN-CROS,5X25

GASKET,TAIL LAMP LENS

COVER,TAIL ACCESSORY,P.T.GREEN

BODY,TAIL ACCESSORY

FENDER-FRONT,P.T.GREEN

BRACE,FRONT FENDER

FENDER-REAR,FR

FENDER-REAR,RR,P.T.GREEN

TRIM-SEAL,REAR FENDER

TRIM,REAR FENDER

BOLT,6X20

NUT

COLLAR

CLAMP,WIRING HARNESS,L=60

PLUG,18.3X4.5

PLUG,11X3.2

DAMPER RUBB MAIN STND
