Description

Price

130

BOLT-FLANGED

130P0825

$1.42

130A

BOLT-FLANGED,8X12

130X0812

Unavailable

175

BOLT-STUD-FINE

175G1025

$6.50

13101

GEAR-ASSY,M.SILVER

13101-1156-7J

$3,433.89

39130

SPRING-LEAF

39130-1002

$4.65

39158

SHAFT-ASSY-DRIVE

39158-1058

Unavailable

42034

COUPLING

42034-1085

$76.24

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

$96.63

49006

BOOT

49006-1188

$45.22

56040

LABEL-WARNING,OIL

56040-1230

$5.18

92004

STUD,RR SHOCKABSORBER

92004-1047

$15.74

92015

NUT,16MM

92015-1059

Unavailable

92015A

NUT,FLANGED,10MM

92015-1180

$4.31

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,16X32X3.2

92022-1105

$11.49

92022B

WASHER,39X49.5X1

92022-1294

$7.24

92025

SHIM,T=0.10

92025-1733

Unavailable

92025A

SHIM,T=0.15

92025-1734

Unavailable

92025B

SHIM,T=0.50

92025-1735

Unavailable

92025C

SHIM,T=0.60

92025-1736

Unavailable

92025D

SHIM,T=0.70

92025-1737

Unavailable

92025E

SHIM,T=0.80

92025-1738

Unavailable

92025F

SHIM,T=0.90

92025-1739

Unavailable

92025G

SHIM,T=1.00

92025-1740

Unavailable

92025H

SHIM,T=1.20

92025-1741

Unavailable

92026

SPACER,26.2X36X2

92026-1085

$8.21

92033

RING-SNAP,52MM

92033-1074

$4.65

92037

CLAMP,BOOT FITTING

92037-1112

$16.72

92046

BEARING-NEEDLE,KTV384620E01 C3

92046-1057

$61.34

92048

RACE,ORT465021E01

92048-1019

$44.62

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92049A

SEAL-OIL,S-831009HS

92049-1034

$37.77

92049B

SEAL-OIL

92049-1248

$21.20

92055

RING-O,ID=32.7

92055-1037

Unavailable

92055A

RING-O,ID=150.4

92055-1039

$15.65

92055B

RING-O,35.8MM

92055-1281

$7.34

92066

PLUG,OIL FILLER CAP,M.SILVER

92066-1006-7J

$16.53

92081

SPRING

92081-1183

$7.55

220

SCREW-PAN-CROS

220B0430

$0.77

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.03

610

ROLLER,4X6

610A0406

$4.31

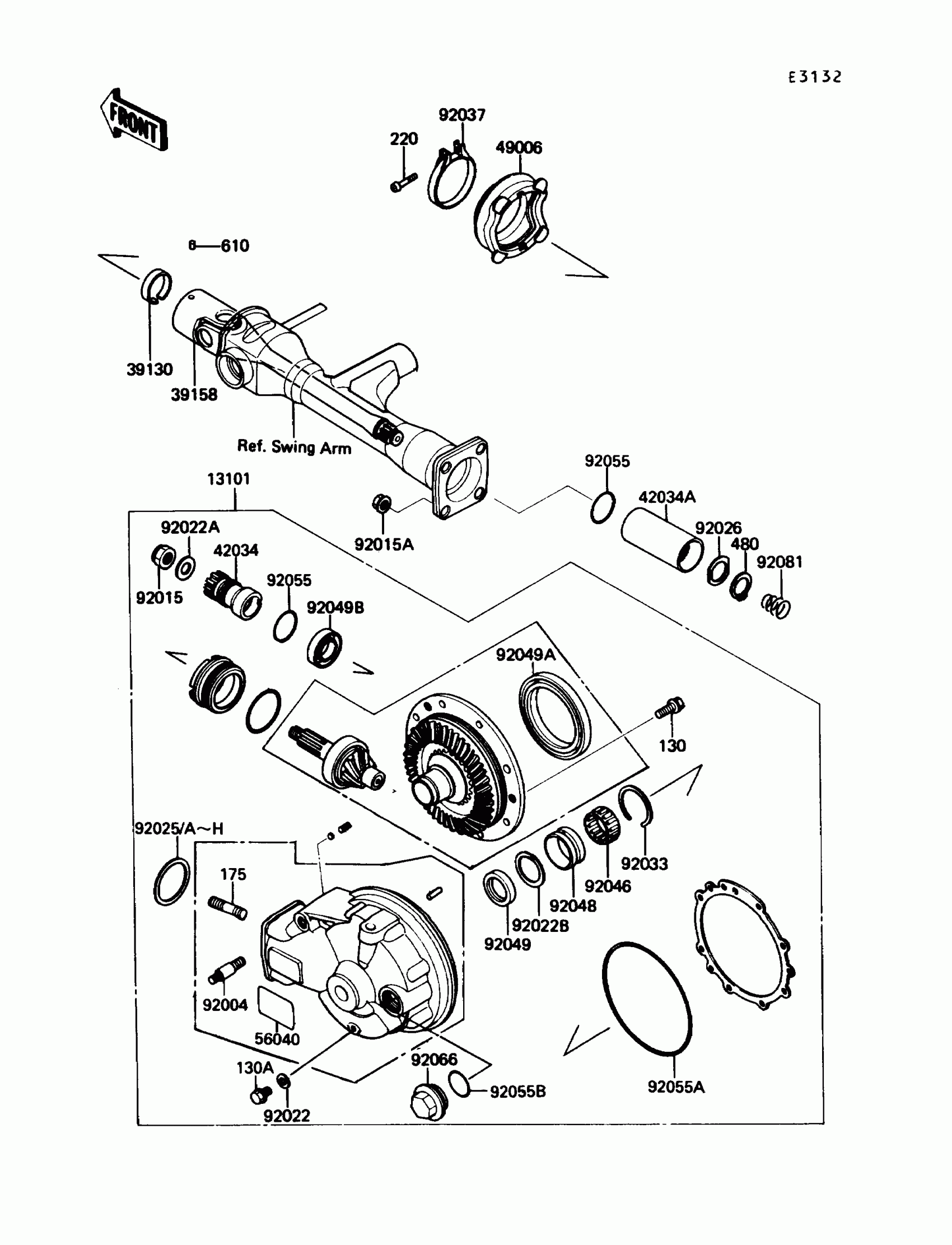

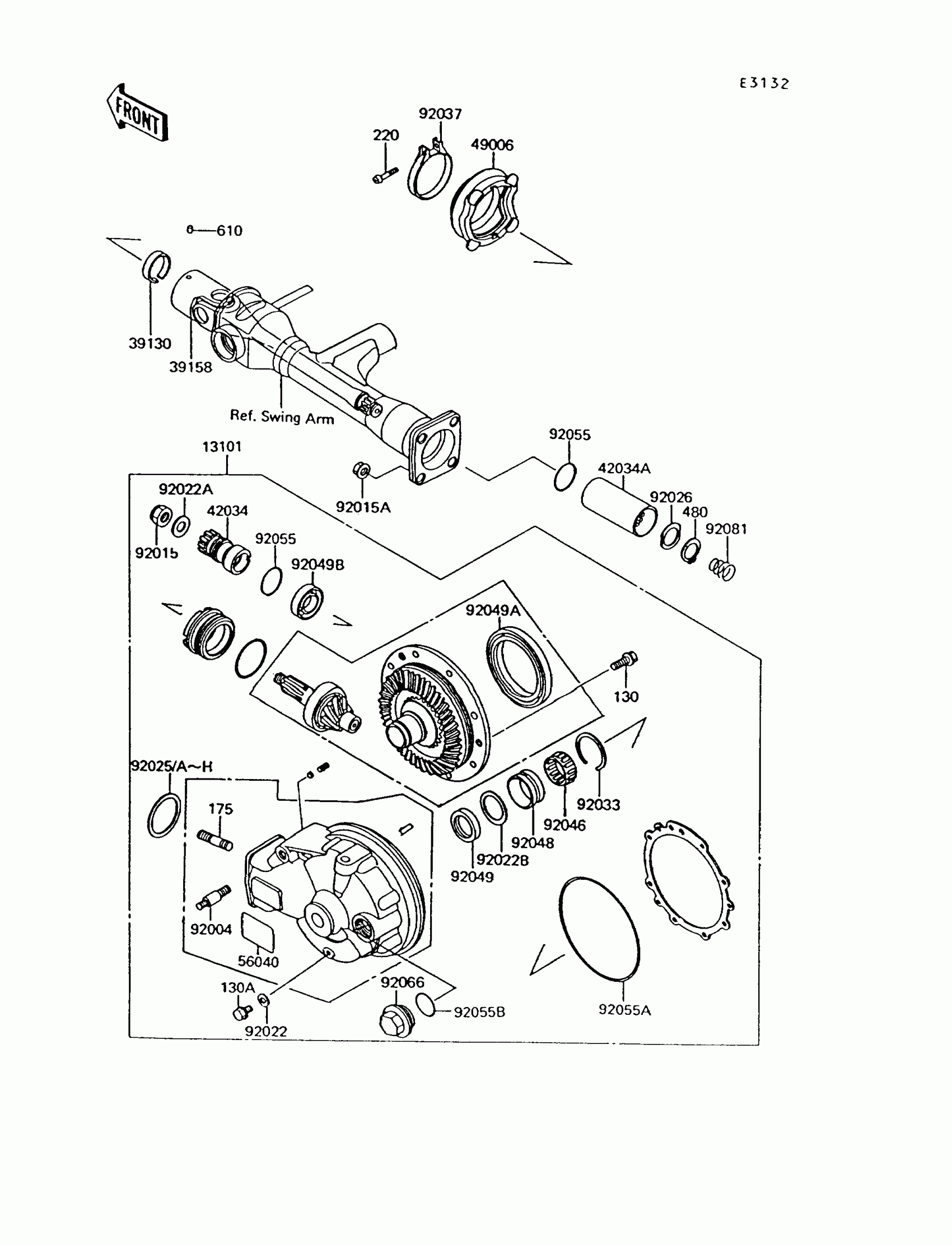

Kawasaki Voyager XII Drive Shaft/Final Gear Diagram

BOLT-FLANGED

BOLT-FLANGED,8X12

BOLT-STUD-FINE

GEAR-ASSY,M.SILVER

SPRING-LEAF

SHAFT-ASSY-DRIVE

COUPLING

COUPLING,PROPELLER SHAFT,OUTER

BOOT

LABEL-WARNING,OIL

STUD,RR SHOCKABSORBER

NUT,16MM

NUT,FLANGED,10MM

WASHER,8.2X16X1

WASHER,16X32X3.2

WASHER,39X49.5X1

SHIM,T=0.10

SHIM,T=0.15

SHIM,T=0.50

SHIM,T=0.60

SHIM,T=0.70

SHIM,T=0.80

SHIM,T=0.90

SHIM,T=1.00

SHIM,T=1.20

SPACER,26.2X36X2

RING-SNAP,52MM

CLAMP,BOOT FITTING

BEARING-NEEDLE,KTV384620E01 C3

RACE,ORT465021E01

SEAL-OIL,S-35477HS

SEAL-OIL,S-831009HS

SEAL-OIL

RING-O,ID=32.7

RING-O,ID=150.4

RING-O,35.8MM

PLUG,OIL FILLER CAP,M.SILVER

SPRING

SCREW-PAN-CROS

CIRCLIP-TYPE-C,26MM

ROLLER,4X6
