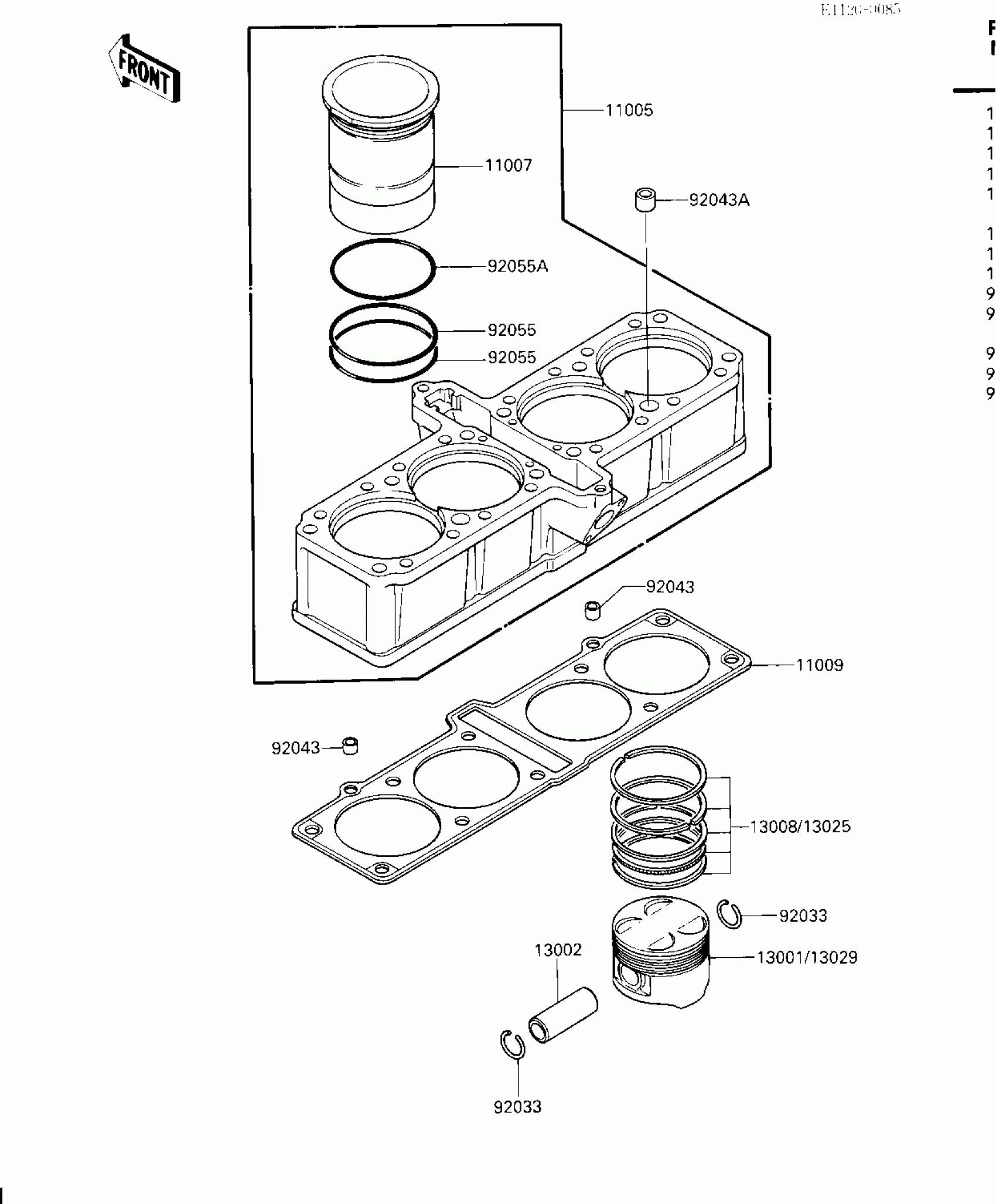

Kawasaki Voyager XII CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1478

Unavailable

11007

LINER-CYLINDER

11007-1084

$155.18

11009

GASKET,CYLINDER BASE

11009-1554

$40.69

13001

PISTON-ENGINE,STD

13001-1222

$102.21

13002

PIN-PISTON

13002-1060

$22.21

13008

RING-SET-PISTON,STD

13008-1071

$75.82

13025

RING-SET-PISTON L,O/S 0.50

13025-1070

$88.70

13029

PISTON-ENGINE L,O/S 0.50

13029-1143

$131.95

92033

RING-SNAP

92033-1207

$2.38

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,84.4X2.4

92055-1323

$7.71

92055A

RING-O,82.5X2

92055-1331

$19.74
