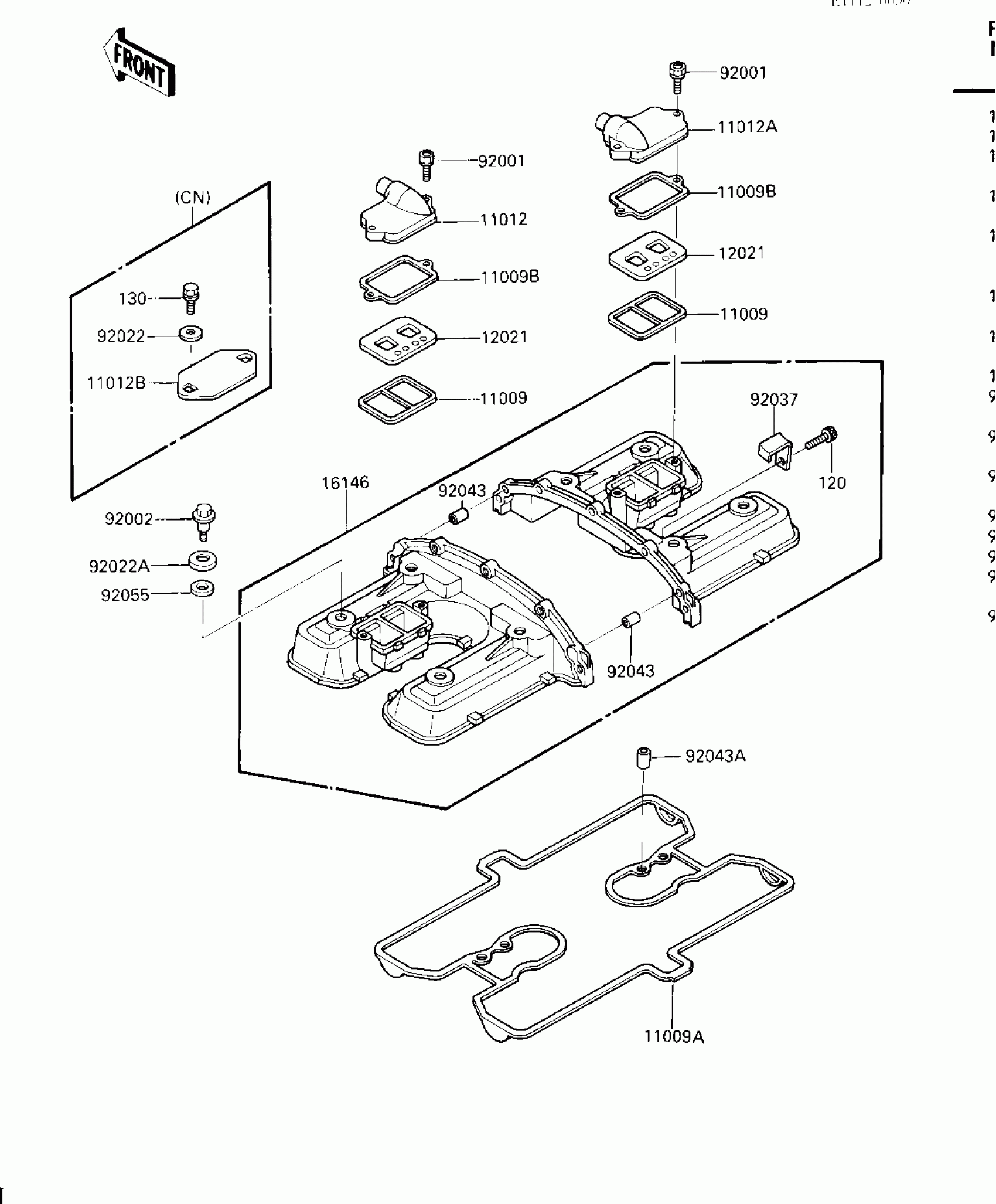

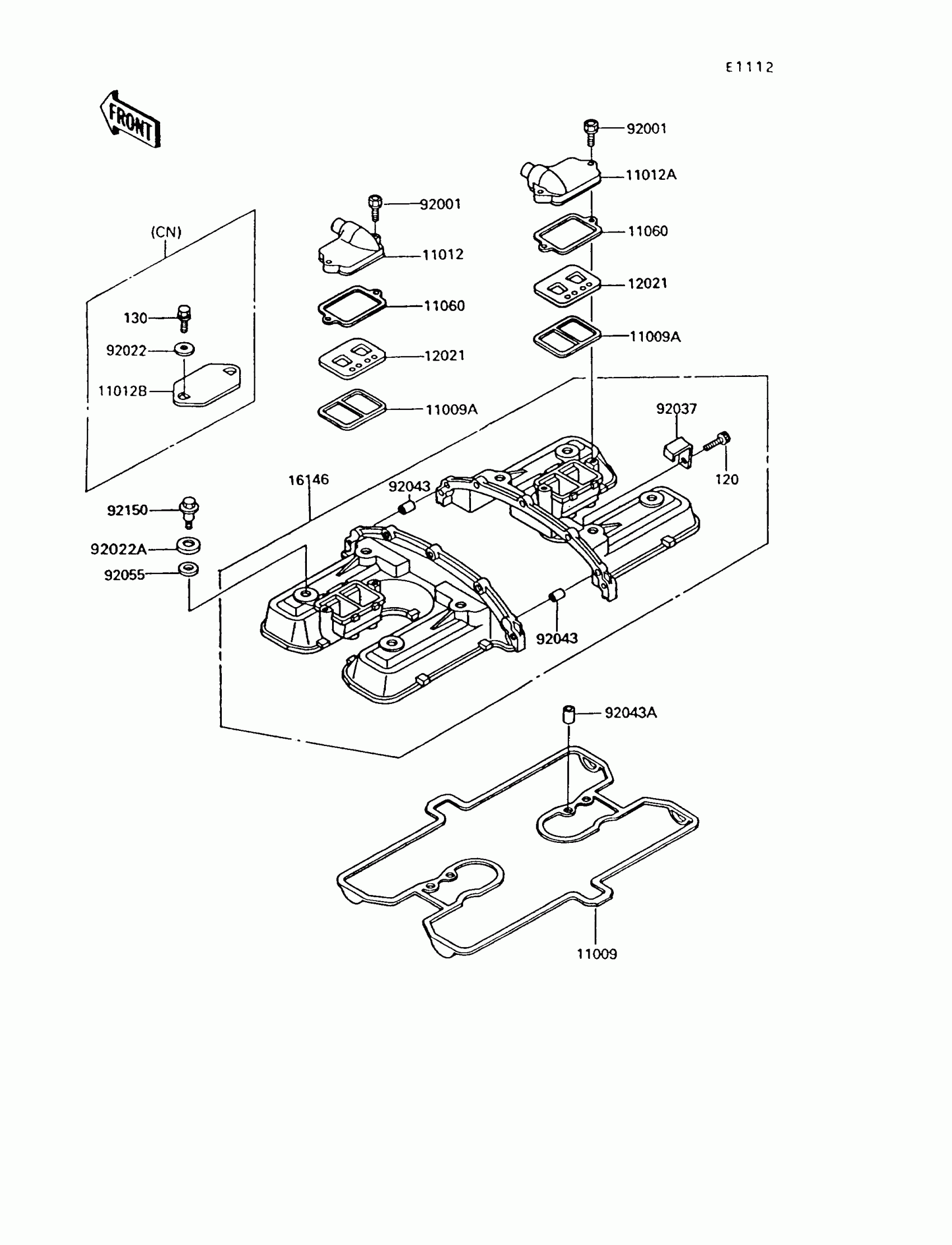

Kawasaki Voyager XII Cylinder Head Cover Diagram

Description

Price

120

BOLT-SOCKET,6X25

120P0625

$1.92

11009

GASKET,CYLINDER HEAD COVER

11009-1559

$92.79

11009A

GASKET,REED VALVE

11009-1905

Unavailable

16146

COVER-ASSY,CYLINDER HEAD

16146-1089

$353.87

92022A

WASHER,HEAD COVER BOLT

92022-1637

$5.78

92037

CLAMP

92037-1764

$8.12

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,HEAD COVER BOLT

92055-1225

$7.62

92150

BOLT,FLANGED,6X23.5

92150-1447

$4.60

130

BOLT-FLANGED

130B0614

Unavailable

11012

CAP,REED VALVE,LH

11012-1487

$33.53

11012A

CAP,REED VALVE,RH

11012-1488

$33.53

11012B

CAP,REED VALVE

11012-1530

Unavailable

11060

GASKET,REED VALVE

11060-1096

$6.86

12021

VALVE-ASSY-REED

12021-1053

$74.72

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92022

WASHER,6.5X20X1.6

92022-125

$1.40
