Description

Price

11002

HEAD-ASSY-CYLINDER

11002-1212

Unavailable

11004

GASKET-HEAD

11004-1146

$132.89

11009

GASKET,12.5X18X1.5

11009-1376

$1.85

11012

CAP,PLUG

11012-1493

$8.68

14043

FILTER,OIL

14043-1056

$10.30

16065

HOLDER-CARBURETOR

16065-1140

$31.91

32102

PIPE,OIL

32033-1939

$38.87

32102A

PIPE,OIL

32102-1331

$97.67

49002

GUIDE-VALVE

49002-1052

$38.19

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92002

BOLT,6X46

92001-1872

$4.31

92002A

BOLT,BANJO,12X27

92002-1655

$17.56

92002B

BOLT,11X164

92002-1660

$22.74

92004

STUD,8X28

92004-1110

$12.65

92009

SCREW

92009-1410

$8.76

92022

WASHER,11.5X20.5X1.6

92022-1768

$4.78

92037

CLAMP

92037-1523

$12.35

92037A

CLAMP

92037-1843

$8.58

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,11.7MM

92055-1265

$10.62

92066

PLUG,PT1/8X7

92066-1227

$5.90

92066A

PLUG,PT1/2X12.5

92066-1253

$8.98

92075

DAMPER,OIL PIPE

92075-1802

$4.32

92144

SPRING

92081-1943

$4.23

120

BOLT-SOCKET,8X30

120P0830

$2.62

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT,FLANGED,8X30

130G0830

$1.92

600

BALL-STEEL,1/4

600A0800

$0.62

670

O RING,6MM

670D1506

$1.66

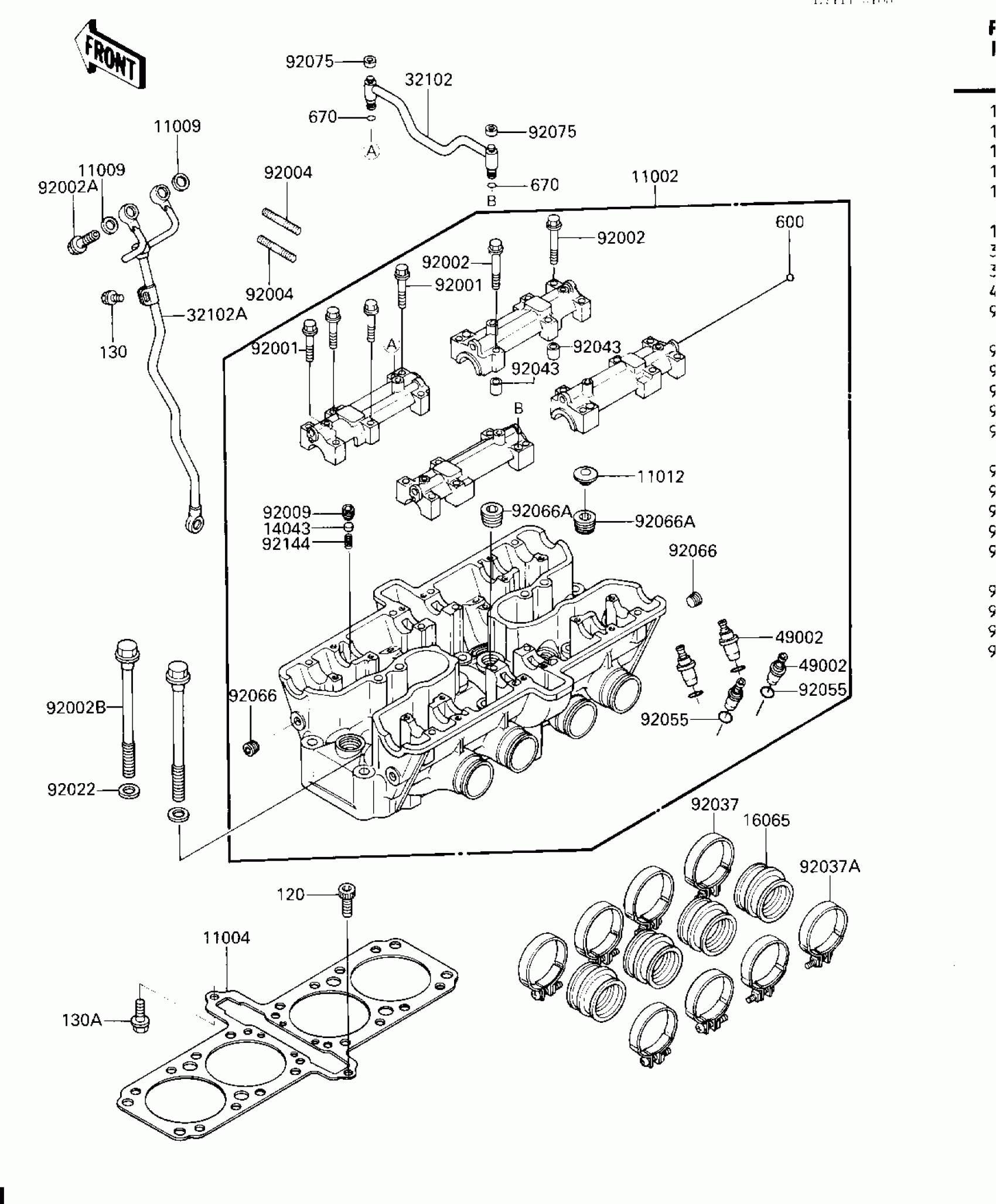

Kawasaki Voyager XII CYLINDER HEAD Diagram

HEAD-ASSY-CYLINDER

GASKET-HEAD

GASKET,12.5X18X1.5

CAP,PLUG

FILTER,OIL

HOLDER-CARBURETOR

PIPE,OIL

PIPE,OIL

GUIDE-VALVE

BOLT,FLANGED,6X38

BOLT,6X46

BOLT,BANJO,12X27

BOLT,11X164

STUD,8X28

SCREW

WASHER,11.5X20.5X1.6

CLAMP

CLAMP

PIN,6.2X8X14

RING-O,11.7MM

PLUG,PT1/8X7

PLUG,PT1/2X12.5

DAMPER,OIL PIPE

SPRING

BOLT-SOCKET,8X30

BOLT-FLANGED,6X10

BOLT,FLANGED,8X30

BALL-STEEL,1/4

O RING,6MM
