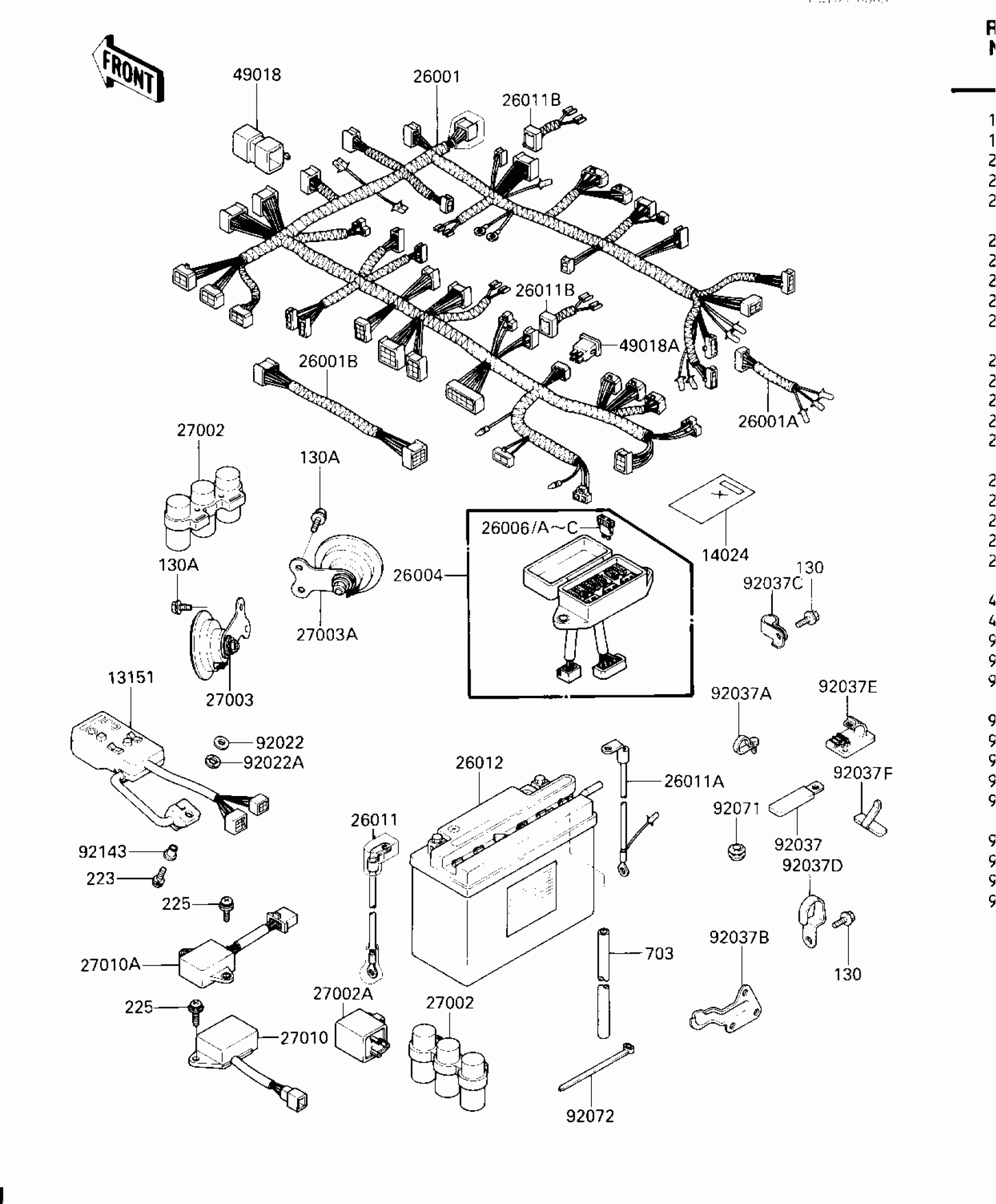

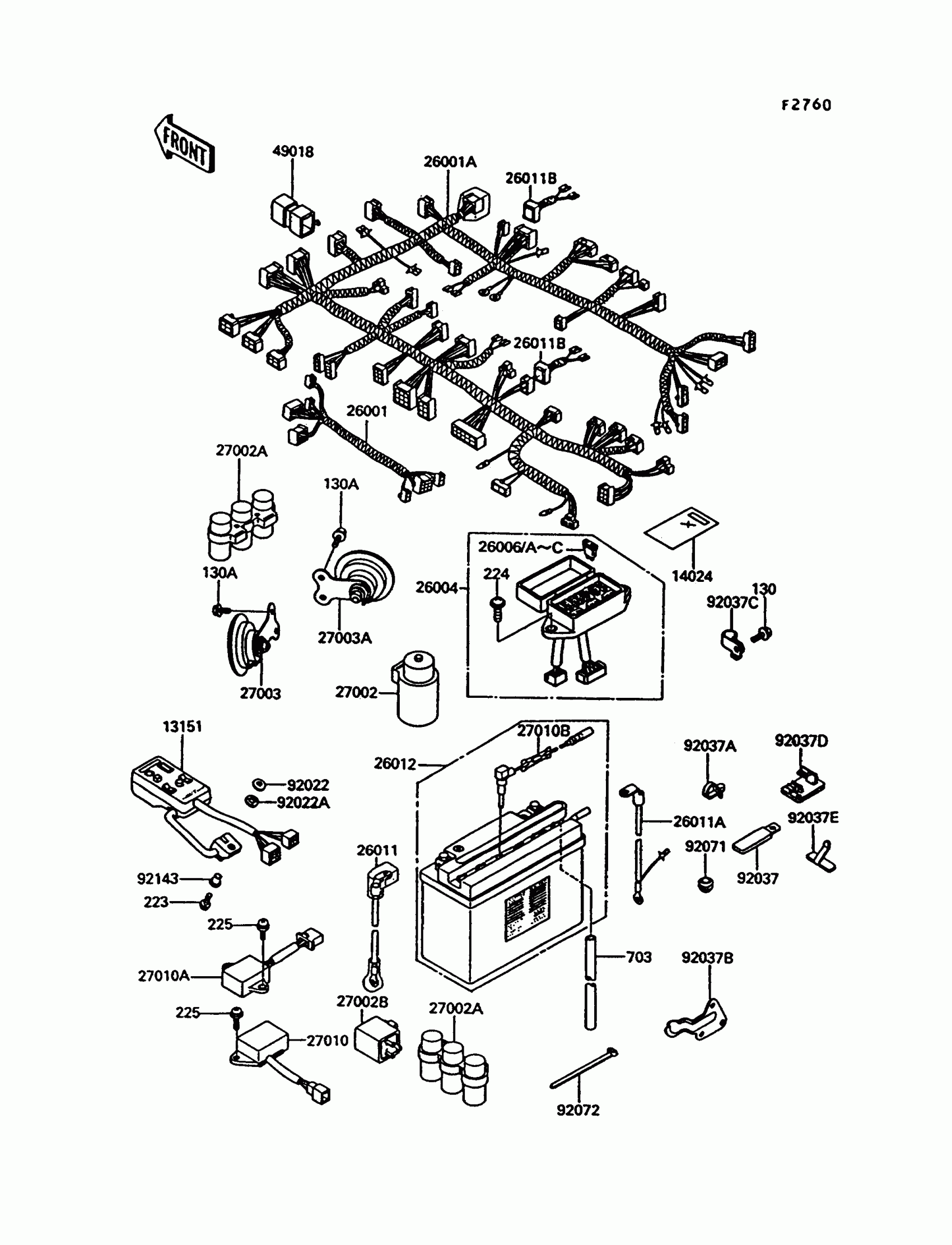

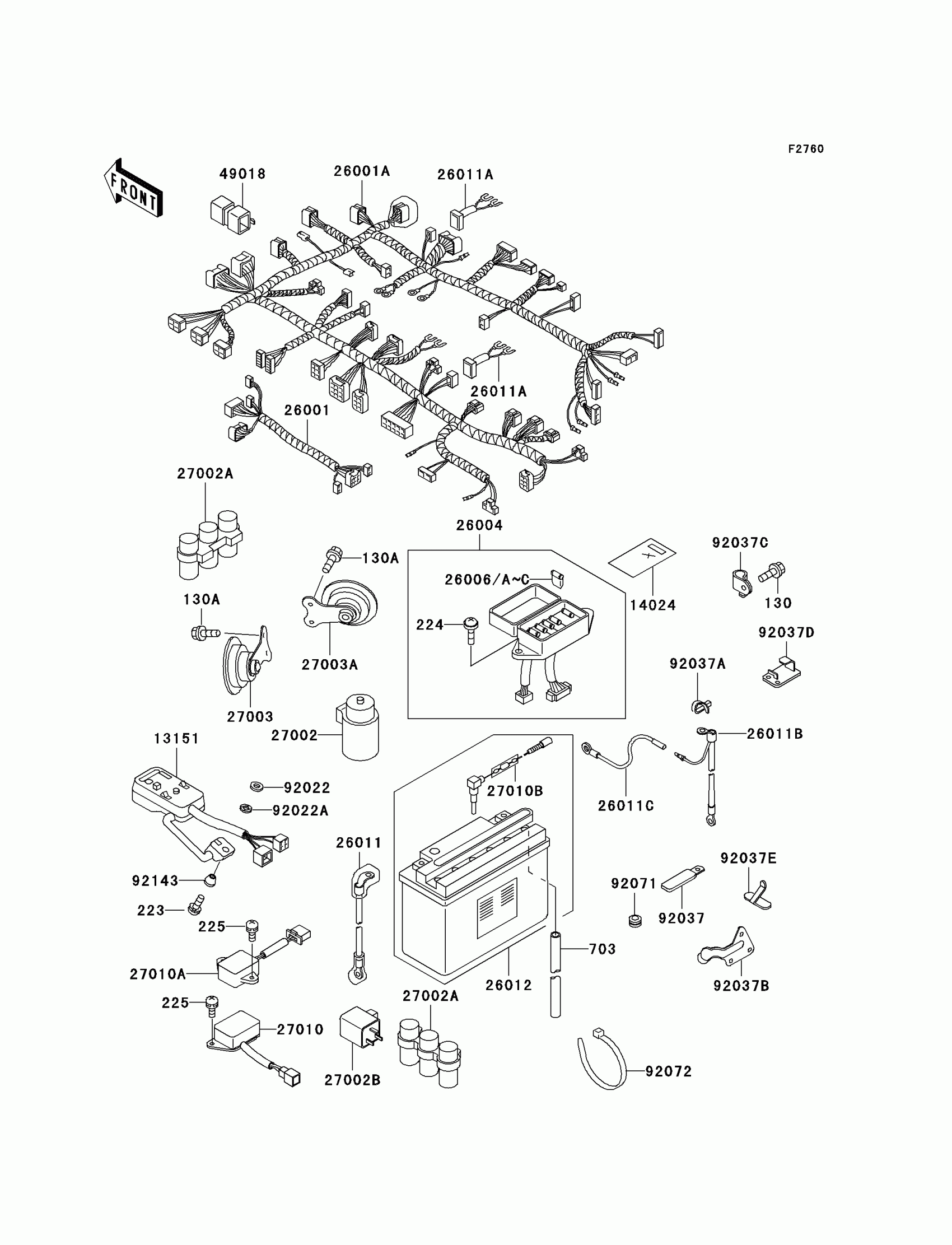

Kawasaki Voyager XII CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

13151

SWITCH-COMP,AUDIO

13151-1063

$276.01

14024

COVER,HARNESS

14024-1352

$29.53

26001

HARNESS,MAIN

26001-1756

$354.17

26001A

HARNESS,REAR FENDER

26001-1760

$22.74

26001B

HARNESS,RADIO

26001-1789

$28.92

26004

FUSE-ASSY

26004-1065

$144.13

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006B

FUSE,3A-P

26006-1060

$5.56

26006C

FUSE,BLADE,15A,BLUE

26006-1061

$5.46

26011

WIRE-LEAD,BATTERY(+)

26011-1339

$39.06

26011A

WIRE-LEAD,BATTERY(-)

26011-1340

Unavailable

26011B

WIRE-LEAD,IGNITION COIL

26011-1365

$15.60

26012

YUA BAT SY50-N18L-AT

26012-1124

Unavailable

27002

RELAY-ASSY

27002-1052

$194.39

27002A

RELAY-ASSY,TURN SIGNAL

27002-1060

$94.99

27003

HORN,350HZ,LH

27003-1239

$83.85

27003A

HORN,415HZ,RH

27003-1240

$89.44

27010

SWITCH,RESERVE LIGHTING

27010-1069

$239.61

27010A

SWITCH,TURN SIGNAL OPERATION

27010-1166

$187.61

49018

DIODE

49018-1052

Unavailable

49018A

DIODE,HEAD LAMP

49018-1054

$32.26

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,WAVE,10MM

92022-1828

$5.11

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92037B

CLAMP

92037-1720

$9.57

92037C

CLAMP,HOSE

92037-1727

$8.76

92037D

CLAMP,HOSE

92037-1785

$3.71

92037E

CLAMP,HARNESS

92037-1816

$7.52

92037F

CLAMP,HARNESS

92037-1820

$7.31

92071

GROMMET

92071-024

$4.65

92072

BAND,L=202

92072-1195

$1.56

92143

COLLAR

92143-1026

$6.52

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,6X12

130C0612

$0.63

223

SCREW-PAN-WS-CROS,6X20

223C0620

$4.30

224

SCREW,6X14

92009-1333

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

$4.30

703

TUBE-RUBBER,8X750

703A08750

$20.77
