Description

Price

11045

BRACKET,THROTTLE CABL

11045-1312

Unavailable

13168

LEVER,STARTER

13168-1337

$121.16

13183

PLATE,STARTER CABLE

13183-1033

$39.20

13183A

PLATE,CARBURTOR STAY,UPP

13183-1049

$127.82

13183B

PLATE,CARBURETOR STAY,LWR,6MM

13183-1050

$127.82

15001

CARBURETOR-ASSY

15001-1212

$1,277.39

15001A

CARBURETOR-ASSY (Canada)

15001-1224

Unavailable

15001B

CARBURETOR-ASSY

15001-1225

$1,279.76

15002

CARBURETOR,LH,OUTSIDE

15002-1370

$698.58

15002A

CARBURETOR,LH,INSIDE

15002-1371

$417.85

15002B

CARBURETOR,RH,INSIDE

15002-1372

$698.58

15002C

CARBURETOR,RH,OUTSIDE

15002-1373

$698.58

15002D

CARBURETOR,LH,OUTSIDE

15002-1374

Unavailable

15002E

CARBURETOR,LH,INSIDE

15002-1375

$417.85

15002F

CARBURETOR,RH,INSIDE

15002-1376

$698.58

15002G

CARBURETOR,RH,OUTSIDE

15002-1377

$698.58

15002H

CARBURETOR,LH,OUTSIDE

15002-1378

Unavailable

15002I

CARBURETOR,LH,INSIDE (Canada)

15002-1379

Unavailable

15002J

CARBURETOR,RH,INSIDE

15002-1380

Unavailable

15002K

CARBURETOR,RH,OUTSIDE

15002-1381

Unavailable

16021

SCREW-THROTTLE STOP

16021-1101

$121.17

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,I-TYPE

92005-1109

$33.74

92005A

FITTING,T-TYPE

92005-1135

$24.61

92005B

FITTING,T-TYPE

92005-1125

$25.81

92005C

FITTING,T-TYPE

92005-1148

Unavailable

92005D

FITTING,T-TYPE

92005-1151

$21.28

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,TUBE

92037-1142

$4.31

92037A

CLAMP,TUBE

92037-1682

$6.15

92037B

CLAMP,FUEL TUBE

92037-1826

Unavailable

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,6.5X9.5X260

92059-1598

$33.38

92059A

TUBE,7X11X240

92059-1635

$33.64

92059B

TUBE,5.3X10.5X210

92190-1134

$32.68

92059C

TUBE,3X7X420

92059-1741

$34.62

92059D

TUBE,3.5X6.5X40

92059-1746

$10.11

92059E

TUBE,3.5X6.5X90

92059-1747

$10.47

92059F

TUBE,3.5X6.5X420

92059-1748

$23.25

92059G

TUBE,3.5X6.5X220

92059-1749

$16.27

92066

PLUG,12X25

92068-006

$4.26

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081A

SPRING

92081-1620

$4.96

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92081D

SPRING,STARTER LEVER

92081-1913

$24.32

223

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

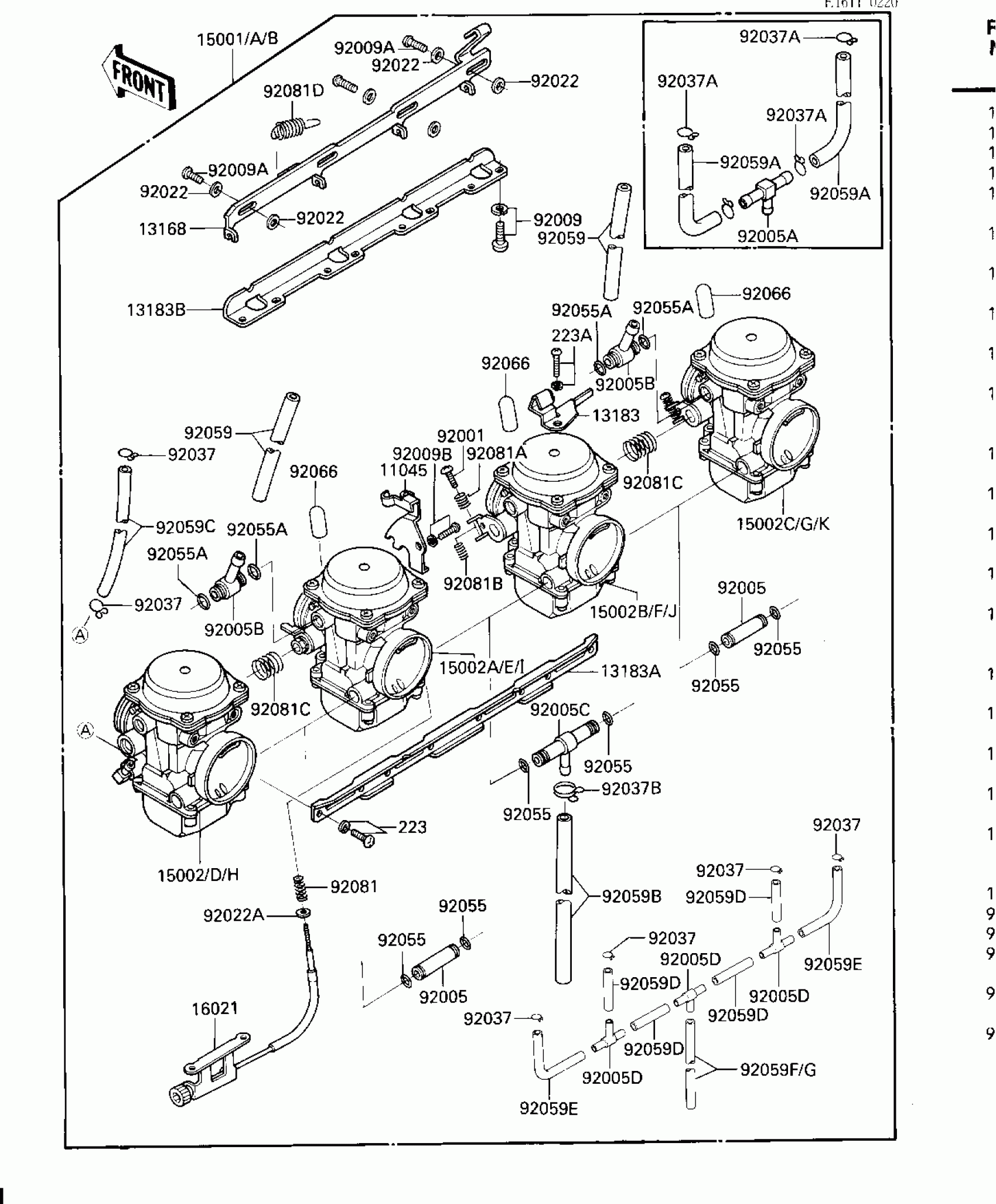

Kawasaki Voyager XII CARBURETOR ASSY Diagram

BRACKET,THROTTLE CABL

LEVER,STARTER

PLATE,STARTER CABLE

PLATE,CARBURTOR STAY,UPP

PLATE,CARBURETOR STAY,LWR,6MM

CARBURETOR-ASSY

CARBURETOR-ASSY (Canada)

CARBURETOR-ASSY

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE (Canada)

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

SCREW-THROTTLE STOP

BOLT,THROTTLE ADJUST

FITTING,FUEL,I-TYPE

FITTING,T-TYPE

FITTING,T-TYPE

FITTING,T-TYPE

FITTING,T-TYPE

SCREW,6X16

SCREW

SCREW,5X10

WASHER,6.1X11X0.8,POLYACETAL

WASHER,PLAIN,STOP SPRING

CLAMP,TUBE

CLAMP,TUBE

CLAMP,FUEL TUBE

RING-O

RING-O

TUBE,6.5X9.5X260

TUBE,7X11X240

TUBE,5.3X10.5X210

TUBE,3X7X420

TUBE,3.5X6.5X40

TUBE,3.5X6.5X90

TUBE,3.5X6.5X420

TUBE,3.5X6.5X220

PLUG,12X25

SPRING,THROTTLE STOP SCREW

SPRING

SPRING,THROTTLE ADJUST LWR

SPRING,THROTTLE ADJUST CNT

SPRING,STARTER LEVER

SCREW-PAN-WS-CROS,5X10

SCREW-PAN-WS-CROS,4X10
