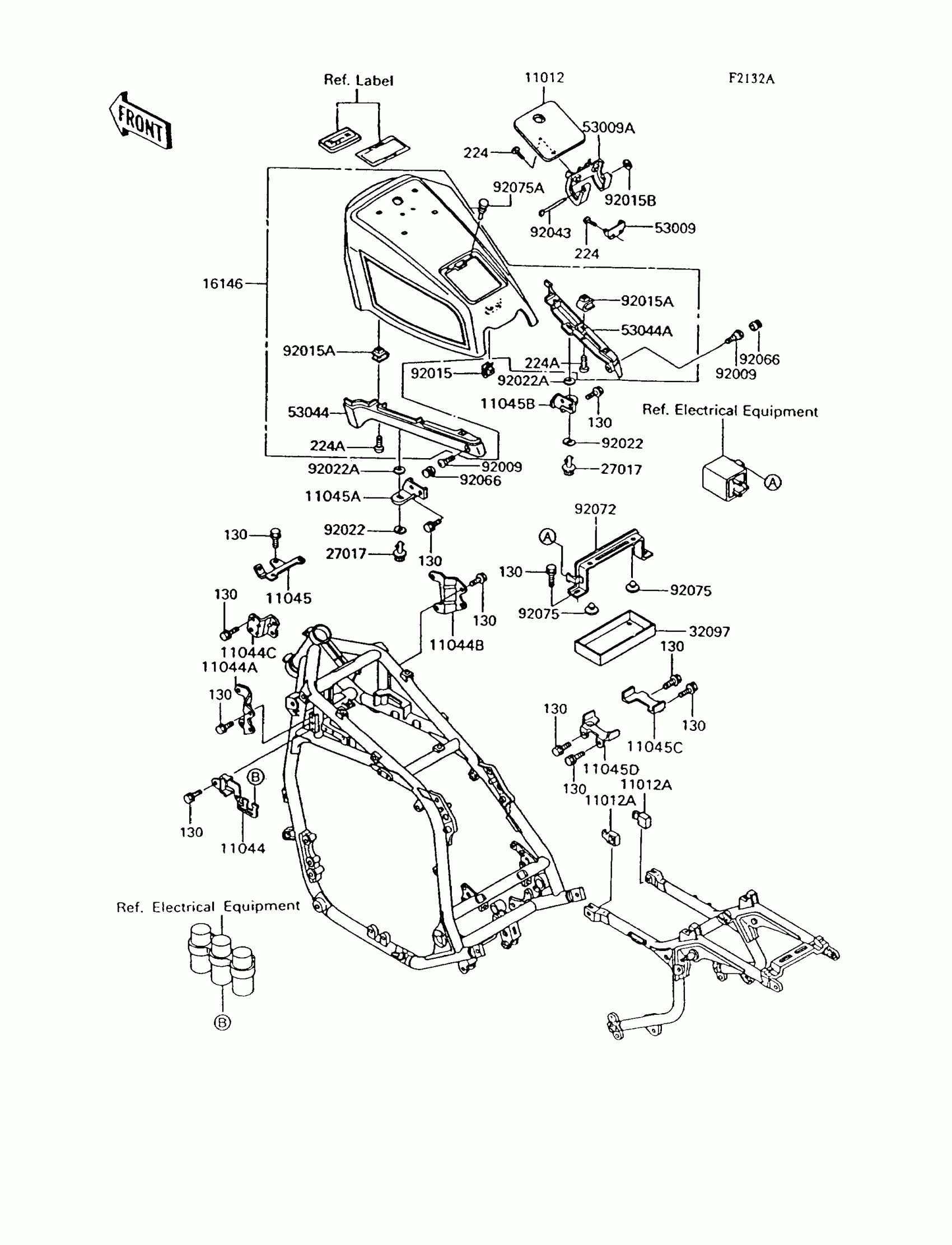

Kawasaki Voyager XII Battery Case(ZG1200-B8/B9) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130B0610

$0.48

224

SCREW-PAN-WP-CROS

224B0512

$1.42

224A

SCREW-PAN-WP-CROS

224B0516

$0.46

11012

CAP,DUMMY TANK,P.T.GREEN

11012-1492-TZ

Unavailable

11012A

CAP

11012-1542

$13.90

11044

BRACKET,RELAY

11044-1683

$18.72

11044A

BRACKET,IGNITION COIL,LH

11044-1684

$13.33

11044B

BRACKET,IGNITION COIL,RH

11044-1685

$13.33

11044C

BRACKET,THERMOSTAT

11044-1686

$10.02

11045

BRACKET,FUSE

11045-1056

$15.89

11045A

BRACKET,DUMMY TANK,LH

11045-1077

$22.23

11045B

BRACKET,DUMMY TANK,RH

11045-1078

$11.79

11045C

BRACKET,BATTERY,RH

11045-1297

$16.06

11045D

BRACKET,BATTERY,LH

11045-1729

Unavailable

16146

COVER-ASSY,DUMMY TANK,GRN/GRN

16146-1082-SX

Unavailable

27017

LOCK,DUMMY TANK

27017-1124

$9.72

32097

CASE-BATTERY

32097-1126

$23.43

53009

HINGE,DUMMY TANK

53009-1060

$6.46

53009A

HINGE,DUMMY TANK CAP

53009-1066

$30.26

53044

TRIM,DUMMY TANK,LH,P.T.GREEN

53044-1138-TZ

Unavailable

53044A

TRIM,DUMMY TANK,RH,P.T.GREEN

53044-1139-TZ

$47.55

92009

SCREW

92009-1258

$5.59

92015

NUT,5MM

92015-1569

$7.62

92015A

NUT,5MM

92015-1573

$6.63

92015B

NUT,PUSH,2.6MM

92015-1576

$3.16

92022

WASHER,WAVE,8MM

92022-1776

$5.11

92022A

WASHER,6.5MM

92022-1808

$4.67

92043

PIN,2.6X88

92043-1306

$4.64

92066

PLUG

92066-1243

$5.90

92072

BAND,BATTERY

92072-1194

$28.61

92075

DAMPER,RUBBER

92075-078

$4.39

92075A

DAMPER,6X10X15

92075-1808

$1.39
