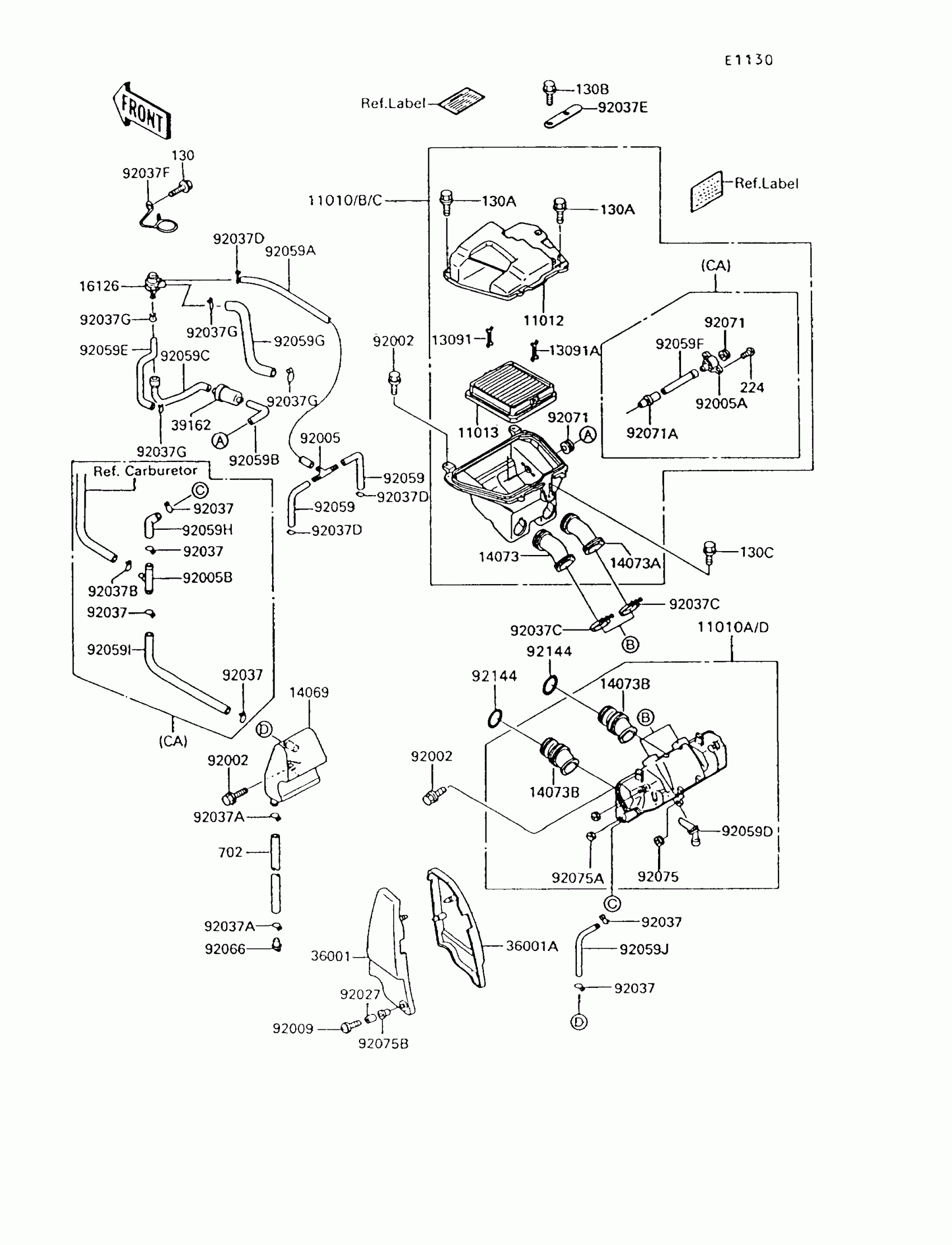

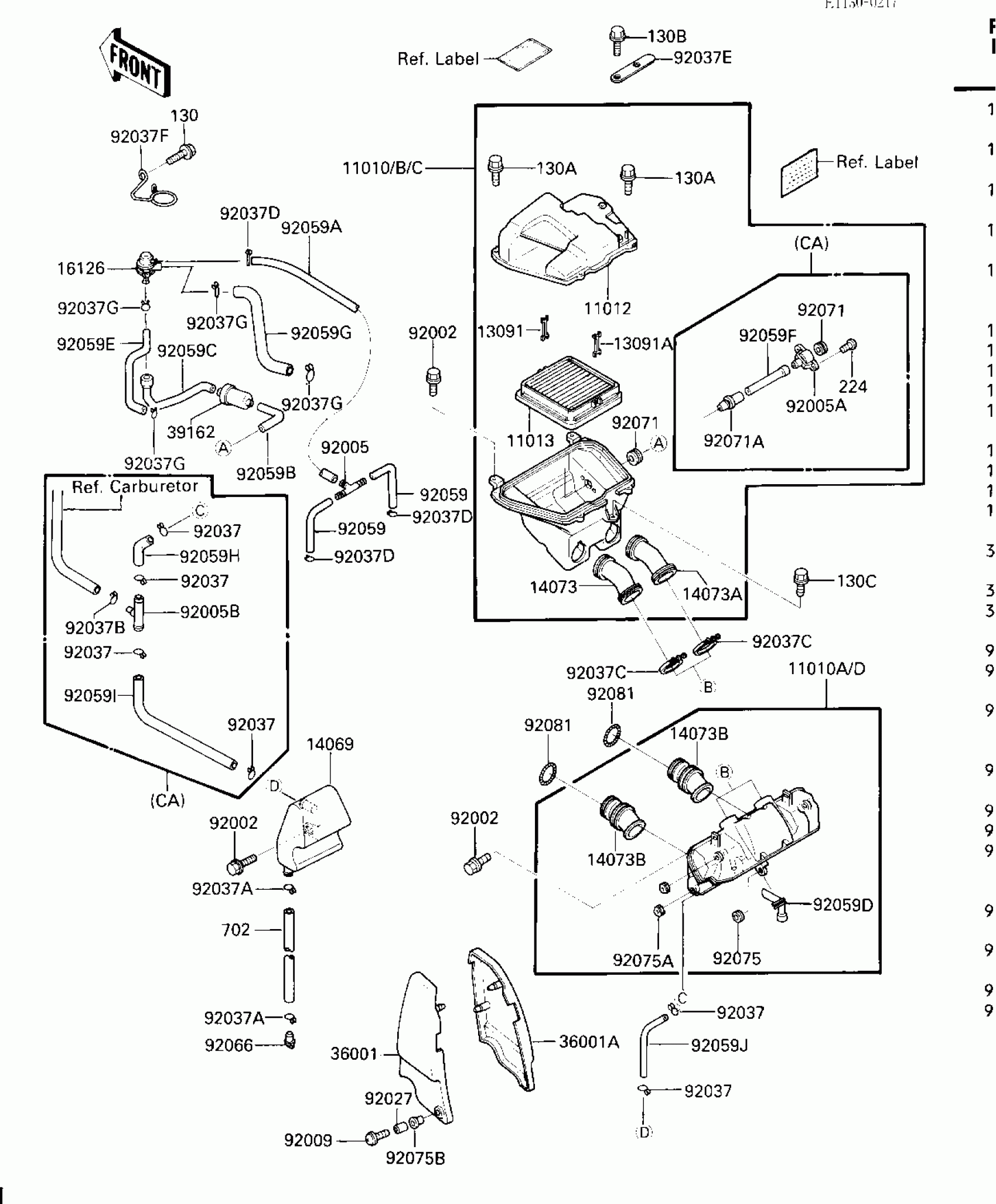

Kawasaki Voyager XII AIR CLEANER Diagram

#

Description
Price

11010

FILTER-ASSY-AIR,UPP

11010-1273

$415.89

11010A

FILTER-ASSY-AIR,LWR

11010-1274

$299.92

11010B

FILTER-ASSY-AIR,UPP

11010-1297

$328.42

11010C

FILTER-ASSY-AIR,UPP (Canada)

11010-1301

Unavailable

11010D

FILTER-ASSY-AIR,LWR

11010-1314

$204.76

11012

CAP,AIR FILTER

11012-1490

$134.45

11013

ELEMENT-AIR FILTER

11013-1137

$49.39

13091

HOLDER,FR

13091-1420

$7.64

13091A

HOLDER,RR

13091-1432

$7.64

14069

BREATHER,TANK

14069-1053

$35.15

14073

DUCT,LH

14073-1241

Unavailable

14073A

DUCT,RH

14073-1242

$23.93

14073B

DUCT,CARBURETOR

14073-1255

$61.19

16126

VALVE,AIR SWITCH

16126-1005

$191.61

36001

COVER-SIDE,AIR FILTER

36001-1334

$95.22

36001A

COVER-SIDE,AIR FILTER

36001-1335

$95.22

39162

SILENCER-INTAKE

39162-1003

$68.27

92002

BOLT,6X16

92002-1136

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1139

$34.16

92005B

FITTING

92005-1149

$23.38

92009

SCREW,6X22

92009-1441

$4.31

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92037

CLAMP-HOSE

92037-1104

$1.45

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,TUBE

92037-1482

Unavailable

92037C

CLAMP

92037-1554

$10.28

92037D

CLAMP

92037-1610

$2.00

92037E

CLAMP

92037-1768

$4.86

92037F

CLAMP

92037-1776

$9.43

92037G

CLAMP,TUBE

92037-213

$4.31

92059

TUBE,VACUUM,LONG

92059-1162

$19.09

92059A

TUBE,VACUUM,LONG

92059-1162

$19.09

92059B

TUBE

92059-1657

$25.03

92059C

TUBE

92059-1658

$29.59

92059D

TUBE

92059-1659

$17.69

92059E

TUBE,AIR SWITCH VALVE

92059-1668

$20.59

92059F

TUBE

92059-1699

$7.91

92059G

TUBE,AIR SWITCH VALVE

92059-1703

$19.92

92059H

TUBE

92059-1742

Unavailable

92059I

TUBE

92059-1743

$9.72

92059J

TUBE,7X12X230

92059-1750

$12.96

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET,AIR FILTER

92071-1042

$7.27

92071A

GROMMET

92071-1132

$8.68

92075

DAMPER,CLEANER COVER

92075-1126

$8.94

92075A

DAMPER

92075-1470

$7.40

92075B

RUBBER,FENDER COVER

92075-174

$4.78

92081

SPRING,AIR FILTER DUCT

92144-1771

$12.95

130

BOLT

130B0612

$0.67

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

130B

BOLT-FLANGED,6X10

130B0610

$0.48

130C

BOLT,FLANGED,6X14

130G0614

$1.17

224

SCREW-PAN-WP-CROS

224C0614

$3.84

702

TUBE-RUBBER,7X10X120

702A07120

$13.38
