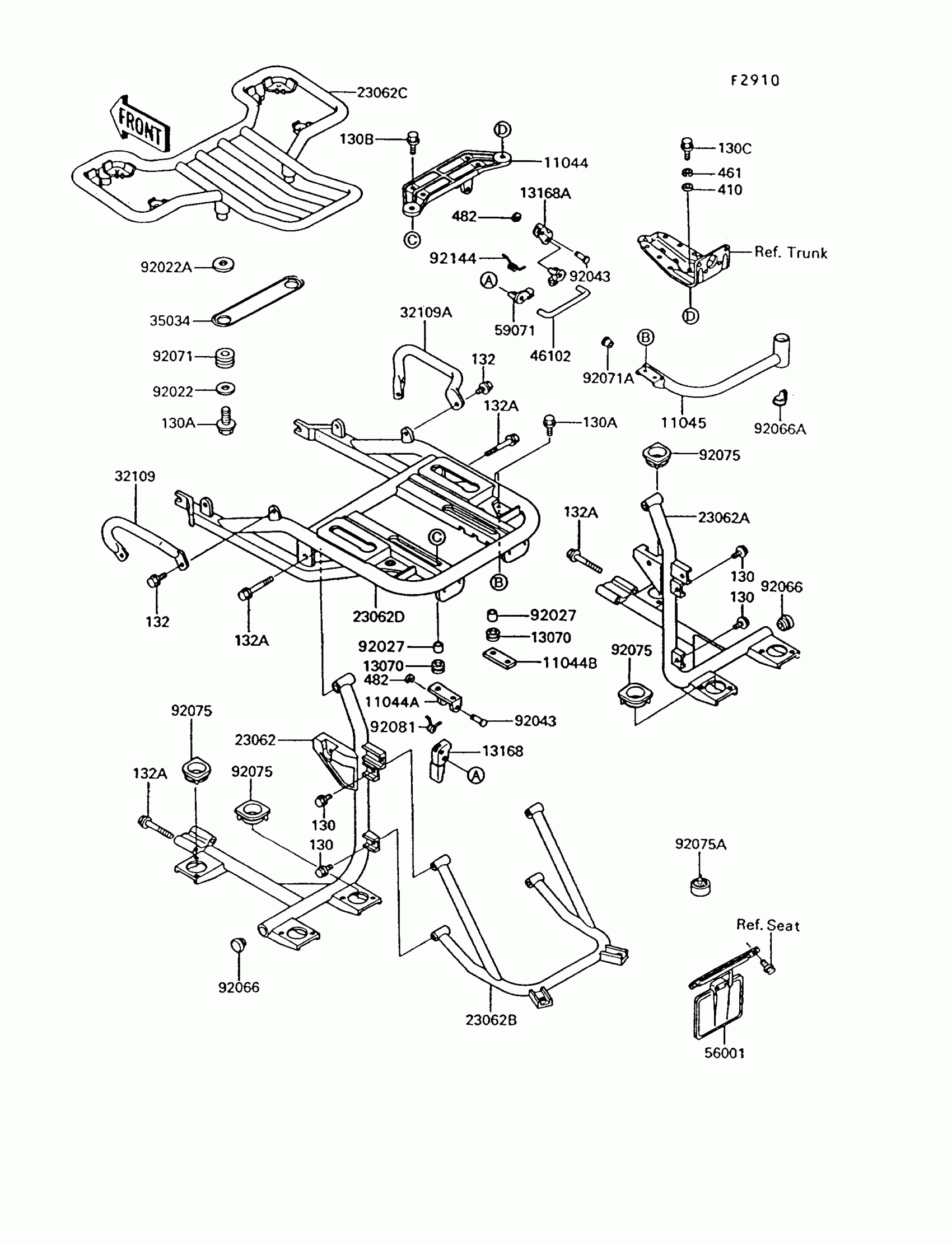

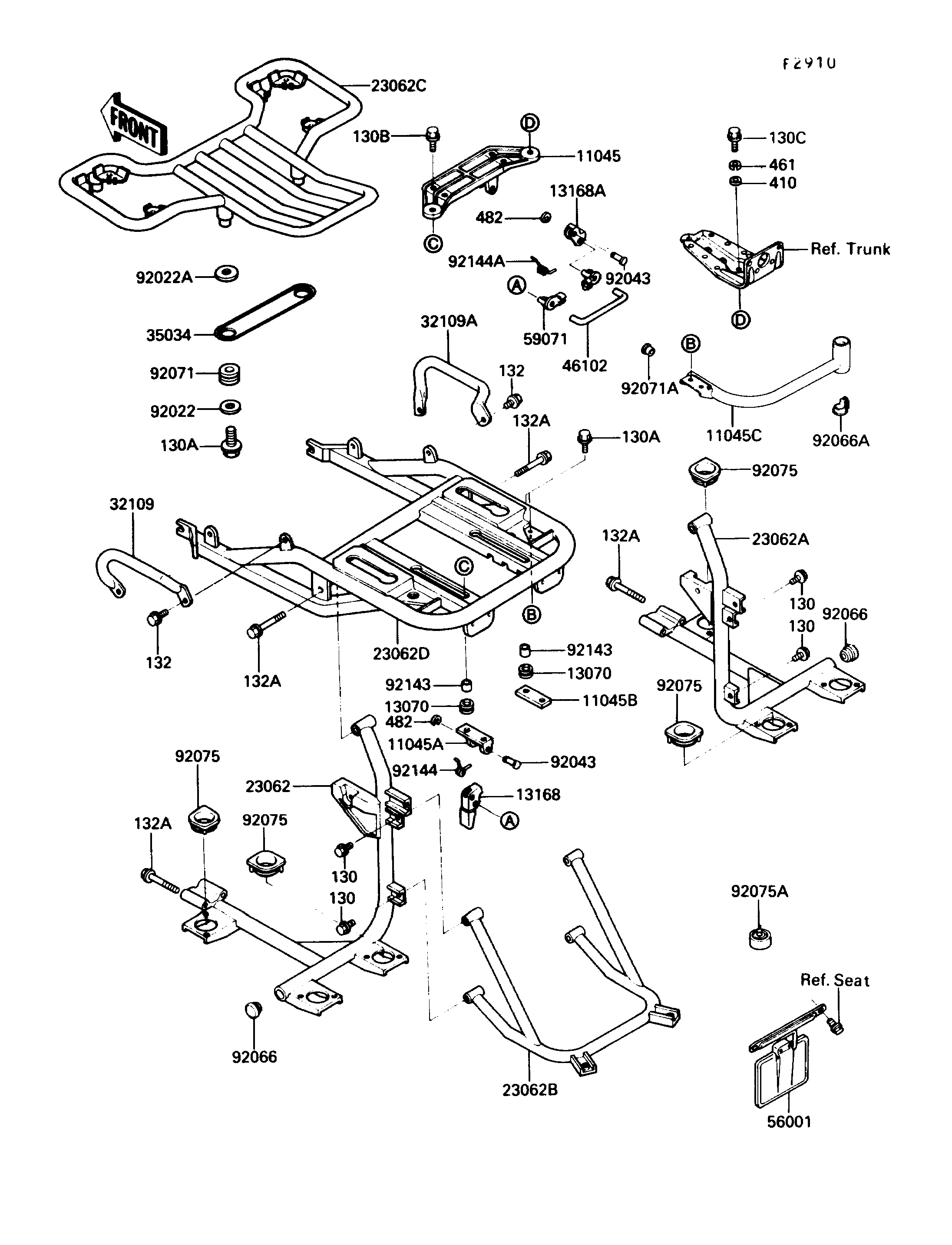

Kawasaki Voyager XII Accessory(Trunk Bracket) Diagram

#

Description
Price

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT-FLANGED,6X10

130C0610

$3.84

130B

BOLT-FLANGED,6X20

130C0620

$6.86

130C

BOLT-FLANGED,8X20

130J0820

$0.83

132

BOLT-FLANGED-SMALL,8X16

132E0816

$5.23

132A

BOLT-FLANGED-SMALL,8X55

132E0855

$6.52

410

WASHER-PLAIN-SMALL,8MM,BLACK

410F0800

$4.86

461

WASHER-SPRING,8MM,BLACK

461K0800

$2.33

482

CIRCLIP-TYPE-E,4MM

482L4000

$0.67

11045

BRACKET,TRUNK

11044-1637

$93.64

11045A

BRACKET,TRUNK,LH

11044-1676

$21.83

11045B

BRACKET,TRUNK,RH

11044-1677

$12.72

11045C

BRACKET,ANTENNA

11045-1920

$108.78

13070

GUIDE

13070-1151

$6.50

13168

LEVER

13168-1307

$10.87

13168A

LEVER

13168-1329

$8.59

23062

BRACKET-COMP,LH

23062-1060

$389.74

23062A

BRACKET-COMP,RH

23062-1061

$389.74

23062B

BRACKET-COMP,TAIL

23062-1062

$215.79

23062C

BRACKET-COMP,REAR SPEAKER

23062-1073

$537.24

23062D

BRACKET-COMP,CNT

23062-1074

$879.57

32109

GRIP-FRAME,LH

32109-1137

$37.79

32109A

GRIP-FRAME,RH

32109-1138

$37.79

35034

REINFORCE,TRUNK COVER

35034-1220

$25.98

46102

ROD

46102-1182

$5.96

56001

MIRROR-ASSY,VANITY

56001-1268

$115.97

59071

JOINT

59071-1103

$8.68

92022

WASHER,6.5X26X1,BLACK

92022-1248

$6.56

92022A

WASHER,CAP TYPE

92022-1638

$9.89

92043

PIN,6X28

92043-1308

$6.56

92066

PLUG

92066-1220

$4.96

92066A

PLUG

92066-1287

$5.90

92071

GROMMET

92071-1131

$7.77

92071A

GROMMET

92071-1156

$5.40

92075

DAMPER

92075-1840

$10.53

92075A

DAMPER,MIRROR STOPPER

92075-1844

$10.19

92143

COLLAR,6.8X10X9.5

92027-1983

$3.54

92144

SPRING,RETURN

92081-1967

$5.40

92144A

SPRING

92144-1045

$6.46
