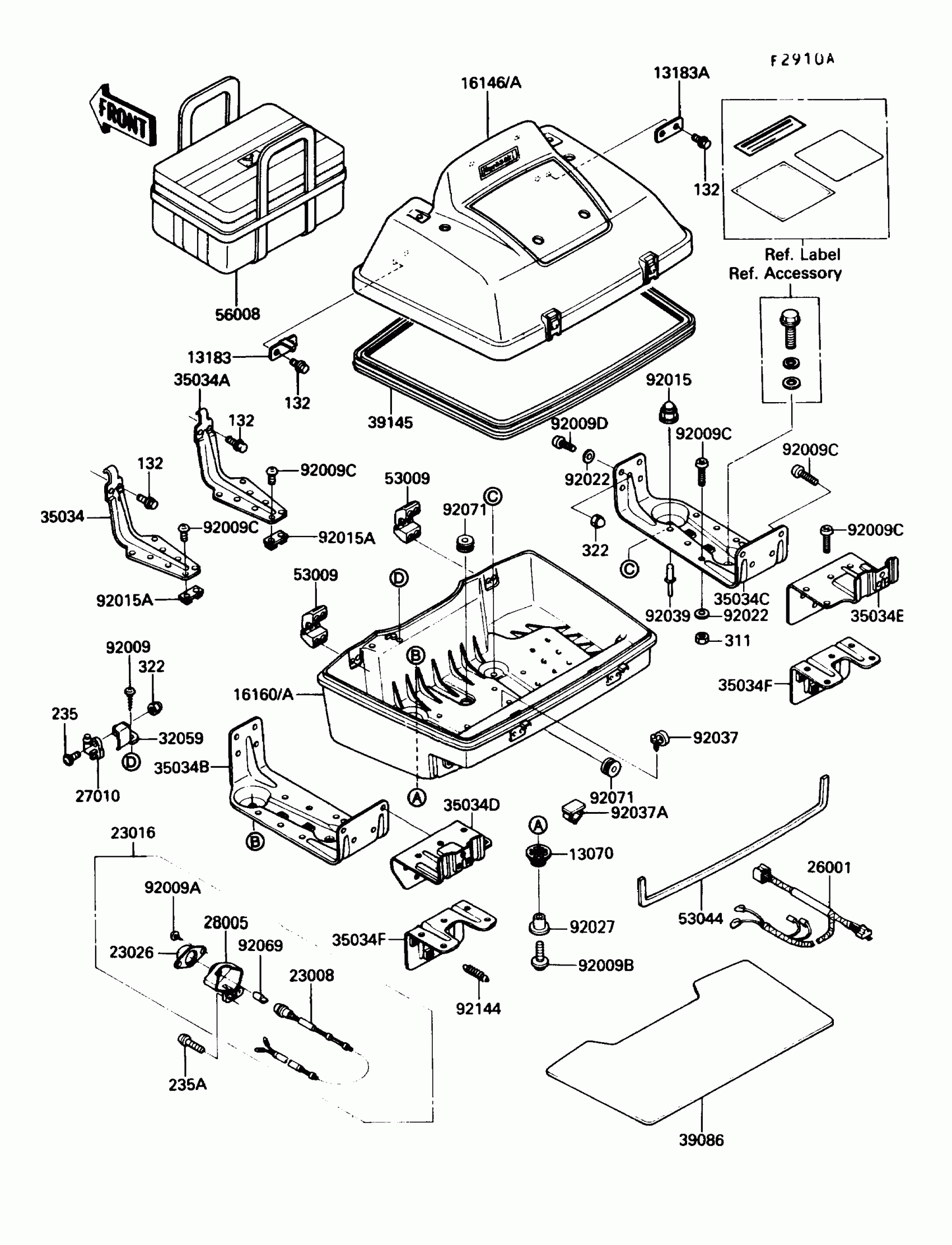

Kawasaki Voyager XII Accessory(Trunk) Diagram

#

Description
Price

13070

GUIDE

13070-1149

$8.81

13183

PLATE,HINGE,LH

13169-1635

$9.67

13183A

PLATE,HINGE,RH

13169-1636

$5.24

16146A

COVER-ASSY,TRUNK,BRONCO/SILVER

16146-5028-GG

$937.67

16160

BODY,TRUNK,M.C.SILVER

16160-1140-GA

$876.59

23008

SOCKET-ASSY,TRUNK ROOM LAMP

23008-1295

Unavailable

23016

LAMP-ASSY,TRUNK ROOM

23016-1066

$73.40

23026

LENS,LAMP

23026-1054

$9.28

26001

HARNESS,TRUNK

26001-1758

$38.78

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

$40.69

28005

BODY-LAMP,TRUNK ROOM

28005-1054

$13.55

32059

BRACKET-SWITCH

32059-1067

$8.17

35034

REINFORCE,HINGE,LH

35034-1213

$51.29

35034A

REINFORCE,HINGE,RH

35034-1214

$51.29

35034B

REINFORCE,BAG,LH

35034-1215

$93.72

35034C

REINFORCE,BAG,RH

35034-1216

$93.72

35034D

REINFORCE,TAIL,LH

35034-1217

$46.97

35034E

REINFORCE,TAIL,RH

35034-1218

$39.06

35034F

REINFORCE,TAIL,LWR

35034-1219

$38.78

39086

PAD-STORAGE,TRUNK

39086-1051

$49.61

39145

TRIM-SEAL,TRUNK

39145-1087

$74.94

53009

HINGE,TRUNK

53009-1071

$71.53

53044

TRIM,TAIL LAMP

53044-1142

$12.72

56008

BAG,INNER

56008-1060

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92009A

SCREW,TAPPING,4X12

92009-1381

$2.97

92009B

SCREW,6X28,BLACK

92009-1400

$5.52

92009C

SCREW,4X12

92009-1448

$4.35

92009D

SCREW,4X10

92009-1489

$4.67

92015

NUT,LOCK 6MM

92015-1262

$5.52

92015A

NUT,PLATE,4MM

92015-1620

$8.17

92022

WASHER,4.3X12X0.8

92022-1830

$3.16

92027

COLLAR

92027-195

$6.57

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92037A

CLAMP,HARNESS

92037-1793

$8.19

92039

RIVET

92039-1150

$3.92

92069

BULB,12V 3CP

92069-1066

$6.67

92071

GROMMET

92071-1136

$7.38

132

BOLT-FLANGED-SMALL,5X12

132J0512

$3.41

235

SCREW-PAN-WP-CROS

235C0414

$3.00

235A

SCREW-PAN-WP-CROS

235C0430

$4.35

311

NUT-HEX

311C0400

$0.62

322

NUT-CAP,4MM

322C0400

$3.00

92144

SPRING,HARNESS GUIDE

92081-1954

$17.19
