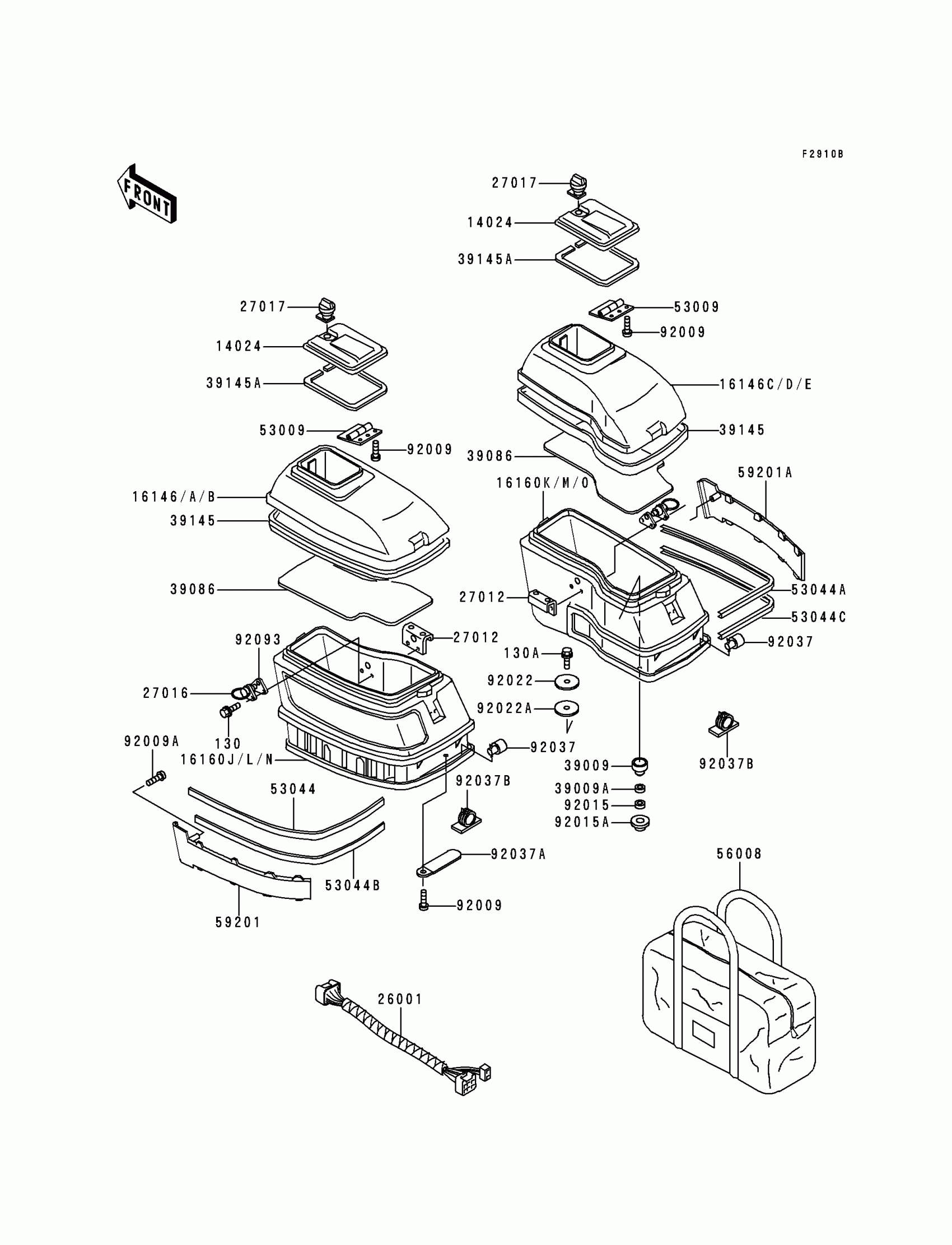

Kawasaki Voyager XII Accessory(Side Back) Diagram

#

Description
Price

14024

COVER,SIDE BAG

14024-1178

$37.36

16146A

COVER-ASSY,SIDE BAG,LH,GRAY

16146-1063-SL

Unavailable

16146D

COVER-ASSY,SIDE BAG,RH,GRAY

16146-1064-SL

Unavailable

16160N

BODY,SIDE BAG,LH,SILVER/GRAY

16160-5032-8Y

Unavailable

16160O

BODY,SIDE BAG,RH,SILVER/GRAY

16160-5033-8Y

Unavailable

26001

HARNESS,SIDE BAG

26001-1757

$21.58

27012

HOOK,SIDE BAG

27012-1339

$33.69

27016

LOCK-ASSY,BAG

27016-1054

$86.27

27017

LOCK,BAG

27017-1126

$49.23

39009

BLOCK-MOUNT,BAG

39009-1051

$20.97

39009A

BLOCK-MOUNT,BAG

39009-1052

$5.90

39086

PAD-STORAGE,BAG

39086-1052

$23.96

39145

TRIM-SEAL,SIDE BAG

39145-1068

$45.01

39145A

TRIM-SEAL,SIDE BAG

39145-1071

$9.33

53009

HINGE,SIDE BAG

53009-1062

$35.08

53044

TRIM,SIDE BAG,UPP,LH

53044-1143

$47.89

53044A

TRIM,SIDE BAG,UPP,RH

53044-1144

$47.89

53044B

TRIM,SIDE BAG,LWR,LH

53044-1145

$52.58

53044C

TRIM,SIDE BAG,LWR,RH

53044-1146

$43.70

56008

BAG

56008-1055

$161.42

59201

BUMPER,LH

59201-1051

$37.47

59201A

BUMPER,RH

59201-1052

$37.55

130

BOLT-FLANGED,6X16

130C0616

$0.63

130A

BOLT-FLANGED

130C0630

Unavailable

92009

SCREW,TAPPING,4X10

92009-1040

$3.69

92009A

SCREW,TAPPING,4X14

92009-1429

$3.89

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,BLOCK MOUNT,24MM

92015-1628

$7.69

92022

WASHER,7X28X1.6,BLACK

92022-1392

$2.61

92022A

WASHER,5X28X1

92022-1813

$4.77

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92037A

CLAMP,HARNESS

92037-1726

$5.96

92037B

CLAMP,HARNESS

92037-1793

$8.19

92093

SEAL,LOCK

92093-1209

$6.04
