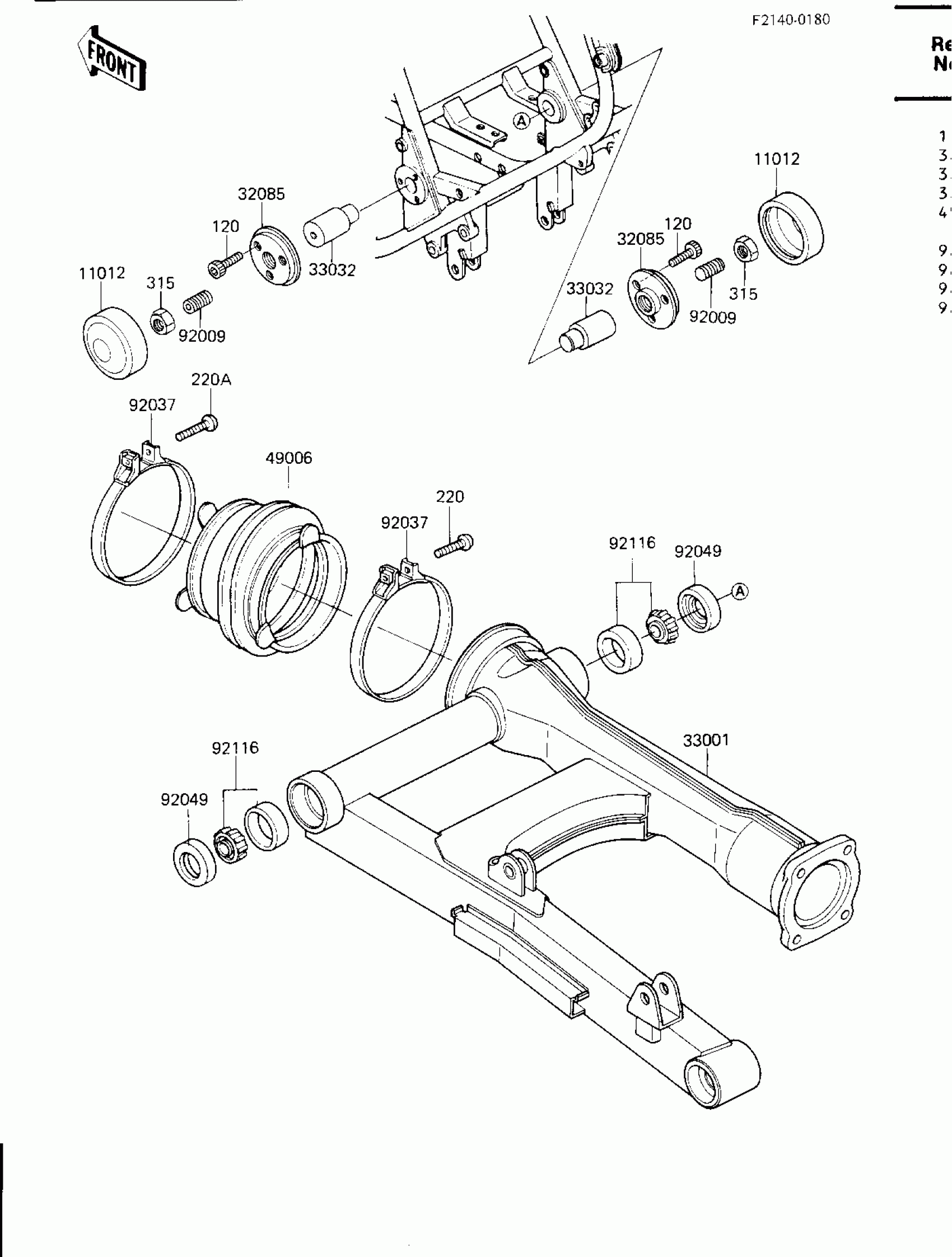

Kawasaki Voyager SWING ARM Diagram

Description

Price

11012

CAP,SWING ARM

11012-1282

Unavailable

32085

STOPPER,SWING ARM

32085-1116

$39.46

33001

ARM-COMP-SWING

33001-1162

$428.63

33032

SHAFT-SWING ARM

33032-1036

$58.27

49006

BOOT,SWING ARM

49006-1020

Unavailable

92009

SCREW,SET,14X22

92009-1087

$8.96

92037

CLAMP,SWING ARM BOOT

92037-1097

Unavailable

92049

SEAL-OIL,26406

92049-1030

$9.73

92116

BEARING-ROLLER,4T30203E1

92116-1001

$38.04

120

BOLT-SOCKET,8X20

120S0820

$4.15

220

SCREW-PAN-CROS

220B0420

$2.49

220A

SCREW-PAN-CROS

220B0430

$0.77

315

NUT-HEX-FINE,14MM

315B1400

$2.03
