Description

Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$32.66

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

14024

COVER,MUFFLER,LH

14025-1824

Unavailable

14024A

COVER,MUFFLER,RH

14025-1825

Unavailable

18002B

BODY-COMP-MUFFLER,LH

18002-1638

$580.65

18002C

BODY-COMP-MUFFLER,RH

18002-1639

$580.65

18069

HOLDER-EXHAUST PIPE

18069-1010

Unavailable

39178

MANIFOLD-COMP-EXHAUST,LH

39178-1022

$611.28

39178A

MANIFOLD-COMP-EXHAUST,RH

39178-1023

$608.24

92009

SCREW,6X10,W/WASHER

92009-1098

$4.22

92015

NUT,6MM

92015-1365

$5.00

92015A

NUT,LOCK,10MM

92019-021

$6.11

92027

COLLAR,L=14.5

92027-1142

$5.00

92037

CLAMP,POWER CHAMBER

92037-1228

$19.11

92037A

CLAMP,MUFFLER COVER

92037-1465

Unavailable

92075

DAMPER

92075-015

$5.00

114

BOLT-SMALL,8X25

114N0825

Unavailable

130

BOLT-FLANGED,10X30

130J1030

$6.10

223

SCREW-PAN-WS-CROS

223X0630

$2.53

411

WASHER-PLAIN,8MM

411D0800

$3.09

461

WASHER SPRING 8MM

461S0800

$0.65

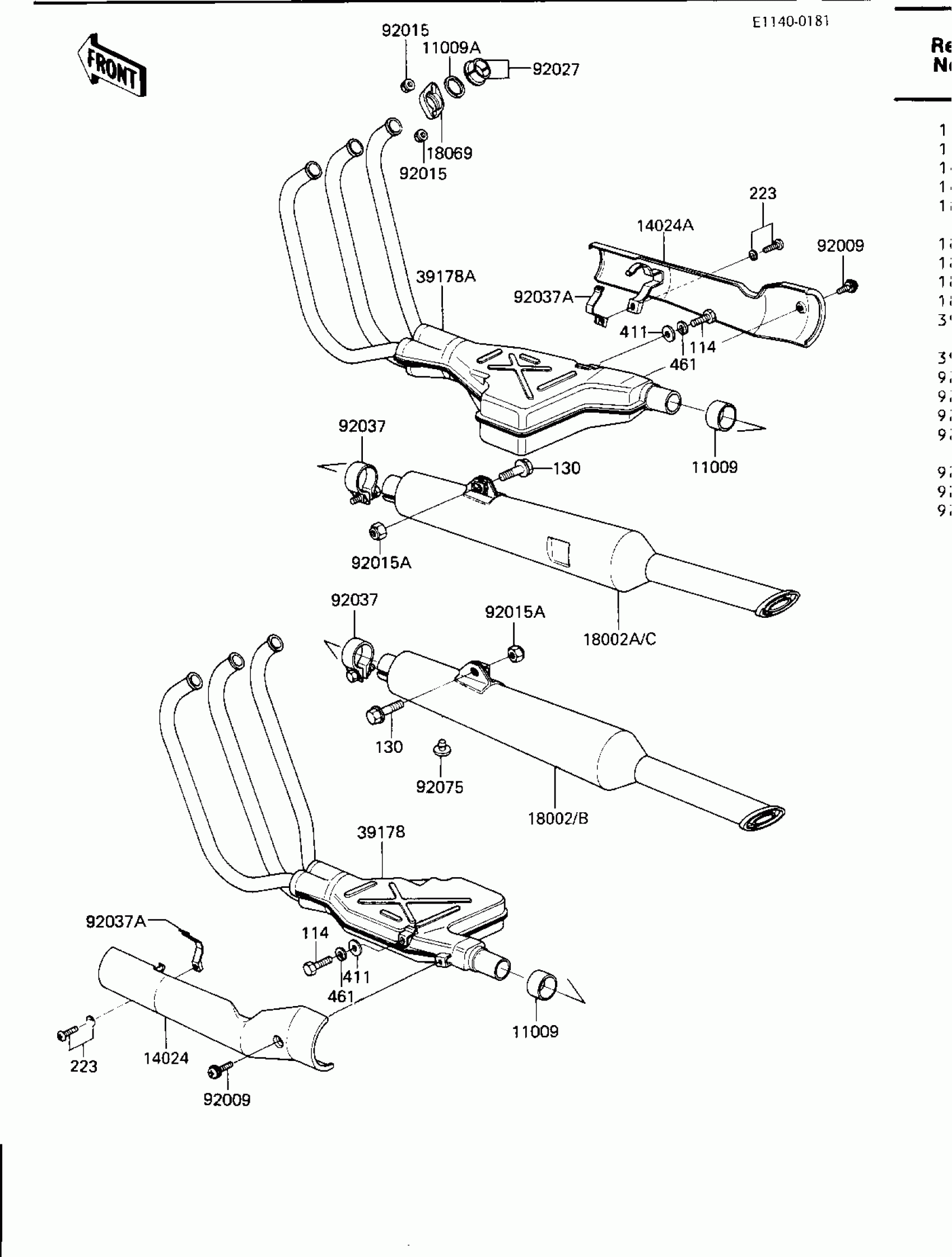

Kawasaki Voyager MUFFLERS Diagram

GASKET,EXHAUST PIPE CONNECTING

GASKET,EXHAUST PIPE H

COVER,MUFFLER,LH

COVER,MUFFLER,RH

BODY-COMP-MUFFLER,LH

BODY-COMP-MUFFLER,RH

HOLDER-EXHAUST PIPE

MANIFOLD-COMP-EXHAUST,LH

MANIFOLD-COMP-EXHAUST,RH

SCREW,6X10,W/WASHER

NUT,6MM

NUT,LOCK,10MM

COLLAR,L=14.5

CLAMP,POWER CHAMBER

CLAMP,MUFFLER COVER

DAMPER

BOLT-SMALL,8X25

BOLT-FLANGED,10X30

SCREW-PAN-WS-CROS

WASHER-PLAIN,8MM

WASHER SPRING 8MM
