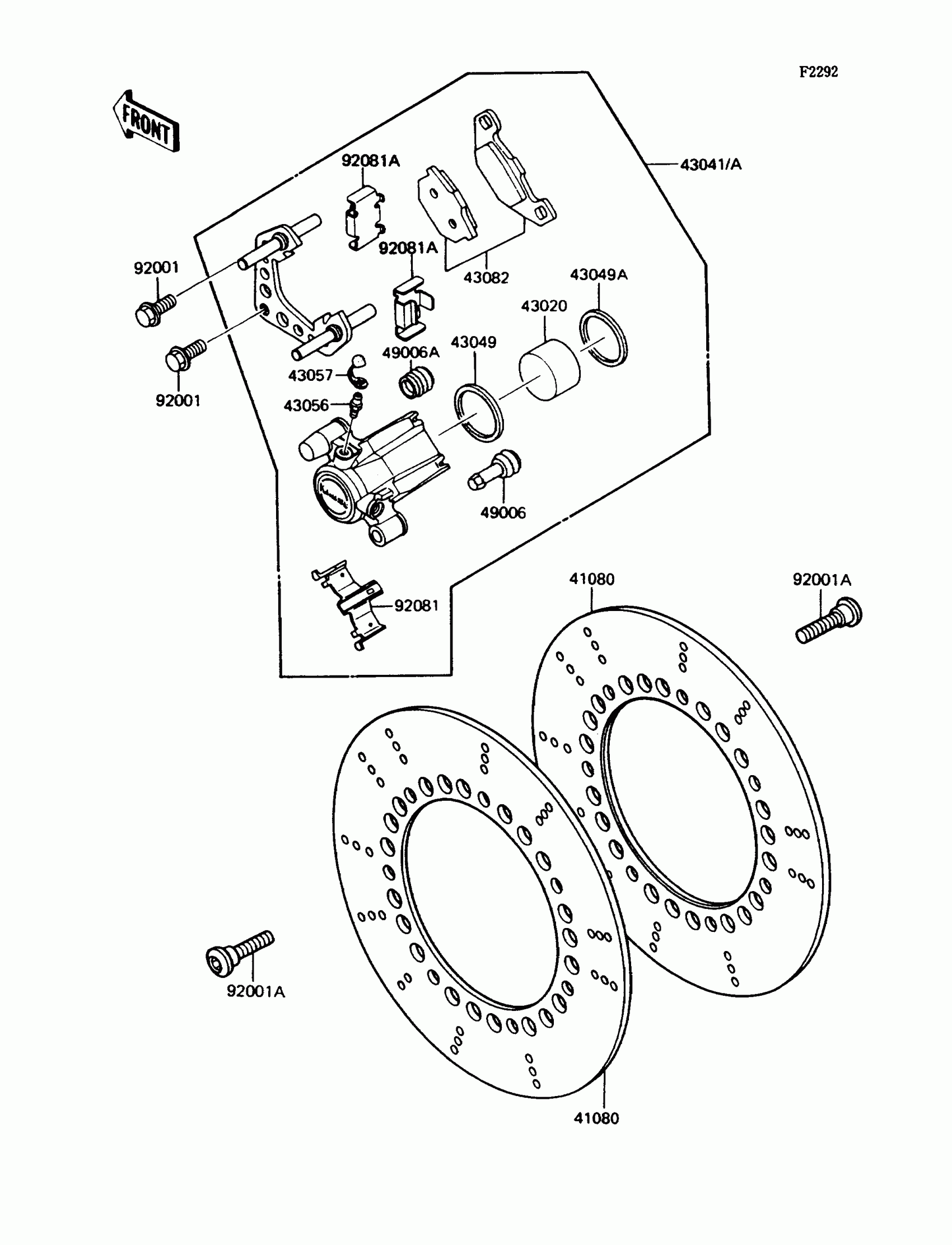

Kawasaki Voyager Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1125

$697.99

43020

PISTON-COMP-BRAKE

43020-1051

$105.36

43041

CALIPER-ASSY,FR,LH

43041-1176

$588.59

43041A

CALIPER-ASSY,FR,RH

43041-1177

$588.59

43049

PACKING,PISTON SEAL

43049-002

$13.90

43049A

PACKING,PISTON

43049-1028

$12.65

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1029

$58.88

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,FLANGED,10X41

92001-1732

$4.06

92001A

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80
