Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1060

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1061

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1052

Unavailable

12053

GUIDE-CHAIN,CAM,FR

12053-1024

Unavailable

12053A

GUIDE-CHAIN,CAM,RR

12053-1025

Unavailable

12053B

GUIDE-CHAIN,TENSIONER

12053-1028

Unavailable

13116

ROD-PUSH,TENSIONER

13116-1113

Unavailable

14020

RETAINER,TENSIONER

14020-1002

$17.55

16087

VALVE-CHECK

16087-1051

$21.98

21053

SPROCKET-ASSY,CAM CHAIN

21053-1004

Unavailable

39115

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$32.94

92001

BOLT,BANJO,L=13.5

92060-008

$16.72

92001A

BOLT,BANJO,L=16

92060-013

$6.52

92005

FITTING,BANJO

92061-009

$15.74

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92027

COLLAR,TENSIONER

92027-1273

$32.58

92037

CLAMP,TUBE

92037-1619

$6.64

92057

CHAIN,CAMSHAFT,75-010X158L

92057-1018

Unavailable

92059

TUBE,5X10X110

92059-1520

$11.64

92075

DAMPER,IDLER SHAFT

92075-232

$5.72

92081

SPRING,TENSIONER

92081-1105

$4.55

120

BOLT-SOCKET

120Z0625

$4.65

670

O RING,22MM

670B2022

$4.69

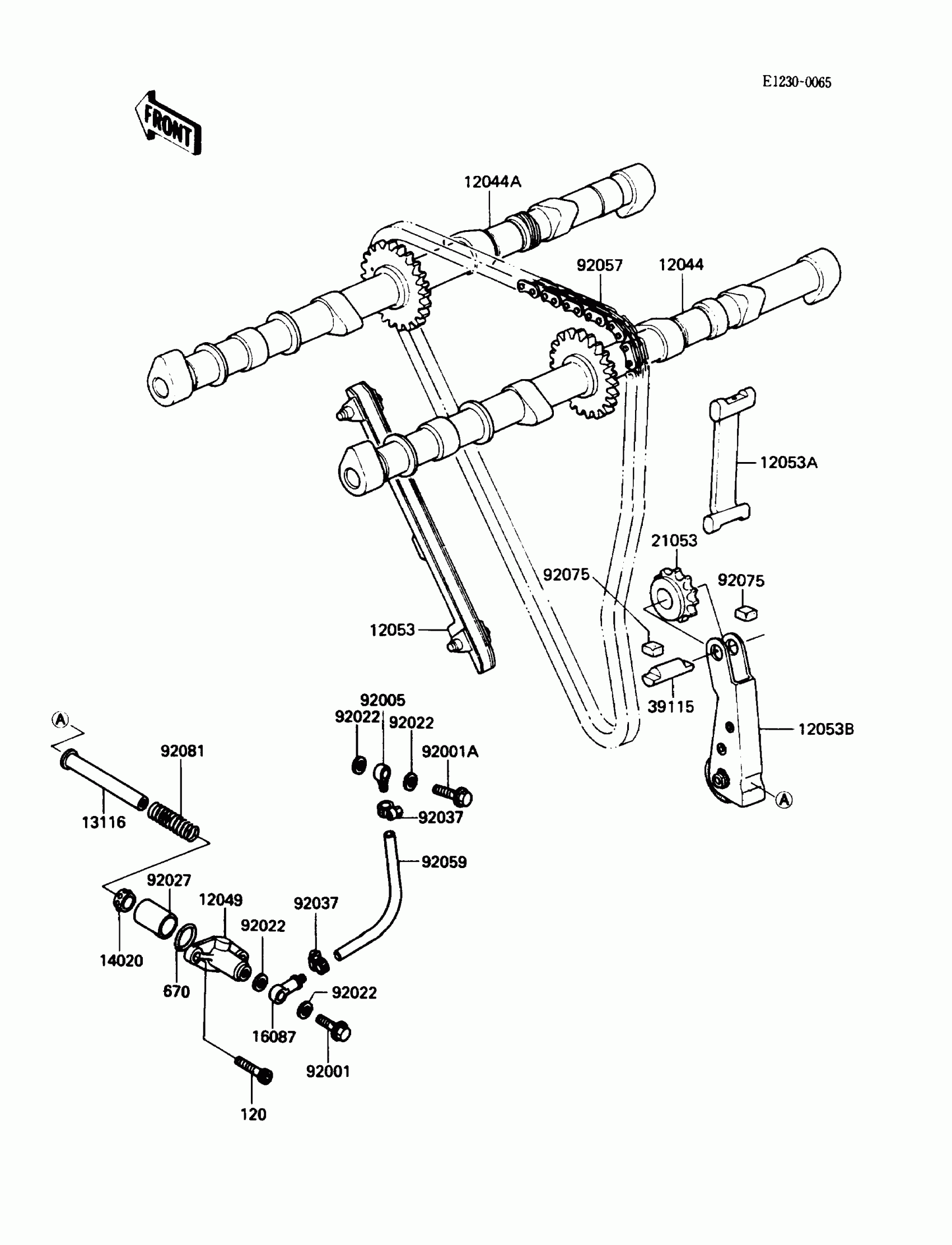

Kawasaki Voyager Camshaft(s)/Tensioner Diagram

CAMSHAFT-VALVE,INTAKE

CAMSHAFT-VALVE,EXHAUST

TENSIONER,CAM CHAIN

GUIDE-CHAIN,CAM,FR

GUIDE-CHAIN,CAM,RR

GUIDE-CHAIN,TENSIONER

ROD-PUSH,TENSIONER

RETAINER,TENSIONER

VALVE-CHECK

SPROCKET-ASSY,CAM CHAIN

SHAFT-IDLER,GUIDE ROLLAR

BOLT,BANJO,L=13.5

BOLT,BANJO,L=16

FITTING,BANJO

WASHER OIL PUMP BANJO

COLLAR,TENSIONER

CLAMP,TUBE

CHAIN,CAMSHAFT,75-010X158L

TUBE,5X10X110

DAMPER,IDLER SHAFT

SPRING,TENSIONER

BOLT-SOCKET

O RING,22MM
